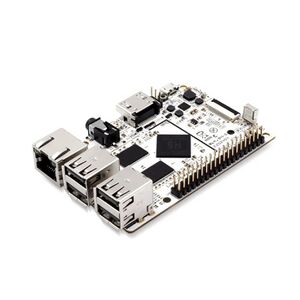

Libre Computer Tritium H5
From TechInfoDepot
Jump to navigationJump to search
| Single-board Computer | |||||||||||||||||
|
| |||||||||||||||||
| Homepage | Product page | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WikiDevi.wi-cat.ru | Libre Computer Tritium H5 | ||||||||||||||||
| 3rd Party Firmware | |||||||||||||||||
| dd-wrt | Status Unknown | ||||||||||||||||
| OpenWrt | Supported | ||||||||||||||||
| Tomato any flavor | Incompatible | ||||||||||||||||
| Gargoyle | Status Unknown | ||||||||||||||||
| Platform | |||||||||||||||||
| Brand • Model • Rev | Libre Computer ALL-H3-CC Tritium (H5) | ||||||||||||||||
| Type | single-board computer | ||||||||||||||||
| Series | Tritium | ||||||||||||||||
| CPU1 | Allwinner H5 | ||||||||||||||||
| CPU1 Type | ARMv8-A Cortex-A53 | ||||||||||||||||
| CPU1 Speed | 1.0 GHz ( 4 cores ) | ||||||||||||||||
| Flash1 Chip | Brand? Model? | ||||||||||||||||
| Flash1 Size | 0 MiB 0 B <br />0 Kib <br />0 KiB <br />0 Mib <br />0 GiB <br /> (eMMC 4.1 module socket,) | ||||||||||||||||
| RAM1 Size | 2 GiB 2,048 MiB <br />2,147,483,648 B <br />16,777,216 Kib <br />2,097,152 KiB <br />16,384 Mib <br /> (DDR3 SDRAM) | ||||||||||||||||
| RAM1 Chip | SK hynix H5TQ4G63CFR-RDC x 4 | ||||||||||||||||
| ETH chip1 | Allwinner H5 | ||||||||||||||||
| Ethernet Port Count | 1-100MbE-LAN | ||||||||||||||||
| Wired Standard | IEEE 802.3i/3u | ||||||||||||||||
|
| |||||||||||||||||
| Stock bootloader | U-Boot 2018.05 | ||||||||||||||||
| Stock FW OS | Linux 4.19.31 Ubuntu 18.04 | ||||||||||||||||
| Expansion IF types | USB 2.0, Micro SD Card slot, HDMI 1.4 | ||||||||||||||||
| USB ports | 4 | ||||||||||||||||
| SD/MMC Slots | 1 | ||||||||||||||||
| HDMI | 1 | ||||||||||||||||
| USB Hub Compatible | Untested | ||||||||||||||||
| Power | 5 VDC, 2 A | ||||||||||||||||
| Connector type | USB Female (Micro-B) | ||||||||||||||||
| Serial Port (UART) | yes, 3-pin header, populated, 3.3V TTL, (115200 8N1), | ||||||||||||||||
|
Flags: | |||||||||||||||||
|
Additional chips | |||||||||||||||||
| Other | |||||||||||||||||
|
| |||||||||||||||||
| 3rd Party Firmware Support |
Android 7.1, Armbian, Debian , OpenWrt • (List | Dev | DLs) | ||||||||||||||||
| Retail | |||||||||||||||||
| (Est.) release date | January 2018 | ||||||||||||||||
| (Est.) initial retail price (in USD): | $29 | ||||||||||||||||
| ASIN |
B07D4KTRWR | ||||||||||||||||
| |||||||||||||||||
For a list of all currently documented Allwinner SoC's with specifications, see Allwinner.
For a list of all currently documented Libre Computer devices with specifications, see Libre Computer.
Overview
"Libre Computer Board
ALL-H3-CC-V1.0-A" is silkscreened on the board near the 40-pin GPIO connector.
Hardware specification
- CPU: Allwinner H5 @1.0GHz Quad-Core (ARM Cortex-A53)
- GPU: Mali-450 (OpenGL ES 2.0, OpenVG 1.1)
- Memory: 2GB (DDR3) SDRAM • SK hynix
- Onboard Storage: eMMC 4.1 module socket,
- Ports: 1x FE LAN, 4x USB 2.0 ports
Flashing
| NOTE: During configuration or flashing a device, the only things that should be hooked to the device is the computer and power. |
Flashing OpenWrt
OpenWrt Target: sunxi
OpenWrt Subtarget: cortexa53
OpenWrt Package architecture: aarch64_cortex-a53
Support started version: 21.02.0
Current supported version: 24.10.2
OpenWrt Subtarget: cortexa53
OpenWrt Package architecture: aarch64_cortex-a53
Support started version: 21.02.0
Current supported version: 24.10.2
Please insert instructions here
Links of Interest
- ALL-H3-CC (Tritium) on Wikipedia
- Libre Computer Board ALL-H3-CC on SunXi
- Tritium: Quad Core ARM Computer with Android/Linux for $9+ on Kickstarter
- $9+ Libre Computer Tritium Allwinner H2+/H3/H5 SBCs Leverage Raspberry Pi 3 Form Factor on CNX|Software
See also
Models
- Libre Computer La Frite (1GB) (AML-S805X-AC) • 1/2GB • Amlogic S805X
- Libre Computer Le Potato (2GB) (AML-S905X-CC) • 2GB, 64-bit, 4K Media
- Libre Computer Renegade (1GB) (ROC-RK3328-CC) • 1/2GB, GbE, USB 3.0
- Libre Computer Tritium H5 (ALL-H3-CC H5) • 2GB • PPage
- Libre Computer Tritium H3 (ALL-H3-CC H3) • 1GB • PPage
- Libre Computer Tritium IoT (ALL-H3-CC H2+) • 512MB • PPage
ALL-H3-CC (Tritium)
| Variant | Tritium IoT (512MB) ALL-H3-CC H2+ |
Tritium H3 (1GB) ALL-H3-CC H3 |
Tritium H5 (2GB) ALL-H3-CC H5 |
|---|---|---|---|
| CPU | Allwinner H2+ 4x ARM (Cortex-A7) |
Allwinner H3 4x ARM (Cortex-A7) |
Allwinner H5 4x ARM (Cortex-A53) |
| GPU | 1G + 2P ARM Mali-400 OpenGL ES 2.0, OpenVG 1.1 |
1G + 2P ARM Mali-400 OpenGL ES 2.0, OpenVG 1.1 |
2G + 4P ARM Mali-450 OpenGL ES 2.0, OpenVG 1.1 |
| VPU | Allwinner Display Engine 2.0 • Encoders: H.264 (1080p30) • Decoders: VP8 (1080p60), H.265/H.264 (4k30/1080p60), JPEG/MJPEG (1080p30) | ||
| Storage | MicroSD Card Slot, eMMC 4.x Interface | ||
| RAM | 512MB (DDR3-1600) | 1GB (DDR3-1600) | 2GB (DDR3-1600) |
| USB | 4x USB 2.0 Type A | ||
| Network | 100Mbps (Fast Ethernet) | ||
| Video Out | HDMI 1.4 (1080p) HDCP 1.2, 3.5mm TRRS AV Jack |
HDMI 1.4 (4k30) HDCP 1.2, 3.5mm TRRS AV Jack | |
| Other | IR Receiver, U-Boot Button, UART header, 40-pin header (PWM, I2C, SPI, GPIO) | ||
