SiPEED Lichee RV Dock

From TechInfoDepot
(Redirected from Lichee RV Dock)
Jump to navigationJump to search
bgn (N150)
RISC-V Linux Development Kit
Homepage Product page
WikiDevi.wi-cat.ru Lichee RV Dock
3rd Party Firmware
dd-wrt Status Unknown
OpenWrt Supported
Tomato any flavor Incompatible
Gargoyle Status Unknown
Platform
Brand • Model • Rev SiPEED Lichee RV Dock
FCC ID none specified
Type development board, single-board computer
CPU1 ☒N Allwinner D1
CPU1 Type RISC-V XuanTie C906
CPU1 Speed 1.0 GHz 64-bit
Flash1 Chip Brand? Model?
Flash1 Size 0 MiB 0 B <br />0 Kib <br />0 KiB <br />0 Mib <br />0 GiB <br /> (MicroSD Card)
RAM1 Size 512 MiB 536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br /> (DDR3 SDRAM)
RAM1 Chip SK hynix H5TQ4G63EFR-RDC

802dot11 OUI: 74:EE:2A (-, 1 W)

Stock bootloader U-Boot 2018.05
Stock FW OS Linux 5.4.61 Debian 11
Expansion IF types USB 2.0, USB 3.0, MicroSD Card slot
USB ports 2
SD/MMC Slots 1
USB Hub Compatible Untested
Power 5 VDC, 2 A
Connector type USB Female (Type-C)
Serial Port (UART) yes, 4-pin header, unpopulated, 3.3V TTL, (115200 8N1)

Flags:
HDMI, MicroSD Card slot, Bluetooth 4.0 LE, microphone, JST 2.0 audio out, SPI, UART, GPIO

Additional chips
3W Mono Class D Audio Amplifier;Nsiway;NS4150;;1;
Intelligent Control LED Integrated Light Source;World Semi;WS2812C;;1;
1MHz, 2A Synchronous Step-Down Converter;TOLL Micro;TMI3411;;3;
1.5MHz, 1.5A, 5.5V Synchronous Step-Down Regulator;RyChip Semi;RY3415;;1;

Other

Default login user: sipeed
Default login password: licheepi
sipeed:licheepi credentials used by 5 additional devices
of which 5 are SiPEED devices

3rd Party Firmware Support OpenWrt • (List | Dev | DLs)
Retail
(Est.) release date December 2021
(Est.) initial retail price (in USD): $25
ASIN B0B2P96B5T
Country of manuf China
Radio 1
Radio1 module unknown
Radio1 module IF SDIO 2.0
Chip1 Realtek RTL8723DS
Wireless interface OUI 74:EE:2A
Antenna Connector Type IPEX
MIMO status 1x1:1
Wireless Standard IEEE 802.11b/g/n
802.11n up to 150 Mbps
802.11g up to 54 Mbps
802.11b up to 11 Mbps
WiFi Operating Frequency 2.4 GHz

For a list of all currently documented Allwinner SoC's with specifications, see Allwinner.
For a list of all currently documented Realtek chipsets with specifications, see Realtek.

For a list of all currently documented SiPEED devices with specifications, see SiPEED.

• 150 Mbps - 1SS 2.4GHz 802.11n (40MHz chan.) = N150 class

Overview

See also: List of Single-board computers

Hardware specification

  • CPU: Allwinner D1 @1GHz Single-core XuanTie C906 (RISC-V)
  • Storage: TF card (max.1TB)/MMC card
  • Memory: 512MB (DDR3) SDRAM
  • WLAN: 802.11b/g/n (1T1R) Wi-Fi
  • USB: 1x USB 3.0 (OTG), 1x USB 2.0 ports
  • GPIO: 1x 40-pin headers
  • Power Source: USB Type-C

Links of Interest

Flashing

Flashing OpenWrt

Target: d1
Subtarget: generic
Package architecture: riscv64_riscv64
Supported Since Commit
Support started version: 24.10.0
Current supported version: 25.12.5
WLAN Hardware: Realtek RTL8723DS
WLAN Comment: 1x1:1 MIMO
Installation method(s):
SD card
Recovery method(s):
SD card
Comment:
See also https://linux-sunxi.org/Sipeed_Lichee_RV
git • >>
d1: add new target
This target adds support for the Allwinner D1 RISC-V based SoCs.

 - RISC-V single-core T-Head C906 (RV64GCV)
 - Tensilica HiFi4 DSP
 - DDR2/DDR3 support
 - 10/100/1000M ethernet
 - usual peripherals like USB2, SPI, I2C, PWM, etc.

Four boards are supported:
 - Dongshan Nezha STU
    - 512Mb RAM
    - ethernet

 - LicheePi RV Dock
    - 512Mb RAM
    - wireless-only (RTL8723DS)

 - MangoPi MQ-Pro
    - 512Mb RAM
    - there are pads available for an SPI flash
    - wireless-only (RTL8723DS)

 - Nezha D1
    - 512Mb/1Gb/2Gb RAM
    - 256Mb NAND flash
    - ethernet, wireless

Installation:
Standard SD-card installation via dd-ing the generated image to
an SD-card of at least 256Mb.

Pictures

User Images

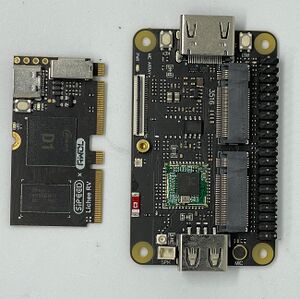

  • Board Top
    Board Top
  • Board Bottom
    Board Bottom

See also
