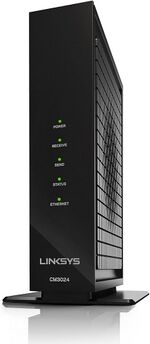

Linksys CM3024

From TechInfoDepot
Jump to navigationJump to search
cable modem
Homepage Product page
Support Support page
Wikipedia Linksys routers
3rd Party Firmware
dd-wrt Status Unknown
OpenWrt Status Unknown
Tomato any flavor Incompatible
Platform
BrandModelRev Linksys CM3024
Type cable modem
CPU1 checkY Intel Puma DHCE2652
CPU1 Type x86-64
CPU1 Speed not specified ( 2 cores )
Flash1 Chip Winbond 25Q128JV
Flash1 Size 16 MiB16,777,216 B <br />131,072 Kib <br />16,384 KiB <br />128 Mib <br />0.0156 GiB <br />
RAM1 Size 256 MiB268,435,456 B <br />2,097,152 Kib <br />262,144 KiB <br />2,048 Mib <br />0.25 GiB <br /> (DDR3)
RAM1 Chip Nanya NT5CC64M16GC
ETH chip1 Intel Puma DHCE2652
ETH chip2 Realtek RTL8211
Cable Modem Spec DOCSIS 3.0: (24 x 8)
Ethernet Port Count 1-1GbE-LAN
Wired Standard IEEE 802.3i/3u/3ab
Stock FW OS Linux 2.6.39.3
Expansion IF types none specified
Power 12 VDC, 2 A
Connector type barrel
Serial Port (UART) yes?, 4-pin header

Flags:
DOCSIS 3.0

Additional chips
Maxim 3521E, TP822, +BED1, DOCSIS 3.0 Upstream Amplifier; MaxLinear MXL267D, K8600.13, 1818 CC Full-Spectrum Capture Receiver

Retail
(Est.) initial retail price (in USD): $120
Newegg N82E16825120006
ASIN B01DACQM9M Flag of the United States.svg
Country of manuf China

For a list of all currently documented Intel Puma SoC's with specifications, see Intel Puma.
For a list of all currently documented Realtek chipsets with specifications, see Realtek.

For a list of all currently documented Linksys devices with specifications, see Linksys.

Overview

DOCSIS 3.0 24x8

"To achieve high-speed downstream and upstream performance,
the Linksys CM3024 Cable Modem features an Intel Puma 6 chipset."

Links of Interest

GPL source for Linksys CM 3024 router quoting firmware revision 1.0.00.010
