Linksys WMP600N

From TechInfoDepot
Jump to navigationJump to search
abgn (AN600)
Wireless-N Dual Band Adapter

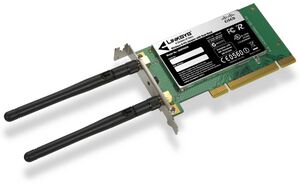

Linksys WMP600N 001.jpg
Support Support page
WikiDevi.wi-cat.ru Linksys WMP600N
Platform
BrandModelRev Linksys WMP600N
Serial number prefix JNX0
Interface PCI
Connector PCI

ID:1814:0601 (26 addl. devices) SS: 1737:0067
Windows: PCI\VEN_1814&DEV_0601&SUBSYS_00671737

FCCID Q87-WMP600N
ICID 3839A-WMP600N
Chip1 Ralink RT2860
Chip2 Ralink RT2850
Antenna Connection RP-SMA
MIMO status 2x2:2
Wireless Standards IEEE 802.11a/b/g/n
802.11n up to 300/300 Mbps
802.11g up to 54 Mbps
802.11b up to 11 Mbps
802.11a up to 54 Mbps
Operating Frequency 2.4 or 5 GHz
Other

Flags:
DFS

Windows driver
see MediaTek's website
older Ralink drivers have been removed.
see the Wayback Machine
for some older driver sets (filter by EXE/ZIP)

For a list of all currently documented Ralink chipsets with specifications, see Ralink.

For a list of all currently documented Linksys devices with specifications, see Linksys.

300 Mbps - 2SS 5GHz 802.11n (40MHz chan.),
300 Mbps - 2SS 2.4GHz 802.11n (40MHz chan.) = AN600 class

Overview

"P/N: 141822210000J REV: 0A" / "P/N: 141822210000J REV: 01A" is silkscreened on the board.

WMP600N serial numbers appear to start with JNX0.

Links of Interest

lspci -nnk
