Luckfox Core3576 4GB/32GB

Luckfox Core3576 (04032) Module
Homepage	Product page
WikiDevi.wi-cat.ru	Luckfox Core3576 4GB/32GB
3rd Party Firmware
dd-wrt	Status Unknown
OpenWrt	Status Unknown
Tomato any flavor	Incompatible
Platform
Brand • Model • Rev	Luckfox Core3576 (04032) Rev 1.1
Type	SoM
CPU1 N	Rockchip RK3576
CPU1 Type	ARM Cortex-A72
CPU1 Type2	ARM Cortex-A53
CPU1 Speed	2.2 GHz ( 4 cores )
CPU1 Speed2	1.8 GHz ( 4 cores )
Flash1 Chip	SCY E32GCSAF1ABE00
Flash1 Size	32 GiB 32,768 MiB <br />34,359,738,368 B <br />268,435,456 Kib <br />33,554,432 KiB <br />262,144 Mib <br />
RAM1 Size	4 GiB 4,096 MiB <br />4,294,967,296 B <br />33,554,432 Kib <br />4,194,304 KiB <br />32,768 Mib <br />
RAM1 Chip	Rayson RS1G32LX4D4BNR-53BT
ETH chip1	Rockchip RK3576
ETH chip2	Maxio MAE0621A
Ethernet Port Count	1-1GbE-LAN
Wired Standard	IEEE 802.3i/3u/3ab
Expansion IF types	none specified
Power	5 VDC, 2.5 A
Connector type	SODIMM
Additional chips I2C RTC;Lanker Semi;LK8563S;;1; Power Management IC;Rockchip;RK806S-5;;1;
Retail
(Est.) release date	November 2024
Country of manuf	China

Maxio not currently documented.
For a list of all currently documented Rockchip SoC's with specifications, see Rockchip.

For a list of all currently documented Luckfox devices with specifications, see Luckfox.

Overview

luckfox logo and "Core3576 Rev1.1" are silkscreened on SoM bottom.

Hardware specification

• CPU: Rockchip RK3576 @2.2GHz Quad-core ARM (Cortex-A72)

+ @2.0GHz Quad-Core ARM (Cortex-A53)

• GPU: Mali-G52 MC3 @900MHz (OpenGL ES3.2, OpenCL 2.0)

VPU (with 4K VP9 and 4K 10-bit H265/H264 decoding)

• Storage: 32GB (eMMC 5.1) Flash
• Memory: 4GB (LPDDR4X) SDRAM
• Network: 1x GbE port via connectors
• Power Source: 5V via connectors

Pictures

User Images

•

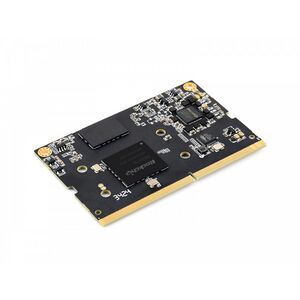

  SoM Top
•
  SoM Bottom
