Luckfox Pico Pi A W

From TechInfoDepot
Jump to navigationJump to search
multiple revisions of this device, use caution
bgn+ax (AX300)
Linux Micro Development Board
Homepage Product page
WikiDevi.wi-cat.ru Luckfox Pico Pi A W
3rd Party Firmware
dd-wrt Status Unknown
OpenWrt Status Unknown
Tomato any flavor Incompatible
Platform
BrandModelRev Luckfox PicoPi A W
FCC ID none specified
Type single-board computer
CPU1 ☒N Rockchip RV1106G3
CPU1 Type ARM Cortex-A7
CPU1 Speed 1.2 GHz
Flash1 Chip Rayson RS70B08G3-S03F
Flash1 Size 8 GiB 8,192 MiB <br />8,589,934,592 B <br />67,108,864 Kib <br />8,388,608 KiB <br />65,536 Mib <br /> (eMMC)
RAM1 Size 256 MiB 268,435,456 B <br />2,097,152 Kib <br />262,144 KiB <br />2,048 Mib <br />0.25 GiB <br /> (DDR3L)
RAM1 Chip Rockchip RV1106G3
ETH chip1 Rockchip RV1106G3
Ethernet Port Count 1-100MbE-LAN
Wired Standard IEEE 802.3i/3u

802dot11 OUI: 38:54:39 (-, 3 W)

Stock bootloader U-Boot 2017.09
Stock FW OS Linux 5.10.160 Buildroot 2023.02.6
Expansion IF types M.2 (USB 2.0), USB 2.0, Micro SD Card slot, Micro SIM Card slot
SIM Card slot 1
USB ports 4
SD/MMC Slots 1
USB Hub Compatible Untested
PoE 802.3af, standard
Power 5 VDC, 2 A
Connector type USB Female (Type-C)
Serial Port (UART) yes, via GPIO header, 3.3V TTL, (1500000 8N1)

Flags:
Micro SD Card slot, Micro SIM Card slot, Wi-Fi 6, Bluetooth 5.2 BLE, PoE Expansion header, RTC w/ battery, Microphone, Audio in (3.5mm), MIPI CSI, I2C, SPI, PWM, UART, GPIO

Additional chips
4-Port USB 2.0 Hub Controller;WCH;CH334F;;1;
Low-Capacitance TVS Diode Array;Semtech;SR05;;1;
5-Line ESD Protection Diode Array;OnSemi;SMF05C;;1;
2A Synchronous Step-Down Converter;MPS;MP1605;;1;
High Output Current LDO Regulator;MicrOne;ME6217;;1;
3 Channel Power Management IC;Everanalog;EA3036C;;1;
Ultra Low Capacitance TVS Array;SemTech;RClamp0524P;;2;
Two-Port, High-Speed USB 2.0 UART Switch;OnSemi;FUSB42;;2;
5A, 18V Input Synchronous Step Down Regulator;Silergy;SY81051;;1;,

Other

Default IP address: acquired via DHCP
the IP acquired via DHCP is used by 232 additional devices
of which 5 are Luckfox devices
Default login user: root
Default login password: luckfox
root:luckfox credentials used by 7 additional devices
of which 7 are Luckfox devices

Retail
(Est.) release date March 2025
(Est.) initial retail price (in USD): $28
ASIN B0F31XJM7Q Flag of the United States.svg
Country of manuf China
Radio 1
Radio1 module CVTE SKI.WB800DCS.2
Radio1 module IF USB (module)
Chip1 AIC AIC8800D
Wireless interface OUI 38:54:39
Antenna Connector Type MHF4
MIMO status 1x1:1
Wireless Standard IEEE 802.11b/g/n/ax
802.11ax up to 287 Mbps
802.11n up to 150 Mbps
802.11g up to 54 Mbps
802.11b up to 11 Mbps
WiFi Operating Frequency 2.4 GHz
 CPU1 brandRadio1 chip1 brandRadio1 chip2 brand
Luckfox Pico Pi A WRockchipAIC
Luckfox Pico UltraRockchip
Luckfox Pico Ultra WRockchipAIC
Luckfox Pico Zero WRockchipAIC

For a list of all currently documented AIC chipsets with specifications, see AIC.
For a list of all currently documented Rockchip SoC's with specifications, see Rockchip.

For a list of all currently documented Luckfox devices with specifications, see Luckfox.

300 Mbps - 1SS 2.4GHz 802.11ax (40MHz chan., 256-QAM) = AX300 class

Overview

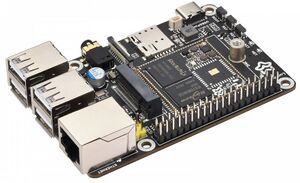

"Luckfox Pico Pi" and LuckFox logo are silkscreened on board top.

See also: List of SBCs

Hardware specification

  • CPU: Rockchip RV1106G3 @1.2GHz ARM (Cortex-A7)
NPU: 1 TOPS INT4/INT8/INT16
VPU: 5M @30fps H.265/H.264 encoding,
16M @60fps JPEG snapshot
  • Storage: 8GB (eMMC) flash (Rayson)
  • Memory: 256MB (DDR3L) RAM (integrated SiP)
  • Wi-Fi: AIC AIC8800 DC (2.4GHz 1T1R 802.11ax)
AX300; SDIO: Wi-Fi, UART/PCM: BT 5.2 BLE
  • Network: 1x Fast Ethernet (100M) port
  • USB: 1x USB 2.0 (Type-C) OTG or 4x USB 2.0 (Host) ports
or 3x USB 2.0 (Host) ports, 1x M.2 for slot for 4G module
NOTE - 4x USB 2.0 or Type-C OTG
  • GPIO: 1x 40-pin headers
  • Power Source: 5V via USB (Type-C) port
or 802.3af via optional PoE Hat
