MangoPi MPI-GW1
From TechInfoDepot
Jump to navigationJump to search| RISC-V Router | |
| 3rd Party Firmware | |
|---|---|
| dd-wrt |
Status Unknown |
| OpenWrt |
Status Unknown |
| Tomato any flavor |
Incompatible |
| Platform | |
| Brand • Model • Rev |
MangoPi MPI-GW1 V1.1 |
| Type |
single-board computer, router |
| CPU1 |
ArtInChip D213ECV |
| CPU1 Type |
RISC-V |
| CPU1 Speed |
600 MHz 64-bit |
| Flash1 Chip |
Winbond W25N02KVZEIR |
| Flash1 Size |
256 MiB268,435,456 B <br />2,097,152 Kib <br />262,144 KiB <br />2,048 Mib <br />0.25 GiB <br /> (QSPI NAND) |
| RAM1 Size |
128 MiB134,217,728 B <br />1,048,576 Kib <br />131,072 KiB <br />1,024 Mib <br />0.125 GiB <br /> (DDR3 SDRAM) |
| RAM1 Chip |
ArtInChip D213ECV |
| ETH chip1 |
ArtInChip D213ECV |
| ETH chip2 |
Realtek RTL8201F |
| ETH chip3 |
Realtek RTL8201F |
| Ethernet Port Count |
1-100MbE-WAN 1-100MbE-LAN |
| Wired Standard |
IEEE 802.3i/3u |
|
| |
| Stock bootloader |
U-Boot 2021.10 |
| Stock FW OS |
Linux 5.10.44 |
| Expansion IF types |
USB 2.0 |
| USB ports |
1 |
| USB Hub Compatible |
Untested |
| Power |
5 VDC, 2 A |
| Connector type |
USB (Type C) Female |
| Serial Port (UART) |
yes, 3-pin header, populated, 3.3V TTL, (115200 8N1) |
|
Flags: CAN Bus, RS485, RTC w/ battery, MIPI DSI, SPI, ADC, UART, GPIO | |
| Other | |
|
| |
| Manuf/OEM/ODM | |
| Retail | |
| (Est.) release date | July 2023 |
| (Est.) initial retail price (in USD): | $40 |
| Country of manuf | China |
For a list of all currently documented ArtInChip chipsets with specifications, see ArtInChip.
For a list of all currently documented Realtek chipsets with specifications, see Realtek.
For a list of all currently documented MangoPi device with specifications, see MangoPi.
Overview
"MP-GW1" and "MANGOPI" are silkscreened on the board top.
Specifications
- CPU: ArtInChip D213ECV @600MHz RISC-V (64-bit) MCU
- SoC: Single-core C906 (RV64IMAFDC) • Datasheet
- Storage: 256MB (QSPI NAND) Flash,
- TF card (max.128GB)/MMC card
- Memory: 128MB (SiP DDR3) SDRAM
- USB: 2x USB 2.0 ports
- Network: 2x FE ports (RTL8201F)
- Other: 2x CAN Bus, 2x RS485 (2-pin)
- Power Source: 5V via USB (Type-C)
Links of Interest
Models
- MangoPi MQ Dual (MPi-MQ1DW) • PPage
- MangoPi MQ Quad • Allwinner • Spec.
- MangoPi MQ Pro (MPi-MQ1LH/PH) • PPage
- MangoPi R3 (MPi-R3C) • Allwinner • PPage
- MangoPi MCore H616 • Spec.
Pictures

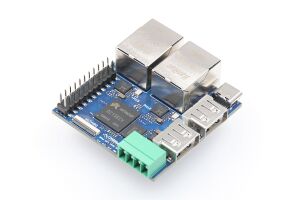

Board top
Board bottom
