Mellanox Spectrum SN2010

From TechInfoDepot
Jump to navigationJump to search
25GbE/100GbE Management Switch
Mellanox Spectrum SN2010.jpg
Homepage Product page
WikiDevi.wi-cat.ru Mellanox Spectrum SN2010
3rd Party Firmware
dd-wrt Status Unknown
OpenWrt Status Unknown
Tomato any flavor Incompatible
Platform
Brand • Model • Rev Mellanox Spectrum SN2010(M)
CPU1 Question? Intel Atom C2558
CPU1 Speed 2.0 GHz ( 2 cores )
Flash1 Chip Innodisk Model?
Flash1 Size 16 GiB 16,384 MiB <br />17,179,869,184 B <br />134,217,728 Kib <br />16,777,216 KiB <br />131,072 Mib <br /> (M.2 (S42) 3IE3)
RAM1 Size 8 GiB 8,192 MiB <br />8,589,934,592 B <br />67,108,864 Kib <br />8,388,608 KiB <br />65,536 Mib <br /> (DDR3L SO-DIMM)
RAM1 Chip Micron Model?
ETH chip1 Intel i354
Switch Mellanox MT52100
Ethernet Port Count 16-100GbE
Ethernet connector 18x SFP28 + 4x QSFP28
Wired Standard 802.3cd
Auto-MDIX unsupported
Jumbo frame yes
Switch Class managed

Ethernet OUI: 1C:34:DA

Expansion IF types mSATA, Micro USB
Power 100-264 VAC ~ 50/60 Hz, 4.5 A
Retail
(Est.) release date 2017
ASIN B07HVZTZKX Flag of the United States.svg

For a list of all currently documented Intel chipsets with specifications, see Intel.
For a list of all currently documented Intel Atom SoC's with specifications, see Intel Atom.
Mellanox not currently documented.

For a list of all currently documented Mellanox devices with specifications, see Mellanox.

Overview

See also: Intel Atom and Mellanox
• HPE StoreFabric SN2010M
Intel Atom C2558 @2.0GHz (CPU SoC)
Intel i354 (rev 03) (Ethernet Connection)
Mellanox Technologies MT52100 (Switch ASIC)
StorFly Virtium VSFBM4XC016G-MLX2 (16GB SSD)
Device Type: Spectrum
Part Number: Q9E63-63001_Ax
Description: HPE StoreFabric SN2010M 25GbE 18SFP28 4QSFP28 Half Width Switch

# lspci
00:00.0 Host bridge: Intel Atom C2000 SoC Transaction Router (rev 03)
00:01.0 PCI bridge: Intel Atom C2000 PCIe Root Port 1 (rev 03)
00:02.0 PCI bridge: Intel Atom C2000 PCIe Root Port 2 (rev 03)
00:03.0 PCI bridge: Intel Atom C2000 PCIe Root Port 3 (rev 03)
00:0b.0 Co-processor: Intel Atom processor C2000 QAT (rev 03)
00:0e.0 Host bridge: Intel Atom processor C2000 RAS (rev 03)
00:0f.0 IOMMU: Intel Atom processor C2000 RCEC (rev 03)
00:13.0 System peripheral: Intel Atom processor C2000 SMBus 2.0 (rev 03)
00:14.0 Ethernet controller: Intel Ethernet Connection I354 (rev 03)
00:16.0 USB controller: Intel Atom C2000 USB Enh Host Controller (rev 03)
00:17.0 SATA controller: Intel Atom C2000 AHCI SATA2 Controller (rev 03)
00:18.0 SATA controller: Intel Atom C2000 AHCI SATA3 Controller (rev 03)
00:1f.0 ISA bridge: Intel Atom processor C2000 PCU (rev 03)
00:1f.3 SMBus: Intel Atom processor C2000 PCU SMBus (rev 03)
01:00.0 Ethernet controller: Mellanox Technologies MT52100

Images

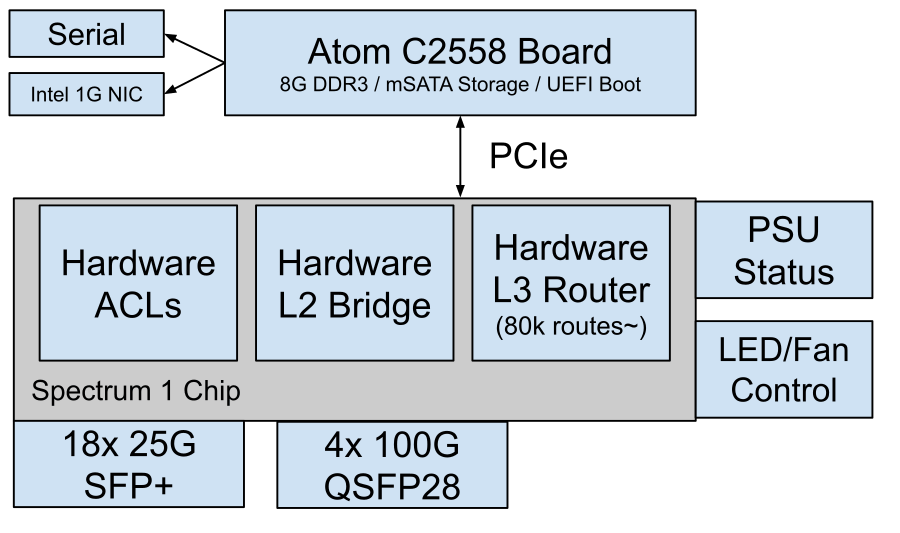

https://blog.benjojo.co.uk/asset/jWA6ToczpQ

"Mellanox Technologies" (now nVIDIA) Switch ASIC
vendor: 15b3, device: c738 ("MT51136")
vendor: 15b3, device: c739 ("MT51136 GW")
vendor: 15b3, device: c838 ("MT52236")
vendor: 15b3, device: c839 ("MT52236 GW")
vendor: 15b3, device: cb20
vendor: 15b3, device: cb84 ("MT52100 [Spectrum]")
vendor: 15b3, device: cf08 ("Switch-IB2")
vendor: 15b3, device: cf6c ("MT53100 [Spectrum-2]")
vendor: 15b3, device: cf70 ("Spectrum-3")
vendor: 15b3, device: cf80 ("Spectrum-4")
vendor: 15b3, device: cf82 ("Spectrum-5")
vendor: 15b3, device: cf84 ("Spectrum-6")
vendor: 15b3, device: cf86 ("Spectrum-7")
