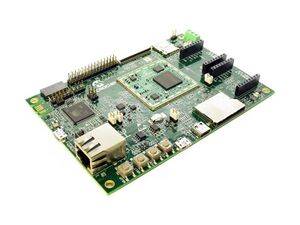

Microchip SAMA5D27 SOM1 EK
From TechInfoDepot
Jump to navigationJump to search
| Single Board Computer | |||||||||||||||||||||||||||||||||
|
| |||||||||||||||||||||||||||||||||
| 3rd Party Firmware | |||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dd-wrt | Status Unknown | ||||||||||||||||||||||||||||||||
| OpenWrt | Supported | ||||||||||||||||||||||||||||||||
| Tomato any flavor | Incompatible | ||||||||||||||||||||||||||||||||
| Gargoyle | Status Unknown | ||||||||||||||||||||||||||||||||
| Platform | |||||||||||||||||||||||||||||||||
| Brand • Model • Rev | Microchip SAMA5D27 SOM1 EK | ||||||||||||||||||||||||||||||||
| Model Part Number | ATSAMA5D27-SOM1-EK1 | ||||||||||||||||||||||||||||||||
| Type | single-board computer | ||||||||||||||||||||||||||||||||
| CPU1 | Atmel ATSAMA5D27 | ||||||||||||||||||||||||||||||||
| CPU1 Speed | 500 MHz | ||||||||||||||||||||||||||||||||
| Flash1 Chip | Brand? Model? | ||||||||||||||||||||||||||||||||
| Flash1 Size | 0 MiB 0 B <br />0 Kib <br />0 KiB <br />0 Mib <br />0 GiB <br /> (microSDHC) | ||||||||||||||||||||||||||||||||
| RAM1 Size | 128 MiB 134,217,728 B <br />1,048,576 Kib <br />131,072 KiB <br />1,024 Mib <br />0.125 GiB <br /> | ||||||||||||||||||||||||||||||||
| RAM1 Chip | Brand? Model? | ||||||||||||||||||||||||||||||||
| ETH chip1 | Atmel ATSAMA5D27 | ||||||||||||||||||||||||||||||||
| Ethernet Port Count | 1-100MbE-LAN | ||||||||||||||||||||||||||||||||
| Wired Standard | IEEE 802.3i/3u | ||||||||||||||||||||||||||||||||
|
| |||||||||||||||||||||||||||||||||
| Stock bootloader | U-Boot | ||||||||||||||||||||||||||||||||
| Expansion IF types | microSDHC | ||||||||||||||||||||||||||||||||
| SD/MMC Slots | 1 | ||||||||||||||||||||||||||||||||
| Power | 5 VDC, ? A | ||||||||||||||||||||||||||||||||
| Serial Port (UART) | yes, (115200 8N1) | ||||||||||||||||||||||||||||||||
|
| |||||||||||||||||||||||||||||||||
|
| |||||||||||||||||||||||||||||||||
| Other | |||||||||||||||||||||||||||||||||
|
| |||||||||||||||||||||||||||||||||
| 3rd Party Firmware Support |
OpenWrt • (List | Dev | DLs) | ||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||
For a list of all currently documented Atmel chipsets with specifications, see Atmel.
For a list of all currently documented Microchip devices with specifications, see Microchip.
Flashing
| NOTE: During configuration or flashing a device, the only things that should be hooked to the device is the computer and power. |
Flashing OpenWrt
OpenWrt Target: at91
OpenWrt Subtarget: sama5
OpenWrt Package architecture: arm_cortex-a5_vfpv4
Support started version: 18.06.0
Current supported version: 24.10.3
OpenWrt Subtarget: sama5
OpenWrt Package architecture: arm_cortex-a5_vfpv4
Support started version: 18.06.0
Current supported version: 24.10.3
WLAN Comment: No WLAN
Please insert instructions here
