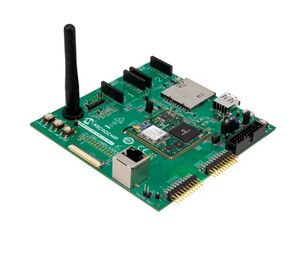

Microchip SAMA5D27 WLSOM1 EK

From TechInfoDepot
Jump to navigationJump to search
multiple revisions of this device, use caution
bgn (N150)
Single Board Computer
Homepage Product page
3rd Party Firmware
dd-wrt Status Unknown
OpenWrt Supported
Tomato any flavor Incompatible
Gargoyle Status Unknown
Platform
BrandModelRev Microchip SAMA5D27 WLSOM1 EK
Model Part Number ATSAMA5D27-WLSOM1-EK1
FCC ID none specified
Type single-board computer
CPU1 ☒N Atmel ATSAMA5D27C
CPU1 Speed 500 MHz
Flash1 Chip Brand? Model?
Flash1 Size 8 MiB8,388,608 B <br />65,536 Kib <br />8,192 KiB <br />64 Mib <br />0.00781 GiB <br />
RAM1 Size 256 MiB268,435,456 B <br />2,097,152 Kib <br />262,144 KiB <br />2,048 Mib <br />0.25 GiB <br />
RAM1 Chip Brand? Model?
ETH chip1 Atmel ATSAMA5D27C
Ethernet Port Count 1-100MbE-LAN
Wired Standard IEEE 802.3i/3u

802dot11 OUI: none specified

Stock bootloader U-Boot
Expansion IF types SD, USB 2.0
USB ports 2
SD/MMC Slots 1
USB Hub Compatible Untested
Power 5 VDC, 2 A
Connector type microUSB
Serial Port (UART) yes, 3.3V TTL, (115200 8N1)
JTAG Port yes

Flags:
Bluetooth 4.0

Other
3rd Party Firmware Support OpenWrt • (List | Dev | DLs)
Radio 1
Radio1 module Microchip ATWILC3000-MR110UA
Radio1 module IF SIP
Chip1 Microchip ATWILC3000
Wireless interface OUI none specified
Antenna Connector Type none specified
MIMO status 1x1:1
Wireless Standard IEEE 802.11b/g/n
802.11n up to 150 Mbps
802.11g up to 54 Mbps
802.11b up to 11 Mbps
WiFi Operating Frequency 2.4 GHz
 CPU1 brandRadio1 chip1 brandRadio1 chip2 brand
Microchip SAMA5D2 ICPAtmelMicrochip
Microchip SAMA5D2 PTC EKAtmel
Microchip SAMA5D2 Xplained UltraAtmel
Microchip SAMA5D27 SOM1 EKAtmel
Microchip SAMA5D27 WLSOM1 EKAtmelMicrochip
Microchip SAMA5D3 XplainedAtmel
Microchip SAMA5D4 Xplained UltraAtmel

For a list of all currently documented Atmel chipsets with specifications, see Atmel.
For a list of all currently documented Microchip (SMSC) chipsets with specifications, see Microchip.

For a list of all currently documented Microchip devices with specifications, see Microchip.

150 Mbps - 1SS 2.4GHz 802.11n (40MHz chan.) = N150 class

Flashing

Flashing OpenWrt

On the OpenWrt ToH (techdata entry)
OpenWrt Target: at91
OpenWrt Subtarget: sama5
OpenWrt Package architecture: arm_cortex-a5_vfpv4
Support started version: 22.03.0
Current supported version: 24.10.0
Comment:
2x mikroBUS Click Interfaces

Please insert instructions here
