| bgn (N150) | |
|---|---|
| Single Board Computer | |
|
| |
| 3rd Party Firmware | |
| dd-wrt | Status Unknown |
| OpenWrt | Partial Support |
| Tomato any flavor | Incompatible |
| Gargoyle | Status Unknown |
| Platform | |

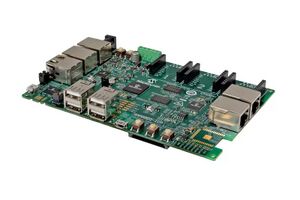

| Brand • Model • Rev | Microchip SAMA5D2 ICP |
| FCC ID | none specified |
| Type | single-board computer |
| CPU1 | Atmel ATSAMA5D27C |
| CPU1 Speed | 500 MHz |
| Flash1 Chip | Brand? Model? |
| Flash1 Size | 0 MiB 0 B <br />0 Kib <br />0 KiB <br />0 Mib <br />0 GiB <br /> (SD) |
| Flash2 Size | 8 MiB8,388,608 B <br />65,536 Kib <br />8,192 KiB <br />64 Mib <br />0.00781 GiB <br /> |
| RAM1 Size | 512 MiB 536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br /> |
| RAM1 Chip | Brand? Model? |
| ETH chip1 | Atmel ATSAMA5D27C |
| Ethernet Port Count | 1-100MbE x 1-1GbE-LAN |
| Wired Standard | IEEE 802.3i/3u |
|
802dot11 OUI: none specified | |
| Stock bootloader | U-Boot |
| Expansion IF types | SD, USB 2.0 |
| USB ports | 5 |
| SD/MMC Slots | 1 |
| USB Hub Compatible | Untested |
| Power | 5 VDC, 2 A |
| Connector type | barrel |
| Serial Port (UART) | yes, 5V TTL, (115200 8N1) |
|
Flags: | |
|
| |
| Other | |
|
| |
| 3rd Party Firmware Support |
OpenWrt • (List | Dev | DLs) |
| Radio 1 | |
| Chip1 | Microchip WILC3000 |
| Wireless interface OUI | none specified |
| Antenna Connector Type | none specified |
| MIMO status | 1x1:1 |
| Wireless Standard | IEEE 802.11b/g/n |
| 802.11n | up to 150 Mbps |
| 802.11g | up to 54 Mbps |
| 802.11b | up to 11 Mbps |
| WiFi Operating Frequency | 2.4 GHz |
For a list of all currently documented Atmel chipsets with specifications, see Atmel.
For a list of all currently documented Microchip (SMSC) chipsets with specifications, see Microchip.
For a list of all currently documented Microchip devices with specifications, see Microchip.
- • 150 Mbps - 1SS 2.4GHz 802.11n (40MHz chan.) = N150 class
Flashing
| NOTE: During configuration or flashing a device, the only things that should be hooked to the device is the computer and power. |
Flashing OpenWrt
OpenWrt Target: at91
OpenWrt Subtarget: sama5
OpenWrt Package architecture: arm_cortex-a5_vfpv4
Support started version: 22.03.0
Current supported version: 24.10.3
OpenWrt Subtarget: sama5
OpenWrt Package architecture: arm_cortex-a5_vfpv4
Support started version: 22.03.0
Current supported version: 24.10.3
Unsupported Functions:
EtherCAT interface, PAC1934 power consumption
WLAN Comment: Microchip WILC3000-MR110CA or WILC3000-MR110UA
Comment:
3x mikroBUS Click Interfaces
EtherCAT interface, PAC1934 power consumption
WLAN Comment: Microchip WILC3000-MR110CA or WILC3000-MR110UA
Comment:
3x mikroBUS Click Interfaces
Please insert instructions here
