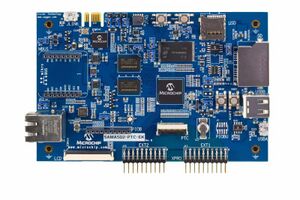

Microchip SAMA5D2 PTC EK

From TechInfoDepot
Jump to navigationJump to search
multiple revisions of this device, use caution
Single Board Computer
3rd Party Firmware
dd-wrt
Status Unknown
OpenWrt
Tomato any flavor
Incompatible
Gargoyle
Status Unknown
Platform
BrandModelRev
Microchip SAMA5D2 PTC EK
Type
single-board computer
CPU1
Atmel ATSAMA5D27C
CPU1 Speed
500 MHz
Flash1 Chip
Brand? Model?
Flash1 Size
512 MiB536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br /> (NAND)
Flash2 Size
8 MiB8,388,608 B <br />65,536 Kib <br />8,192 KiB <br />64 Mib <br />0.00781 GiB <br />
RAM1 Size
512 MiB536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br />
RAM1 Chip
Brand? Model?
ETH chip1
Atmel ATSAMA5D27C
Ethernet Port Count
1-100MbE-LAN
Wired Standard
IEEE 802.3i/3u
Stock bootloader
U-Boot
Expansion IF types
SD, microSD, USB 2.0
USB ports
2
SD/MMC Slots
2
USB Hub Compatible
Untested
Power
5 VDC, 2 A
Connector type
microUSB
Serial Port (UART)
yes, 5, (115200 8N1)
Other
3rd Party Firmware Support
OpenWrt • (List | Dev | DLs)
 CPU1 brandFLA1RAM1
Microchip SAMA5D2 ICPAtmel8 MiB8,388,608 B <br />65,536 Kib <br />8,192 KiB <br />64 Mib <br />0.00781 GiB <br />512 MiB536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br />
Microchip SAMA5D2 PTC EKAtmel512 MiB536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br />512 MiB536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br />
Microchip SAMA5D2 Xplained UltraAtmel512 MiB536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br />512 MiB536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br />
Microchip SAMA5D27 SOM1 EKAtmel0 MiB0 B <br />0 Kib <br />0 KiB <br />0 Mib <br />0 GiB <br />128 MiB134,217,728 B <br />1,048,576 Kib <br />131,072 KiB <br />1,024 Mib <br />0.125 GiB <br />
Microchip SAMA5D27 WLSOM1 EKAtmel8 MiB8,388,608 B <br />65,536 Kib <br />8,192 KiB <br />64 Mib <br />0.00781 GiB <br />256 MiB268,435,456 B <br />2,097,152 Kib <br />262,144 KiB <br />2,048 Mib <br />0.25 GiB <br />
Microchip SAMA5D3 XplainedAtmel256 MiB268,435,456 B <br />2,097,152 Kib <br />262,144 KiB <br />2,048 Mib <br />0.25 GiB <br />256 MiB268,435,456 B <br />2,097,152 Kib <br />262,144 KiB <br />2,048 Mib <br />0.25 GiB <br />
Microchip SAMA5D4 Xplained UltraAtmel512 MiB536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br />512 MiB536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br />

For a list of all currently documented Atmel chipsets with specifications, see Atmel.

For a list of all currently documented Microchip device with specifications, see Microchip.

Flashing

Flashing OpenWrt

On the OpenWrt ToH (techdata entry)
OpenWrt Target: at91
OpenWrt Subtarget: sama5
OpenWrt Package architecture: arm_cortex-a5_neon-vfpv4
Support started version: 22.03.0
Current supported version: 23.05.5

Please insert instructions here
