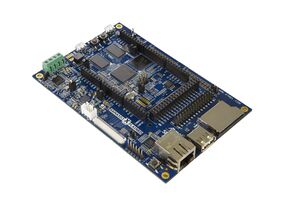

Microchip SAMA5D2 Xplained Ultra
SAMA5D2 Xplained Ultra | |||||||||||||||||||||||||||||||||
3rd Party Firmware | |||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
dd-wrt | Status Unknown | ||||||||||||||||||||||||||||||||
OpenWrt | Supported | ||||||||||||||||||||||||||||||||
Tomato any flavor | Incompatible | ||||||||||||||||||||||||||||||||
Gargoyle | Status Unknown | ||||||||||||||||||||||||||||||||
Platform | |||||||||||||||||||||||||||||||||
Brand • Model • Rev | Microchip SAMA5D2 Xplained Ultra | ||||||||||||||||||||||||||||||||
Board ID | A08-2388/2 | ||||||||||||||||||||||||||||||||
Type | development board | ||||||||||||||||||||||||||||||||
CPU1 ![]() | Atmel ATSAMA5D27 | ||||||||||||||||||||||||||||||||
CPU1 Type | ARM Cortex-A5 | ||||||||||||||||||||||||||||||||
CPU1 Speed | 500 MHz | ||||||||||||||||||||||||||||||||
Flash1 Chip | Micron 29F4G08ABAE | ||||||||||||||||||||||||||||||||
Flash1 Size | 512 MiB536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br /> (NAND) | ||||||||||||||||||||||||||||||||
RAM1 Size | 512 MiB536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br /> (DDR3 SDRAM) | ||||||||||||||||||||||||||||||||
RAM1 Chip | Micron MT41K128M16JT-125 x 2 | ||||||||||||||||||||||||||||||||
ETH chip1 | Atmel ATSAMA5D27 | ||||||||||||||||||||||||||||||||
ETH chip2 | Micrel KSZ8081 | ||||||||||||||||||||||||||||||||
Ethernet Port Count | 1-100MbE-LAN | ||||||||||||||||||||||||||||||||
Wired Standard | IEEE 802.3i/3u | ||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||
Stock bootloader | U-Boot | ||||||||||||||||||||||||||||||||
Expansion IF types | USB 2.0, SD Card slot, eMMC | ||||||||||||||||||||||||||||||||
USB ports | 2 | ||||||||||||||||||||||||||||||||
SD/MMC Slots | 1 | ||||||||||||||||||||||||||||||||
USB Hub Compatible | Untested | ||||||||||||||||||||||||||||||||
Power | 5 VDC, 2 A | ||||||||||||||||||||||||||||||||
Connector type | USB Female Micro-B | ||||||||||||||||||||||||||||||||
Serial Port (UART) | yes, 6-pin header, populated, 3.3V TTL, (115200 8N1), J1 | ||||||||||||||||||||||||||||||||
JTAG Port | yes, 10-pin header, populated, J11 | ||||||||||||||||||||||||||||||||
Flags: SD Card slot, RGB LCD FPC, Arduino expansion | |||||||||||||||||||||||||||||||||
Additional chips | |||||||||||||||||||||||||||||||||
Other | |||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||
3rd Party Firmware Support |
OpenWrt • (List | Dev | DLs) | ||||||||||||||||||||||||||||||||
Retail | |||||||||||||||||||||||||||||||||
(Est.) release date | October 2015 | ||||||||||||||||||||||||||||||||
(Est.) initial retail price (in USD): | $79 | ||||||||||||||||||||||||||||||||
Country of manuf | China | ||||||||||||||||||||||||||||||||
|
For a list of all currently documented Atmel chipsets with specifications, see Atmel.
For a list of all currently documented Micrel (Kendin) chipsets with specifications, see Micrel.
For a list of all currently documented Microchip devices with specifications, see Microchip.
Overview
Hardware specification
- CPU: Atmel ATSAMA5D27
- @528MHz (ARM Cortex-A5)
- Memory: 512MB (DDR2) SDRAM
- Storage: 512MB (NAND) Flash,
- TF card (max.128GB)/MMC card
- Video Output: TFT LCD
- Network: 1x Fast Ethernet port
- USB: 1x USB 2.0 Host, 1x Micro USB Device
- Power Source: 5V 2A via microUSB
Links of Interest
- Atmel SAMA5D4 Xplained Ultra Development Board on CNX|Software
- Atmel launches ultra efficient, Linux ready Cortex-A5 SoC on LinuxGizmos
- SAMA5D2 Xplained Board on Linux & Open Source for AT91 Microchip Microprocessors
Flashing OpenWrt
OpenWrt Target: at91
OpenWrt Subtarget: sama5
OpenWrt Package architecture: arm_cortex-a5_vfpv4
Support started version: 18.06.0
Current supported version: 24.10.0
LAN Comment:
Micrel KSZ8081 Phy
Comment:
Arduino compatible headers
Please insert instructions here
