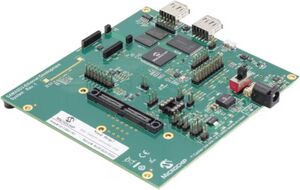

Microchip SAMA5D3 Xplained
From TechInfoDepot
Jump to navigationJump to search
|
ETHERNET DEVELOPMENT SYSTEM Single Board Computer | |||||||||||||||||||||||||||||||||
|
| |||||||||||||||||||||||||||||||||
| Homepage | Product page | ||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3rd Party Firmware | |||||||||||||||||||||||||||||||||
| dd-wrt | Status Unknown | ||||||||||||||||||||||||||||||||
| OpenWrt | Supported | ||||||||||||||||||||||||||||||||
| Tomato any flavor | Incompatible | ||||||||||||||||||||||||||||||||
| Gargoyle | Status Unknown | ||||||||||||||||||||||||||||||||
| Platform | |||||||||||||||||||||||||||||||||
| Brand • Model • Rev | Microchip SAMA5D3 Xplained | ||||||||||||||||||||||||||||||||
| Type | single-board computer | ||||||||||||||||||||||||||||||||
| CPU1 | Atmel ATSAMA5D36 | ||||||||||||||||||||||||||||||||
| CPU1 Speed | 536 MHz | ||||||||||||||||||||||||||||||||
| Flash1 Chip | Brand? Model? | ||||||||||||||||||||||||||||||||
| Flash1 Size | 256 MiB 268,435,456 B <br />2,097,152 Kib <br />262,144 KiB <br />2,048 Mib <br />0.25 GiB <br /> (NAND) | ||||||||||||||||||||||||||||||||
| RAM1 Size | 256 MiB 268,435,456 B <br />2,097,152 Kib <br />262,144 KiB <br />2,048 Mib <br />0.25 GiB <br /> | ||||||||||||||||||||||||||||||||
| RAM1 Chip | Brand? Model? | ||||||||||||||||||||||||||||||||
| ETH chip1 | Atmel ATSAMA5D36 | ||||||||||||||||||||||||||||||||
| Ethernet Port Count | 1-1GbE x 1-100MbE-LAN | ||||||||||||||||||||||||||||||||
| Wired Standard | IEEE 802.3i/3u/3ab | ||||||||||||||||||||||||||||||||
|
| |||||||||||||||||||||||||||||||||
| Stock bootloader | U-Boot | ||||||||||||||||||||||||||||||||
| Expansion IF types | USB 2.0 | ||||||||||||||||||||||||||||||||
| USB ports | 3 | ||||||||||||||||||||||||||||||||
| USB Hub Compatible | Untested | ||||||||||||||||||||||||||||||||
| Power | 5 VDC, 2 A | ||||||||||||||||||||||||||||||||
| Connector type | Micro USB | ||||||||||||||||||||||||||||||||
| Serial Port (UART) | yes, (115200 8N1) | ||||||||||||||||||||||||||||||||
| JTAG Port | yes | ||||||||||||||||||||||||||||||||
|
| |||||||||||||||||||||||||||||||||
|
| |||||||||||||||||||||||||||||||||
| Other | |||||||||||||||||||||||||||||||||
|
| |||||||||||||||||||||||||||||||||
| 3rd Party Firmware Support |
OpenWrt • (List | Dev | DLs) | ||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||
For a list of all currently documented Atmel chipsets with specifications, see Atmel.
For a list of all currently documented Microchip devices with specifications, see Microchip.
Flashing
| NOTE: During configuration or flashing a device, the only things that should be hooked to the device is the computer and power. |
Flashing OpenWrt
OpenWrt Target: at91
OpenWrt Subtarget: sama5
OpenWrt Package architecture: arm_cortex-a5_vfpv4
Support started version: 17.01.1
Current supported version: 24.10.4
OpenWrt Subtarget: sama5
OpenWrt Package architecture: arm_cortex-a5_vfpv4
Support started version: 17.01.1
Current supported version: 24.10.4
WLAN Comment: No WLAN
Comment:
Arduino compatible headers
Comment:
Arduino compatible headers
Please insert instructions here
