Microchip SAMA5D4 Xplained Ultra

From TechInfoDepot
Jump to navigationJump to search
multiple revisions of this device, use caution
SAMA5D4 Xplained Ultra

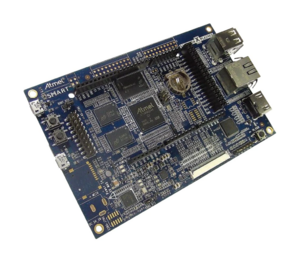

Atmel SAMA5D4 Xplained Ultra.png
Homepage Product page
WikiDevi.wi-cat.ru SAMA5D4 Xplained Ultra
3rd Party Firmware
dd-wrt Supported
OpenWrt Supported
Tomato any flavor Incompatible
Gargoyle Status Unknown
Platform
BrandModelRev Microchip SAMA5D4 Xplained Ultra
Board ID A08-2203/1
Type development board
CPU1 ☒N Atmel ATSAMA5D44
CPU1 Type ARM920T Cortex-A5
CPU1 Speed 528 MHz
Flash1 Chip Micron 29F4G08ABAE
Flash1 Size 512 MiB 536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br /> (NAND)
RAM1 Size 512 MiB 536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br /> (DDR2 SDRAM PC133)
RAM1 Chip Micron MT47H128M16RT-25E:C x 2
ETH chip1 Atmel ATSAMA5D44
ETH chip2 Micrel KSZ8081
Ethernet Port Count 1-100MbE-LAN
Wired Standard IEEE 802.3i/3u

Ethernet OUI: FC:C2:3D

Stock bootloader U-Boot 2014.07
Stock FW OS LInux 3.10.0 Poky
Expansion IF types USB 2.0, SD Card slot
USB ports 3
SD/MMC Slots 1
USB Hub Compatible Untested
Power 5 VDC, 2 A
Connector type USB Female (Micro-B)
Serial Port (UART) yes, 6-pin header, populated, J1, 3.3V TTL, (115200 8N1)
JTAG Port yes, 20-pin header, populated, , J13

Flags:
SD Card slot, HDMI 1.4a, RGB LCD FPC, Arduino expansion, SPI, RTC w/ battery

Additional chips
Advanced PMU,Active-Semi;ACT8865;;1;
HDMI Transmitter;Lattice Semiconductor;Sil9022A;;1;
32-bit AVR microcontroller;Atmel;AT32UC3A4256;;1;
I2C 2Kbit Serial EEPROM;Atmel;AT24MAC4602;;1;
Dual USB High-Side Power Switch;Sipex;SP2526A;;1;
Non-Inverting 3-State Buffer;On Semi;NL17SZ126;;2;
Low Capacitance Double Rail-to-rail ESD Protection Diode;NXP;PRTR5V0U2X;;1;
150mA Ultra Low Supply Current LDO Regulator;On Semi;NCP4682;;1;
Overvoltage Protection Controller;ON Semi;NCP349;;1;

Other

Default IP address: acquired via DHCP
the IP acquired via DHCP is used by 232 additional devices
of which 0 are Microchip devices
Default login user: root
Default login password: blank
root:blank credentials used by 2 additional devices
of which 0 are Microchip devices

3rd Party Firmware Support OpenWrt • (List | Dev | DLs)
Retail
(Est.) release date January 2015
(Est.) initial retail price (in USD): $99
ASIN B0118732AS Flag of the United States.svg
Country of manuf China
 CPU1 brandFLA1RAM1
Microchip SAMA5D2 ICPAtmel0 MiB0 B <br />0 Kib <br />0 KiB <br />0 Mib <br />0 GiB <br />512 MiB536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br />
Microchip SAMA5D2 PTC EKAtmel512 MiB536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br />512 MiB536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br />
Microchip SAMA5D2 Xplained UltraAtmel512 MiB536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br />512 MiB536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br />
Microchip SAMA5D27 SOM1 EKAtmel0 MiB0 B <br />0 Kib <br />0 KiB <br />0 Mib <br />0 GiB <br />128 MiB134,217,728 B <br />1,048,576 Kib <br />131,072 KiB <br />1,024 Mib <br />0.125 GiB <br />
Microchip SAMA5D27 WLSOM1 EKAtmel8 MiB8,388,608 B <br />65,536 Kib <br />8,192 KiB <br />64 Mib <br />0.00781 GiB <br />256 MiB268,435,456 B <br />2,097,152 Kib <br />262,144 KiB <br />2,048 Mib <br />0.25 GiB <br />
Microchip SAMA5D3 XplainedAtmel256 MiB268,435,456 B <br />2,097,152 Kib <br />262,144 KiB <br />2,048 Mib <br />0.25 GiB <br />256 MiB268,435,456 B <br />2,097,152 Kib <br />262,144 KiB <br />2,048 Mib <br />0.25 GiB <br />
Microchip SAMA5D4 Xplained UltraAtmel512 MiB536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br />512 MiB536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br />

For a list of all currently documented Atmel chipsets with specifications, see Atmel.
For a list of all currently documented Micrel (Kendin) chipsets with specifications, see Micrel.

For a list of all currently documented Microchip devices with specifications, see Microchip.

Overview

Hardware specification

@528MHz (ARM Cortex A5)
  • Memory: 512MB (SDRAM) DDR2
  • Storage: 512MB NAND,
TF card (max.128GB)/MMC card
  • Video Output: HDMI 1.4a or TFT LCD
  • Network: 1x Fast Ethernet port
  • USB: 2x USB 2.0 Host, 1x Micro USB Device
  • Power Source: 5V 2A via microUSB

Links of Interest

Flashing

Flashing OpenWrt

OpenWrt Target: at91
OpenWrt Subtarget: sama5
OpenWrt Package architecture: arm_cortex-a5_vfpv4
Support started version: 18.06.1
Current supported version: 24.10.3
WLAN Comment: No WLAN
Comment:
Arduino compatible headers

Please insert instructions here
