Microchip SAMA7G5 EK

From TechInfoDepot
Jump to navigationJump to search
bgn (N150)
SAMA7G54 Evaluation Kit

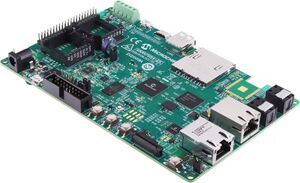

Microchip SAMA7G5 EK.jpg
Homepage Product page
3rd Party Firmware
dd-wrt Status Unknown
OpenWrt Supported
Tomato any flavor Incompatible
Gargoyle Status Unknown
Platform
BrandModelRev Microchip SAMA7G5 EK
FCC ID none specified
Type single-board computer
CPU1 ☒N Microchip SAMA7G5
CPU1 Type ARM Cortex-A7
CPU1 Speed 1.0 GHz
Flash1 Chip Brand? Model?
Flash1 Size 128 MiB134,217,728 B <br />1,048,576 Kib <br />131,072 KiB <br />1,024 Mib <br />0.125 GiB <br /> (NAND)
RAM1 Size 512 MiB536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br />
RAM1 Chip Brand? Model?
ETH chip1 Microchip SAMA7G5
Switch Microchip SAMA7G5
Ethernet Port Count 1-1GbE x 1-100MbE-LAN
Wired Standard IEEE 802.3i/3u/3ab

802dot11 OUI: none specified

Stock bootloader U-Boot
Expansion IF types eMMC, SD, USB 2.0
USB ports 3
SD/MMC Slots 1
USB Hub Compatible Untested
Power 5 VDC, 2 A
Connector type barrel
Serial Port (UART) yes, 3.3V TTL, (115200 8N1)
JTAG Port yes

Flags:
Bluetooth 5.0

Other
3rd Party Firmware Support OpenWrt • (List | Dev | DLs)
Radio 1
Chip1 Microchip ATWILC3000
Wireless interface OUI none specified
Antenna Connector Type none specified
MIMO status 1x1:1
Wireless Standard IEEE 802.11b/g/n
802.11n up to 150 Mbps
802.11g up to 54 Mbps
802.11b up to 11 Mbps
WiFi Operating Frequency 2.4 GHz

For a list of all currently documented Microchip (SMSC) chipsets with specifications, see Microchip.

For a list of all currently documented Microchip devices with specifications, see Microchip.

150 Mbps - 1SS 2.4GHz 802.11n (40MHz chan.) = N150 class

Flashing

Flashing OpenWrt

On the OpenWrt ToH (techdata entry)
OpenWrt Target: at91
OpenWrt Subtarget: sama7
OpenWrt Package architecture: arm_cortex-a7_neon-vfpv4
Support started version: 22.03.0
Current supported version: 24.10.2
Comment:
2x mikroBUS Click Interfaces, 1x RPi Expansion connector

Please insert instructions here
