Mojo Networks O-105

abgn+ac (AC1300)
802.11ac Tri Band PoE Access Point
3rd Party Firmware
dd-wrt	Status Unknown
OpenWrt	Status Unknown
Tomato any flavor	Incompatible
Platform
Brand • Model • Rev	Mojo Networks O-105
FCC ID	PPQ-WP9333
Type	outdoor access point
CPU1 Y	Qualcomm IPQ4019
CPU1 Type	ARMv7 Cortex-A7
CPU1 Speed	not specified ( 4 cores )
Flash1 Chip	Winbond W25Q256JVFQ x 2
Flash1 Size	64 MiB67,108,864 B <br />524,288 Kib <br />65,536 KiB <br />512 Mib <br />0.0625 GiB <br />
RAM1 Size	256 MiB268,435,456 B <br />2,097,152 Kib <br />262,144 KiB <br />2,048 Mib <br />0.25 GiB <br />
RAM1 Chip	Micron MT41K128M16JT-125 IT:K
ETH chip1	Qualcomm IPQ4019
ETH chip2	Qualcomm Atheros QCA8075
Ethernet Port Count	2-1GbE-LAN
Wired Standard	IEEE 802.3i/3u/3ab
802dot11 OUI: none specified
Expansion IF types	none specified
PoE	802.3at, standard
Power	? VDC, ? A
Flags: Wi-Fi 5, Bluetooth 4.1 LE, 256QAM
Additional chips 2.4GHz Power Amplifier IC;Microsemi;LX5533LQ;MSC, 5533, 624C;2; 5GHz RF Power Amplifier Module;RFMD;RFPA5542;PA5542, OVAL;4; Bluetooth 4.1 SoC;Cambridge Silicon Radio (CSR);CSR8811;CSR, 8811, A08U, K54SBE10;1;
Other
Default IP address: 192.168.1.1 the IP 192.168.1.1 is used by 1359 additional devices of which 0 are Mojo Networks devices
Manuf/OEM/ODM	Lite-On WP9333
Retail
FCC approval date	23 January 2018
Country of manuf	Taiwan
Radio 1
Chip1	Qualcomm IPQ4019
Wireless interface OUI	none specified
Antenna Connector Type	none specified
MIMO status	2x2:2
Wireless Standard	IEEE 802.11b/g/n
n-QAM	up to 400 Mbps
802.11n	up to 300 Mbps
802.11g	up to 54 Mbps
802.11b	up to 11 Mbps
WiFi Operating Frequency	2.4 GHz
Radio 2
Chip1	Qualcomm IPQ4019
Wireless interface OUI	none specified
Antenna Connector Type	none specified
MIMO status	2x2:2
Wireless Standard	IEEE 802.11a/n/ac
802.11ac	up to 867 Mbps
802.11n	up to 300 Mbps
802.11a	up to 54 Mbps
WiFi Operating Frequency	5 GHz
FCC ID Lite-On WP9331 PPQ-WP9333 Lite-On WP9333 PPQ-WP9333 PPQ-WM862FEMD

For a list of all currently documented Qualcomm chipsets with specifications, see Qualcomm.
For a list of all currently documented Qualcomm Atheros (QCA) chipsets with specifications, see Qualcomm Atheros.

For a list of all currently documented Mojo Networks devices with specifications, see Mojo Networks.

• 400 Mbps - 2SS 2.4GHz 802.11n (40MHz chan., 256-QAM),

• 867 Mbps - 2SS 5GHz 802.11ac (80MHz chan.) = AC1300 class

Overview

Other models covered by this FCC entry:

• [Fortinet FAP-224E]
• Lite-On WP9333
• Lite-On WP9331(-FM)
• Mojo Networks O-105

- Listed in FCC label doc but nowhere else.

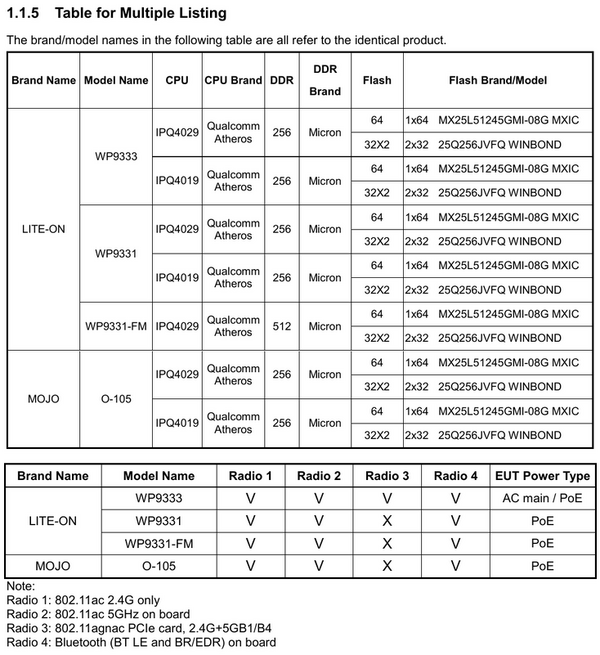

Each of these models may contain a Qualcomm IPQ4019 or a IPQ4029

and various RAM/flash chips as shown in the image of the table

below from the Test Report DTS BLE.

The third radio provided by the Lite-On WM862FEMD

may operate at either 2.4GHz or 5GHz.

See also

• List of Tri-Band Wireless Devices#AC2200

WP9333 Model Details
