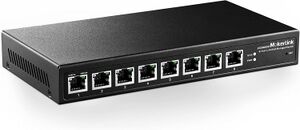

MokerLink 2G080GM
From TechInfoDepot
Jump to navigationJump to search
| 8 Port 2.5G Ethernet Switch | |
 | |
| 3rd Party Firmware | |
|---|---|
| dd-wrt | Status Unknown |
| OpenWrt | Supported |
| Tomato any flavor | Incompatible |
| Gargoyle | Status Unknown |
| Platform | |
| Brand • Model • Rev | MokerLink 2G080GM |
CPU1  | Realtek RTL9303 |
| CPU1 Type | MIPS 34Kc |
| CPU1 Speed | 800 MHz |
| Flash1 Chip | Fudan Micro FM25Q128 |
| Flash1 Size | 16 MiB16,777,216 B <br />131,072 Kib <br />16,384 KiB <br />128 Mib <br />0.0156 GiB <br /> (SPI NOR) |
| RAM1 Size | 128 MiB134,217,728 B <br />1,048,576 Kib <br />131,072 KiB <br />1,024 Mib <br />0.125 GiB <br /> |
| ETH chip1 | Realtek RTL9303 |
| Switch Chip1 | Realtek RTL9303 |
| Switch Chip2 | Realtek RTL8221B |
| Switch Chip3 | Realtek RTL8221B |
| Switch Chip4 | Realtek RTL8221B |
| Switch Chip5 | Realtek RTL8221B |
| Switch Chip6 | Realtek RTL8221B |
| Switch Chip7 | Realtek RTL8221B |
| Switch Chip8 | Realtek RTL8221B |
| Switch Chip9 | Realtek RTL8221B |
| Ethernet Port Count | 8-2.5GbE |
| Ethernet connector | 8P8C |
| Wired Standard | IEEE 802.3i/3u/3ab/3bz |
| Auto-MDIX | unspecified |
| Switch Class | managed |
|
Ethernet OUI: none specified | |
| Expansion IF types | none specified |
| Stock bootloader | U-Boot 2011.12 Vendor Specific |
| Serial Port (UART) | yes, 38400 8N1, no flow control |
|
| |
| 3rd Party Firmware Support |
OpenWrt • (List | Dev | DLs) |
For a list of all currently documented Realtek chipsets with specifications, see Realtek.
Flashing
 | NOTE: During configuration or flashing a device, the only things that should be hooked to the device is the computer and power. |
Flashing OpenWrt
 | The development branch can contain experimental code that is under active development and should not be used for production environments. Snapshot images may support additional hardware; however, it is experimental, considered unstable, and sometimes won't compile. |
| Prebuilt snapshot images do not come with any web interface or GUI. You will need to be comfortable using a command line and remote shell to install one yourself → How to install LuCI |
Target: realtek
Subtarget: rtl930x
Package architecture: mips_24kc
Supported Since Commit
Support started version: unknown
Current supported version: snapshot
Subtarget: rtl930x
Package architecture: mips_24kc
Supported Since Commit
Support started version: unknown
Current supported version: snapshot
LAN Hardware: RTL9303 port 28, fixed internal 1 Gbit/s link
WLAN Hardware: none
WLAN Comment: No WLAN
Installation method(s):
unknown
WLAN Hardware: none
WLAN Comment: No WLAN
Installation method(s):
unknown
Please insert instructions here
