NEC Aterm WG1800HP2

From TechInfoDepot
Jump to navigationJump to search
multiple revisions of this device, use caution
abgn+ac (AC1750)
AC1750 Wireless Router

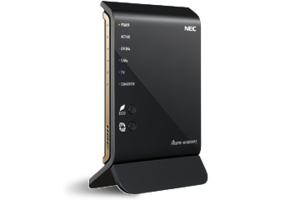

NEC Aterm WG1800HP2.png
Homepage Product page
3rd Party Firmware
dd-wrt Status Unknown
OpenWrt Supported
Tomato any flavor Incompatible
Gargoyle Status Unknown
Platform
BrandModelRev NEC Aterm WG1800HP2
FCC ID none specified
Type wireless router
CPU1 checkY Qualcomm Atheros QCA9558
CPU1 Type MIPS 74Kc
CPU1 Speed not specified
Flash1 Chip Macronix MX25L12845EMI-10G
Flash1 Size 16 MiB16,777,216 B <br />131,072 Kib <br />16,384 KiB <br />128 Mib <br />0.0156 GiB <br /> (SPI NOR)
RAM1 Size 128 MiB134,217,728 B <br />1,048,576 Kib <br />131,072 KiB <br />1,024 Mib <br />0.125 GiB <br /> (DDR2)
RAM1 Chip Nanya NT5TU32M16DG-AC x 2
ETH chip1 Qualcomm Atheros QCA9558
Switch Atheros AR8327
Ethernet Port Count 1-1GbE-WAN
4-1GbE-LAN
Wired Standard IEEE 802.3i/3u/3ab

802dot11 OUI: none specified

Stock bootloader U-Boot
Expansion IF types USB 2.0
USB ports 1
USB Hub Compatible Untested
Power 12 VDC, 1.5 A
Connector type barrel
Serial Port (UART) yes, 3.3V TTL, (9600 8N1)
Other
3rd Party Firmware Support OpenWrt • (List | Dev | DLs)
Radio 1
Chip1 Qualcomm Atheros QCA9558
Wireless interface OUI none specified
Antenna Connector Type none specified
MIMO status 3x3:3
Wireless Standard IEEE 802.11b/g/n
802.11n up to 450 Mbps
802.11g up to 54 Mbps
802.11b up to 11 Mbps
WiFi Operating Frequency 2.4 GHz
Radio 2
Chip1 Qualcomm Atheros QCA9880
Wireless interface OUI none specified
Antenna Connector Type none specified
MIMO status 3x3:3
Wireless Standard IEEE 802.11a/n/ac
802.11ac up to 1300 Mbps
802.11n up to 450 Mbps
802.11a up to 54 Mbps
WiFi Operating Frequency 5 GHz
 CPU1 brandRadio1 chip1 brandRadio2 chip1 brand
NEC Aterm WG1800HPQualcomm AtherosQualcomm AtherosQualcomm Atheros
NEC Aterm WG1800HP2Qualcomm AtherosQualcomm AtherosQualcomm Atheros

For a list of all currently documented Atheros (QCA) chipsets with specifications, see Atheros.
For a list of all currently documented Qualcomm Atheros (QCA) chipsets with specifications, see Qualcomm Atheros.

For a list of all currently documented NEC devices with specifications, see NEC.

1300 Mbps - 3SS 5GHz 802.11ac (80MHz chan.),
450 Mbps - 3SS 2.4GHz 802.11n (40MHz chan.) = AC1750 class

Flashing

Flashing OpenWrt

On the OpenWrt ToH (techdata entry)
OpenWrt Target: ath79
OpenWrt Subtarget: generic
OpenWrt Package architecture: mips_24kc
Support started version: 24.10.0
Current supported version: 24.10.2
WLAN Comment:
MIMO 3x3:3 on both bands
Comment:
USB NEC uPD720114
