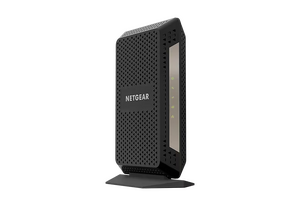

Netgear CM1000

From TechInfoDepot
Jump to navigationJump to search
DOCSIS 3.1 Ultra-High Speed Cable Modem
Homepage
Support
Wikipedia
3rd Party Firmware
dd-wrt
Status Unknown
OpenWrt
Status Unknown
Tomato any flavor
Status Unknown
Platform
BrandModelRev
Netgear CM1000
Type
cable modem
CPU1
Broadcom BCM3390
CPU1 Type
ARM
CPU1 Speed
1.5 GHz ( 2 cores )
Flash1 Chip
Brand? Model?
Flash1 Size
128 MiB134,217,728 B <br />1,048,576 Kib <br />131,072 KiB <br />1,024 Mib <br />0.125 GiB <br />
RAM1 Size
256 MiB268,435,456 B <br />2,097,152 Kib <br />262,144 KiB <br />2,048 Mib <br />0.25 GiB <br />
RAM1 Chip
Brand? Model?
ETH chip1
Broadcom BCM3390
Cable Modem Spec
DOCSIS 3.0: (32 x 8)
Ethernet Port Count
1-1GbE-LAN
Wired Standard
IEEE 802.3i/3u/3ab
Expansion IF types
none specified
Flags:
DOCSIS 3.1
Retail
(Est.) release date January 2017
(Est.) initial retail price (in USD): $180
ASIN B01I5TJGSE Flag of the United States.svg

For a list of all currently documented Broadcom chipsets with specifications, see Broadcom.

For a list of all currently documented Netgear device with specifications, see Netgear.

Overview

  • 2 OFDM downstream & 2 OFDM upstream channels
for DOCSIS 3.1 connection
  • 32 downstream and 8 upstream channels
for DOCSIS 3.0 connection
