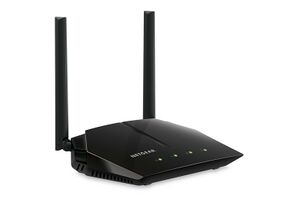

Netgear R6080

abgn+ac (AC10002S700)
AC1000 Dual Band WiFi Router
Homepage	Product page
Support	Support page
Wikipedia	Netgear
WikiDevi.wi-cat.ru	Netgear R6080
3rd Party Firmware
dd-wrt	Status Unknown
OpenWrt	Supported
Tomato any flavor	Incompatible
Gargoyle	Status Unknown
Platform
Brand • Model • Rev	Netgear R6080
FCC ID	PY316400359
IC ID	4054A-16400358
Type	wireless router
CPU1 Y	MediaTek MT7628A
CPU1 Type	MIPS 24KEc
CPU1 Speed	580 MHz
Flash1 Chip	Brand? Model?
Flash1 Size	8 MiB 8,388,608 B <br />65,536 Kib <br />8,192 KiB <br />64 Mib <br />0.00781 GiB <br />
RAM1 Size	64 MiB 67,108,864 B <br />524,288 Kib <br />65,536 KiB <br />512 Mib <br />0.0625 GiB <br />
RAM1 Chip	Nanya NT5TU32M16EG-AC
ETH chip1	MediaTek MT7628A
Switch	MediaTek MT7628A
Ethernet Port Count	1-100MbE-WAN 4-100MbE-LAN
Wired Standard	IEEE 802.3i/3u
802dot11 OUI: none specified
Stock bootloader	U-Boot
Expansion IF types	USB 2.0
USB ports	1
USB Hub Compatible	Untested
Power	12 VDC, 1 A
Connector type	barrel
Serial Port (UART)	yes, 3.3V TTL, (57600 8N1)
Other
Default IP address: 192.168.1.1 the IP 192.168.1.1 is used by 1359 additional devices of which 111 are Netgear devices Default login user: admin Default login password: password admin:password credentials used by 428 additional devices of which 307 are Netgear devices
3rd Party Firmware Support	OpenWrt • (List | Dev | DLs)
Retail
FCC approval date	10 March 2017
Newegg	N82E16833122715
ASIN	B071J24FNY
Country of manuf	China
Radio 1
Chip1	MediaTek MT7628A
Wireless interface OUI	none specified
Antenna Connector Type	U.FL
MIMO status	2x2:2
Wireless Standard	IEEE 802.11b/g/n
802.11n	up to 300 Mbps
802.11g	up to 54 Mbps
802.11b	up to 11 Mbps
WiFi Operating Frequency	2.4 GHz
Radio 2
Chip1	MediaTek MT7628A
Wireless interface OUI	none specified
Antenna Connector Type	U.FL
MIMO status	2x2:2
Wireless Standard	IEEE 802.11a/n/ac
802.11ac	up to 700 Mbps
802.11n	up to 300 Mbps
802.11a	up to 54 Mbps
WiFi Operating Frequency	2.4 GHz

For a list of all currently documented MediaTek chipsets with specifications, see MediaTek.

For a list of all currently documented Netgear devices with specifications, see Netgear.

• 300 Mbps - 2SS 2.4GHz 802.11n (40MHz chan.),

• 700 Mbps - 2SS 5GHz 802.11ac (details unknown) = AC1000 class

Overview

Web GUI: http://routerlogin.net

The hardware is identical to the Netgear R6120 but the 5GHz radio may be limited to 700Mbps in software for this model.

"CFR00C-1.6MM" and "S51004PN368A1" are silkscreened on the board in the FCC photos.

Links of Interest

On the OpenWrt Wiki

Flashing

Flashing OpenWrt

On the OpenWrt ToH (techdata entry)
On the OpenWrt Wiki

Target: ramips
Subtarget: mt76x8
Package architecture: mipsel_24kc
Supported Since Commit
Support started version: 21.02.0
Current supported version: 25.12.2

LAN Hardware: MediaTek MT7628A
WLAN Hardware: MediaTek MT7628A, MediaTek MT7612E
WLAN Comment: MIMO 2x2:2 on both bands
Installation method(s):
see git-commit

git • >>

ramips: add support for Netgear R6080 This adds support for the Netgear R6080, aka Netgear AC1000. The R6080 has almost the same hardware as the Netgear R6120, aka Netgear AC1200, but it lacks the USB port, has only 8 MiB flash and uses a different SERCOMM_HWID. Specification: SoC: MediaTek MT7628 (580 MHz) Flash: 8 MiB RAM: 64 MiB Wireless: 2.4Ghz (builtin) and 5Ghz (MT7612E) LAN speed: 10/100 LAN ports: 4 WAN speed: 10/100 WAN ports: 1 UART (57600 8N1) on PCB Installation: Flashing OpenWRT from stock firmware requires nmrpflash. Use an ethernet cable to connect to LAN port 1 of the R6080, and power the R6080 off. From the connected workstation, run `nmrpflash -i eth0 -f openwrt-ramips-mt76x8-netgear_r6080-squashfs-factory.img`, replacing eth0 with the appropriate interface (can be identified by running `nmrpflash -L`). Then power on the R6080. After flashing has finished, power cycle the R6080, and it will boot into OpenWRT. Once OpenWRT has been installed, subsequent flashes can use the web interface and sysupgrade files.
