Olimex OLinuXino-MICRO
From TechInfoDepot
Jump to navigationJump to search| Single-board Linux Computer | |
| Homepage | |
|---|---|
| 3rd Party Firmware | |
| dd-wrt |
Status Unknown |
| OpenWrt | |
| Tomato any flavor |
Incompatible |
| Gargoyle |
Status Unknown |
| Platform | |
| Brand • Model • Rev |
Olimex OLinuXino-MICRO Rev B |
| Type |
single-board computer |
| CPU1 |
Freescale i.MX233 |
| CPU1 Type |
ARM926J |
| CPU1 Speed |
454 MHz |
| Flash1 Chip |
Brand? Model? |
| Flash1 Size |
0 MiB0 B <br />0 Kib <br />0 KiB <br />0 Mib <br />0 GiB <br /> (Micro SD) |
| RAM1 Size |
64 MiB67,108,864 B <br />524,288 Kib <br />65,536 KiB <br />512 Mib <br />0.0625 GiB <br /> (DDR SDRAM) |
| RAM1 Chip |
SK hynix H5DU5162ETR-E3C |
|
| |
| Stock bootloader |
U-Boot |
| Expansion IF types |
USB 2.0, Micro SD Card slot |
| USB ports |
1 |
| SD/MMC Slots |
1 |
| USB Hub Compatible |
Untested |
| Power |
6-16 VDC, ? A |
| Connector type |
barrel 5.5 mm (OD) 2.1 mm (ID) 9.5 mm (LEN) |
| Serial Port (UART) |
yes, 4-pin header, populated, 3.3V TTL, (115200 8N1) |
| JTAG Port |
yes, 8-pin header, unpopulated |
|
Flags: Micro SD Card slot, Video out (TV PAL/NTSC), GPIO | |
| Other | |
|
| |
| 3rd Party Firmware Support | |
| Retail | |
| (Est.) release date | June 2012 |
| Country of manuf | Bulgaria |
For a list of all currently documented Freescale (NXP) SoC's with specifications, see Freescale.
For a list of all currently documented Olimex device with specifications, see Olimex.
Overview
Hardware specification
- CPU: Freescale i.MX233 @454MHz
- SoC: MCIMX233CAG4C (ARM926J)
- Memory: 64MB (DDR) DRAM
- Storage: TF card (max.32GB)/MMC card
- USB: 1x USB 2.0 (Host) ports
- Power Source: 6-16V via barrel
Links of Interest
- OSHW certified Open Source Hardware with UID BG000048
Flashing
 | NOTE: During configuration or flashing a device, the only things that should be hooked to the device is the computer and power. |
Flashing OpenWrt
 | This device is NOT RECOMMENDED for future use with OpenWrt due to low flash/ram.
DO NOT BUY DEVICES WITH 8MB FLASH / 64MB RAM if you intend to flash an up-to-date and secure OpenWrt version onto it! See 8/64 warning for details. This device does not have sufficient resources (flash and/or RAM) to provide secure and reliable operation. This means that you will not be able to install many packages, and that you might experience crashes due to OOM situations more or less often. See OpenWrt on 8/64 devices what you can do now. |
On the OpenWrt ToH (techdata entry)
On the OpenWrt Wiki
OpenWrt Target: mxs
OpenWrt Subtarget: generic
OpenWrt Package architecture: arm_arm926ej-s
Support started version: 14.07
Current supported version: 23.05.5
On the OpenWrt Wiki
OpenWrt Target: mxs
OpenWrt Subtarget: generic
OpenWrt Package architecture: arm_arm926ej-s
Support started version: 14.07
Current supported version: 23.05.5
Please insert instructions here
Pictures

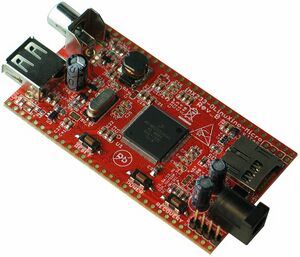

Board Top
