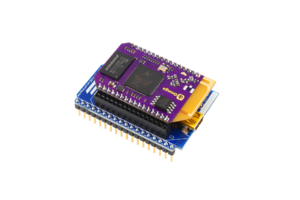

Onion Omega
From TechInfoDepot
Jump to navigationJump to search
bgn (N150) | |||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Single Board Computer | |||||||||||||||||||||||||
![]() | |||||||||||||||||||||||||
3rd Party Firmware | |||||||||||||||||||||||||
dd-wrt | Status Unknown | ||||||||||||||||||||||||
OpenWrt | Supported | ||||||||||||||||||||||||
Tomato any flavor | Incompatible | ||||||||||||||||||||||||
Gargoyle | Status Unknown | ||||||||||||||||||||||||
Platform | |||||||||||||||||||||||||
Brand • Model • Rev | Onion Omega | ||||||||||||||||||||||||
FCC ID | none specified | ||||||||||||||||||||||||
Type | single-board computer | ||||||||||||||||||||||||
CPU1 ![]() | Atheros AR9331 | ||||||||||||||||||||||||
CPU1 Type | MIPS 24Kc | ||||||||||||||||||||||||
CPU1 Speed | 400 MHz | ||||||||||||||||||||||||
Flash1 Chip | Brand? Model? | ||||||||||||||||||||||||
Flash1 Size | 16 MiB16,777,216 B <br />131,072 Kib <br />16,384 KiB <br />128 Mib <br />0.0156 GiB <br /> | ||||||||||||||||||||||||
RAM1 Size | 64 MiB67,108,864 B <br />524,288 Kib <br />65,536 KiB <br />512 Mib <br />0.0625 GiB <br /> | ||||||||||||||||||||||||
RAM1 Chip | Brand? Model? | ||||||||||||||||||||||||
802dot11 OUI: none specified | |||||||||||||||||||||||||
Stock bootloader | U-Boot | ||||||||||||||||||||||||
Expansion IF types | USB 2.0 | ||||||||||||||||||||||||
USB ports | 1 | ||||||||||||||||||||||||
USB Hub Compatible | Untested | ||||||||||||||||||||||||
Power | 5 VDC, ? A | ||||||||||||||||||||||||
Serial Port (UART) | yes, 3.3V TTL, (115200 8N1) | ||||||||||||||||||||||||
| |||||||||||||||||||||||||
| |||||||||||||||||||||||||
Other | |||||||||||||||||||||||||
| |||||||||||||||||||||||||
3rd Party Firmware Support |
OpenWrt • (List | Dev | DLs) | ||||||||||||||||||||||||
Retail | |||||||||||||||||||||||||
Availability | End of Life | ||||||||||||||||||||||||
Radio 1 | |||||||||||||||||||||||||
Chip1 | Atheros AR9331 | ||||||||||||||||||||||||
Wireless interface OUI | none specified | ||||||||||||||||||||||||
Antenna Connector Type | none specified | ||||||||||||||||||||||||
MIMO status | 1x1:1 | ||||||||||||||||||||||||
Wireless Standard | IEEE 802.11b/g/n | ||||||||||||||||||||||||
802.11n | up to 150 Mbps | ||||||||||||||||||||||||
802.11g | up to 54 Mbps | ||||||||||||||||||||||||
802.11b | up to 11 Mbps | ||||||||||||||||||||||||
WiFi Operating Frequency | 2.4 GHz | ||||||||||||||||||||||||
|
For a list of all currently documented Atheros (QCA) chipsets with specifications, see Atheros.
For a list of all currently documented Onion devices with specifications, see Onion.
- • 150 Mbps - 1SS 2.4GHz 802.11n (40MHz chan.) = N150 class
Flashing
![]() | NOTE: During configuration or flashing a device, the only things that should be hooked to the device is the computer and power. |
Flashing OpenWrt
On the OpenWrt ToH (techdata entry)
OpenWrt Target: ath79
OpenWrt Subtarget: generic
OpenWrt Package architecture: mips_24kc
Support started version: 17.01.0
Current supported version: 24.10.2
LAN Comment:
LAN is only available in combination with an optional expansion dock
OpenWrt Target: ath79
OpenWrt Subtarget: generic
OpenWrt Package architecture: mips_24kc
Support started version: 17.01.0
Current supported version: 24.10.2
LAN Comment:
LAN is only available in combination with an optional expansion dock
Please insert instructions here
