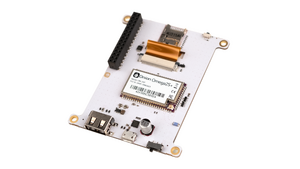

Onion Omega2 Dash
bgn (N150) | |||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Wi-Fi-enabled Linux Computer With Touchscreen | |||||||||||||||||||||||||
Homepage | Product page | ||||||||||||||||||||||||
WikiDevi.wi-cat.ru | Onion Omega2 Dash | ||||||||||||||||||||||||
3rd Party Firmware | |||||||||||||||||||||||||
dd-wrt | Status Unknown | ||||||||||||||||||||||||
OpenWrt | Supported | ||||||||||||||||||||||||
Tomato any flavor | Incompatible | ||||||||||||||||||||||||
Gargoyle | Status Unknown | ||||||||||||||||||||||||
Platform | |||||||||||||||||||||||||
Brand • Model • Rev | Onion Omega | ||||||||||||||||||||||||
Model Part Number | OM-02DASH | ||||||||||||||||||||||||
FCC ID | 2AJVP-OMEGA2S | ||||||||||||||||||||||||
Type | single-board computer | ||||||||||||||||||||||||
CPU1 ![]() | MediaTek MT7688A | ||||||||||||||||||||||||
CPU1 Type | MIPS 24KEc | ||||||||||||||||||||||||
CPU1 Speed | 580 MHz | ||||||||||||||||||||||||
Flash1 Chip | Brand? Model? | ||||||||||||||||||||||||
Flash1 Size | 32 MiB33,554,432 B <br />262,144 Kib <br />32,768 KiB <br />256 Mib <br />0.0313 GiB <br /> | ||||||||||||||||||||||||
RAM1 Size | 128 MiB134,217,728 B <br />1,048,576 Kib <br />131,072 KiB <br />1,024 Mib <br />0.125 GiB <br /> | ||||||||||||||||||||||||
RAM1 Chip | Brand? Model? | ||||||||||||||||||||||||
ETH chip1 | MediaTek MT7688A | ||||||||||||||||||||||||
Ethernet Port Count | 1-100MbE-LAN | ||||||||||||||||||||||||
Wired Standard | IEEE 802.3i/3u | ||||||||||||||||||||||||
Stock bootloader | U-Boot Onion Omega Version 4.3.0.3 | ||||||||||||||||||||||||
Stock FW OS | Linux 4.14.81 Ω-ware 0.3.2 (based on OpenWrt 18.06) | ||||||||||||||||||||||||
Expansion IF types | USB 2.0, Micro SD Card slot | ||||||||||||||||||||||||
USB ports | 1 | ||||||||||||||||||||||||
SD/MMC Slots | 1 | ||||||||||||||||||||||||
USB Hub Compatible | Untested | ||||||||||||||||||||||||
Power | 5 VDC, ? A | ||||||||||||||||||||||||
Connector type | USB Female Micro-B | ||||||||||||||||||||||||
Serial Port (UART) | yes, USB Female Micro-B, (115200 8N1), | ||||||||||||||||||||||||
Flags: Micro SD Card slot, Touchscreen, I2S, I2C, SPI, GPIO | |||||||||||||||||||||||||
Additional chips | |||||||||||||||||||||||||
Other | |||||||||||||||||||||||||
Default SSID: Omega-XXXX (3 addl. devices) | |||||||||||||||||||||||||
3rd Party Firmware Support |
OpenWrt • (List | Dev | DLs) | ||||||||||||||||||||||||
Retail | |||||||||||||||||||||||||
FCC approval date | 22 February 2017 | ||||||||||||||||||||||||
(Est.) release date | April 2020 | ||||||||||||||||||||||||
(Est.) initial retail price (in USD): | $69 | ||||||||||||||||||||||||
Country of manuf | China | ||||||||||||||||||||||||
Radio 1 | |||||||||||||||||||||||||
Chip1 | MediaTek MT7688A | ||||||||||||||||||||||||
Wireless interface OUI | 40:A3:6B | ||||||||||||||||||||||||
Antenna Connector Type | U.FL | ||||||||||||||||||||||||
MIMO status | 1x1:1 | ||||||||||||||||||||||||
Wireless Standard | IEEE 802.11b/g/n | ||||||||||||||||||||||||
802.11n | up to 150 Mbps | ||||||||||||||||||||||||
802.11g | up to 54 Mbps | ||||||||||||||||||||||||
802.11b | up to 11 Mbps | ||||||||||||||||||||||||
WiFi Operating Frequency | 2.4 GHz | ||||||||||||||||||||||||
| |||||||||||||||||||||||||
|
For a list of all currently documented MediaTek chipsets with specifications, see MediaTek.
For a list of all currently documented Onion devices with specifications, see Onion.
- • 150 Mbps - 1SS 2.4GHz 802.11n (40MHz chan.) = N150 class
Overview
Links of Interest
Source
Reviews
- Onion Omega2 Dash Enables Touch-based UI’s on CNXSOFT
- Onion's Omega2 Dash Is an IoT Platform for All-in-One Touch-Driven Projects on hackster.io
Flashing
![]() | NOTE: During configuration or flashing a device, the only things that should be hooked to the device is the computer and power. |
Flashing OpenWrt
Current supported version: Reported on WikiDevi
Please insert instructions here
