Orange Pi 3

From TechInfoDepot
Jump to navigationJump to search
multiple revisions of this device, use caution
abgn+ac (AC600)
Open-source Single-board Computer

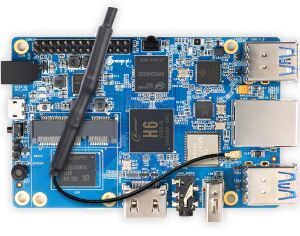

Orange Pi 3.jpg
Homepage Product page
WikiDevi.wi-cat.ru Orange Pi 3
3rd Party Firmware
dd-wrt Status Unknown
OpenWrt Status Unknown
Tomato any flavor Incompatible
Platform
BrandModelRev Orange Pi OPI 3 V1.2
FCC ID (fcc.io) none specified
FCC ID (fcc.report) none specified
Type single-board computer
CPU1 checkY Allwinner H6
CPU1 Type ARMv8-A Cortex-A53
CPU1 Speed 1.8 GHz ( 4 cores )
Flash1 Chip Brand? Model?
Flash1 Size 8 GiB 8,192 MiB <br />8,589,934,592 B <br />67,108,864 Kib <br />8,388,608 KiB <br />65,536 Mib <br /> (eMMC)
RAM1 Size 1 GiB 1,024 MiB <br />1,073,741,824 B <br />8,388,608 Kib <br />1,048,576 KiB <br />8,192 Mib <br /> (LPDDR3 SDRAM)
RAM1 Chip Allwinner AW52A8G32
ETH chip1 Allwinner H6
ETH chip2 Realtek RTL8211E
Ethernet Port Count 1-1GbE-LAN
Wired Standard IEEE 802.3i/3u/3ab

802dot11 OUI: none specified

Stock bootloader U-Boot
Stock FW OS Linux
Expansion IF types USB 3.0, MicroSD Card slot
USB ports 4
SD/MMC Slots 1
USB Hub Compatible Untested
Power 5 VDC, 3 A
Connector type barrel
4.0 mm (OD)
1.7 mm (ID)
Serial Port (UART) yes, 3-pin header, (115200 8N1)

Flags:
HDMI out, microphone, GPIO

Other

Default login user: root
Default login password: orangepi
root:orangepi credentials used by 13 additional devices
of which 13 are Orange Pi devices

Manuf/OEM/ODM Shenzhen Xunlong
Retail
(Est.) release date January 2019
(Est.) initial retail price (in USD): $30
Country of manuf China
Radio 1
Radio1 module AMPAK AP6256
Radio1 module IF SDIO/UART
Chip1 Broadcom BCM43456
Wireless interface OUI none specified
Antenna Connector Type U.FL
MIMO status 1x1:1
Wireless Standard IEEE 802.11a/b/g/n/ac
802.11ac up to 433 Mbps
802.11n up to 150 Mbps
802.11g up to 54 Mbps
802.11b up to 11 Mbps
802.11a up to 54 Mbps
WiFi Operating Frequency 2.4 or 5 GHz
 CPU1 brandRadio1 chip1 brandRadio1 chip2 brand
Orange Pi 3AllwinnerBroadcom
Orange Pi 3 LTSAllwinnerUnisoc
Orange Pi 3B (8 GB)RockchipUnisoc

For a list of all currently documented Allwinner SoC's with specifications, see Allwinner.
For a list of all currently documented Broadcom chipsets with specifications, see Broadcom.
For a list of all currently documented Realtek chipsets with specifications, see Realtek.

For a list of all currently documented Orange Pi devices with specifications, see Orange Pi.

150 Mbps - 1SS 2.4GHz 802.11n (40MHz chan.),
433 Mbps - 1SS 5GHz 802.11ac (80MHz chan.) = AC600 class

Overview

Quad-core ARM (Cortex-A55), 22nm; GPU: Mali G52 2EE
RAM: 2GB/4GB/8GB (LPDDR4/4X); Wi-Fi 5 + BT 5.0 BLE

Hardware specification

GPU: Mali-T720 MP2 @600MHz
  • Memory: 1GB/2GB (LPDDR3) SDRAM (shared w/ GPU)
  • Onboard Storage: TF card (max.64GB)/MMC card slot
/optional 8GB (eMMC) Flash
SDIO 3.0 - Wi-Fi 802.11abgn/ac, UART/PCM - BT 5.0

See also

Models

Orange Pi seriesHardwareList of SBCsAllwinnerRockchipRDAMediaTek
Orange Pi models • >>

Orange Pi 3 LTSAllwinner H6 • 4x ARM (Cortex-A53) @1.8GHz
Orange Pi 3BRockchip RK3566 • 4x ARM (Cortex-A55) @1.8GHz
Orange Pi 4 LTSRockchip RK3399-T • 2x ARM (Cortex-A72), 4x ARM (Cortex-A53) @1.6GHz
Orange Pi 4AAllwinner T527 • 4x ARM (Cortex-A55) @1.8GHz, 4x ARM (Cortex-A55) @1.4GHz
Orange Pi 4BRockchip RK3399 • 2x ARM (Cortex-A72), 4x ARM (Cortex-A53) @2.0GHz
Orange Pi 5BRockchip RK3588S • 4x ARM (Cortex-A76) @2.4GHz, 4x ARM (Cortex-A55) @1.8GHz
Orange Pi 5 ProRockchip RK3588S • 4x ARM (Cortex-A76) @2.4GHz, 4x ARM (Cortex-A55) @1.8GHz
Orange Pi 5 MaxRockchip RK3588 • 4x ARM (Cortex-A76) @2.4GHz, 4x ARM (Cortex-A55) @1.8GHz
Orange Pi 5 PlusRockchip RK3588 • 4x ARM (Cortex-A76) @2.4GHz, 4x ARM (Cortex-A55) @1.8GHz
Orange Pi 5 UltraRockchip RK3588 • 4x ARM (Cortex-A76) @2.4GHz, 4x ARM (Cortex-A55) @1.8GHz
Orange Pi Lite 2Allwinner H6 • 4x ARM (Cortex-A53) @1.8GHz
Orange Pi Mini 2Allwinner H3 • 4x ARM (Cortex-A7) @1.3GHz
Orange Pi One PlusAllwinner H6 • 4x ARM (Cortex-A53) @1.8GHz
Orange Pi PC 2Allwinner H5 • 4x ARM (Cortex-A53) @1.2GHz
Orange Pi PC PlusAllwinner H3 • 4x ARM (Cortex-A7) @1.3GHz
Orange Pi Plus 2Allwinner H3 • 4x ARM (Cortex-A7) @1.3GHz
Orange Pi Plus 2EAllwinner H3 • 4x ARM (Cortex-A7) @1.3GHz • @
Orange Pi R1 PlusRockchip RK3328 • 4x ARM (Cortex-A53) @1.5GHz
Orange Pi R1 Plus LTSRockchip RK3328 • 4x ARM (Cortex-A53) @1.5GHz
Orange Pi Win PlusAllwinner A64 • 4x ARM (Cortex-A53) @1.2GHz
Orange Pi Zero LTSAllwinner H2+ • 4x ARM (Cortex-A7) @1.2GHz • @
Orange Pi Zero Plus 2Allwinner H3 • 4x ARM (Cortex-A7) @1.2GHz
Orange Pi Zero Plus 2 H5Allwinner H5 • 4x ARM (Cortex-A53) @1.2GHz
Orange Pi Zero 2WAllwinner H618 • 4x ARM (Cortex-A53) @1.5GHz
Orange Pi 3G-IoT-BMediaTek MT6572 • 2x ARM (Cortex-A7) @1.2GHz
