Orange Pi CM5 (4G32G)
From TechInfoDepot
Jump to navigationJump to search
| Orange Pi CM5 (4G32G) Compute Module | |||||||||||||
|
| |||||||||||||
| Homepage | Product page | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WikiDevi.wi-cat.ru | Orange Pi CM5 (4G32G) | ||||||||||||
| 3rd Party Firmware | |||||||||||||
| dd-wrt | Status Unknown | ||||||||||||
| OpenWrt | Status Unknown | ||||||||||||
| Tomato any flavor | Incompatible | ||||||||||||
| Platform | |||||||||||||
| Brand • Model • Rev | Orange Pi OPI CM5 (4G32G) v1.1 | ||||||||||||
| Type | SoM | ||||||||||||
| CPU1 | Rockchip RK3588S | ||||||||||||
| CPU1 Type | ARM Cortex-A76 | ||||||||||||
| CPU1 Type2 | ARM Cortex-A55 | ||||||||||||
| CPU1 Speed | 2.4 GHz ( 4 cores ) | ||||||||||||
| CPU1 Speed2 | 1.8 GHz ( 4 cores ) | ||||||||||||
| Flash1 Chip | SanDisk SDINBDV4-32G | ||||||||||||
| Flash1 Size | 32 GiB 32,768 MiB <br />34,359,738,368 B <br />268,435,456 Kib <br />33,554,432 KiB <br />262,144 Mib <br /> | ||||||||||||
| RAM1 Size | 4 GiB 4,096 MiB <br />4,294,967,296 B <br />33,554,432 Kib <br />4,194,304 KiB <br />32,768 Mib <br /> | ||||||||||||
| RAM1 Chip | Micron MT53E512M32D1ZW-046 WT:B x 2 | ||||||||||||
| ETH chip1 | Rockchip RK3588S | ||||||||||||
|
| |||||||||||||
| Expansion IF types | none specified | ||||||||||||
| Power | 5 VDC, 1.8 A | ||||||||||||
|
| |||||||||||||
|
Additional chips | |||||||||||||
| Other | |||||||||||||
|
| |||||||||||||
| Manuf/OEM/ODM | Shenzhen Xunlong | ||||||||||||
| Retail | |||||||||||||
| (Est.) release date | July 2024 | ||||||||||||
| (Est.) initial retail price (in USD): | $70 | ||||||||||||
| ASIN |
B0DLGZGYCP | ||||||||||||
| Country of manuf | China | ||||||||||||
| |||||||||||||
For a list of all currently documented Rockchip SoC's with specifications, see Rockchip.
For a list of all currently documented Orange Pi devices with specifications, see Orange Pi.
Overview

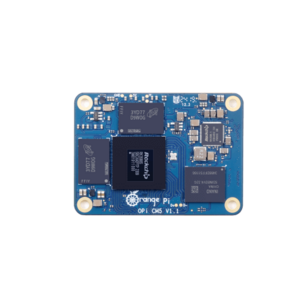

OrangePi logo and "OPi CM5 V1.1" are on top of board.
Hardware specification
- CPU: Rockchip RK3588 @2.4GHz Quad-core ARM (Cortex-A76)
- + @1.8GHz Quad-Core ARM (Cortex-A55)
- GPU: Mali-G610 MP4 (OpenGL ES3.2, OpenCL 2.2); NPU Support 6T,
- VPU (with 8K@60fps VP9 and 8K@30fps H265/H264 decoding)
- Storage: 32GB eMMC 5.1 flash
- Memory: 4GB (LPDDR4) SDRAM
- Power Source: 5V via connectors
