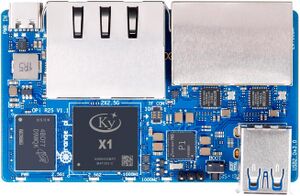

Orange Pi R2S
From TechInfoDepot
Jump to navigationJump to search
| Single Board Computer | |
 | |
| Homepage | Product page |
|---|---|
| 3rd Party Firmware | |
| dd-wrt | Status Unknown |
| OpenWrt | Not Supported |
| Tomato any flavor | Incompatible |
| Platform | |
| Brand • Model • Rev | Orange Pi R2S |
| Type | single-board computer |
CPU1  | Ky X1 |
| CPU1 Type | RISC-V RISC-V AI |
| CPU1 Speed | not specified ( 8 cores ) 64-bit |
| Flash1 Chip | Brand? Model? |
| Flash1 Size | 8 GiB 8,192 MiB <br />8,589,934,592 B <br />67,108,864 Kib <br />8,388,608 KiB <br />65,536 Mib <br /> (eMMC) |
| RAM1 Size | 8 GiB 8,192 MiB <br />8,589,934,592 B <br />67,108,864 Kib <br />8,388,608 KiB <br />65,536 Mib <br /> (LPDDR4X) |
| RAM1 Chip | Brand? Model? |
| ETH chip1 | Brand? Model? |
| ETH chip2 | Realtek RTL8125BG |
| Ethernet Port Count |
2-2.5GbE-WAN 2-1GbE-LAN |
| Wired Standard | IEEE 802.3i/3u/3ab/3bz |
|
| |
| Stock bootloader | U-Boot |
| Stock FW OS | Linux OpenWrt |
| Expansion IF types | USB 2.0, USB 3.0 |
| USB ports | 2 |
| USB Hub Compatible | Untested |
| Power | 5 VDC, 3 A |
| Connector type | USB (Type-C) |
| Serial Port (UART) | Yes, 3-pin debug serial port, 3.3V, 115200, 8N1 |
| JTAG Port | yes, Not populated |
|
| |
|
| |
|
| |
Ky not currently documented.
For a list of all currently documented Realtek chipsets with specifications, see Realtek.
For a list of all currently documented Orange Pi devices with specifications, see Orange Pi.
Flashing
 | NOTE: During configuration or flashing a device, the only things that should be hooked to the device is the computer and power. |
Flashing OpenWrt
Support started version: Not supported
Current supported version: unknown
Current supported version: unknown
Please insert instructions here
