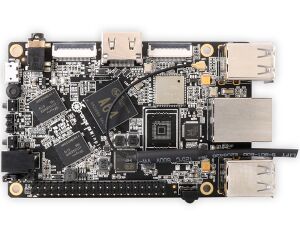

Orange Pi Win Plus
| bgn (N150) | |
|---|---|
| Open-source Single-board Computer | |
|
| |
| Homepage | Product page |
| WikiDevi.wi-cat.ru | Orange Pi Win Plus |
| 3rd Party Firmware | |
| dd-wrt | Status Unknown |
| OpenWrt | Status Unknown |
| Tomato any flavor | Incompatible |
| Gargoyle | Status Unknown |
| Platform | |
| Brand • Model • Rev | Orange Pi Win Plus v1.3 |
| FCC ID | none specified |
| Type | single-board computer |
| CPU1 | Allwinner A64 |
| CPU1 Type | ARMv8-A Cortex-A53 |
| CPU1 Speed | 1.2 GHz ( 4 cores ) 64-bit |
| Flash1 Chip | Macronix MX25L1606EM2I-12G |
| Flash1 Size | 2 MiB 2,097,152 B <br />16,384 Kib <br />2,048 KiB <br />16 Mib <br />0.00195 GiB <br /> |
| RAM1 Size | 2 GiB 2,048 MiB <br />2,147,483,648 B <br />16,777,216 Kib <br />2,097,152 KiB <br />16,384 Mib <br /> (DDR3L SDRAM) |
| RAM1 Chip | SK hynix H5TC4G83AFR-PBA x 4 |
| ETH chip1 | Allwinner A64 |
| ETH chip2 | Realtek RTL8211E |
| Ethernet Port Count | 1-1GbE-LAN |
| Wired Standard | IEEE 802.3i/3u/3ab |
|
802dot11 OUI: none specified | |
| Stock bootloader | U-Boot |
| Stock FW OS | Linux |
| Expansion IF types | USB 2.0, USB 2.0 (OTG), MicroSD Card slot |
| USB ports | 5 |
| SD/MMC Slots | 1 |
| USB Hub Compatible | Untested |
| Power | 5 VDC, 2 A |
| Connector type |
barrel 4.0 mm (OD) 1.7 mm (ID) |
| Serial Port (UART) | yes, 3.3V TTL, 3-pin header, populated, (115200 8N1) |
|
Flags: | |
|
Additional chips | |
| Other | |
|
| |
| Manuf/OEM/ODM | Shenzhen Xunlong |
| 3rd Party Firmware Support | Armbian |
| Retail | |
| (Est.) release date | April 2017 |
| (Est.) initial retail price (in USD): | $35 |
| Country of manuf | China |
| Radio 1 | |
| Radio1 module | AMPAK AP6212 |
| Radio1 module IF | SDIO (module) |
| Chip1 | Broadcom BCM43430 |
| Wireless interface OUI | none specified |
| Antenna Connector Type | U.FL |
| MIMO status | 1x1:1 |
| Wireless Standard | IEEE 802.11b/g/n |
| 802.11n | up to 150 Mbps |
| 802.11g | up to 54 Mbps |
| 802.11b | up to 11 Mbps |
| WiFi Operating Frequency | 2.4 GHz |
For a list of all currently documented Allwinner SoC's with specifications, see Allwinner.
For a list of all currently documented Broadcom chipsets with specifications, see Broadcom.
For a list of all currently documented Realtek chipsets with specifications, see Realtek.
For a list of all currently documented Orange Pi devices with specifications, see Orange Pi.
- • 150 Mbps - 1SS 2.4GHz 802.11n (40MHz chan.) = N150 class
Overview
Hardware specification
- CPU: Allwinner A64 @1.2GHz Quad-core ARM (Cortex-A53)
- GPU: Mali-400MP2 (OpenGL ES 2.0), H.265/HEVC 4K
- Memory: 2GB (DDR3L) SDRAM
- Onboard Storage: 2MB (SPI) Flash,
- TF card (max.32GB)/MMC card slot
- Wi-Fi: AMPAK AP6212 (BCM43430)
- LAN: 1x GbE LAN port
- USB: 4x USB 2.0, 1x USB 2.0 (OTG) ports
- Orange Pi
- Embedded system/single-board computer
- Embedded System Allwinner
- Embedded System A64
- Allwinner
- Embedded System ARMv8-A
- Embedded System Cortex-A53
- Embedded System RTL8211E
- Embedded System Realtek
- Realtek
- Manuf Shenzhen Xunlong
- Embedded System Broadcom
- Embedded System BCM43430
- Broadcom
- Has Mimo Status
- Embedded System IEEE 802.11b/g/n
- Single-Radio Wireless Embedded System
- Wireless Embedded System
- Single-Band
- Embedded System
- English Documentation
