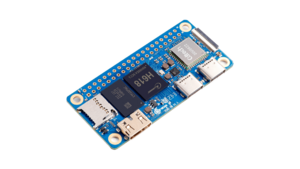

Orange Pi Zero 2W (4G)

From TechInfoDepot
Jump to navigationJump to search
multiple revisions of this device, use caution
abgn+ac (AC600)
Open-source Single-board Computer
Homepage Product page
3rd Party Firmware
dd-wrt Status Unknown
OpenWrt Supported
Tomato any flavor Incompatible
Gargoyle Status Unknown
Platform
BrandModelRev Orange Pi OPI Zero 2W (4G) V1.1.1
FCC ID 2AQ9Y-OPI3LTS
Type single-board computer
CPU1 ☒N Allwinner H618
CPU1 Type ARM Cortex-A53
CPU1 Speed 1.5 GHz ( 4 cores )
Flash1 Chip Zbit Semi ZB25Q128ASIG
Flash1 Size 16 MiB16,777,216 B <br />131,072 Kib <br />16,384 KiB <br />128 Mib <br />0.0156 GiB <br /> (SPI)
RAM1 Size 4 GiB 4,096 MiB <br />4,294,967,296 B <br />33,554,432 Kib <br />4,194,304 KiB <br />32,768 Mib <br /> (LPDDR4 SDRAM)
RAM1 Chip Rayson RS1G32LF4D2BDS-53BT
ETH chip1 Allwinner H618
Ethernet Port Count 1-100MbE-LAN
Wired Standard IEEE 802.3i/3u

802dot11 OUI: none specified

Stock bootloader U-Boot 2018.05
Stock FW OS Linux 4.9.170 Android 12
Expansion IF types USB 2.0, Micro SD Card slot
USB ports 2
USB Hub Compatible Untested
Power 5 VDC, 2 A
Connector type USB (Type-C) Female
Serial Port (UART) yes, 3.3, 115200 / 8N1
Flags:
Bluetooth 5.0, Micro SD Card slot, Mini HDMI 2.0, GPIO, UART, I2C, SPI, PWM

Additional chips
PMIC;X-Powers Limited;AXP313A;;1;
3MHz 1.5/2A Step-Down Converter;ETA Solutions;ETA3409;;1;

Other
Manuf/OEM/ODM Shenzhen Xunlong
3rd Party Firmware Support Orange Pi OS, Ubuntu
, Debian
, OpenWrt • (List | Dev | DLs)
Retail
FCC approval date 31 October 2022
(Est.) release date September 2023
(Est.) initial retail price (in USD): $24
ASIN B0CHM7HN8P Flag of the United States.svg
Country of manuf China
Radio 1
Radio1 module CDTech 20U5622
Radio1 module IF SDIO 3.0
Chip1 Unisoc UWE5622
Wireless interface OUI none specified
Antenna Connector Type MHF4
MIMO status 1x1:1
Wireless Standard IEEE 802.11a/b/g/n/ac
802.11ac up to 433 Mbps
802.11n up to 150 Mbps
802.11g up to 54 Mbps
802.11b up to 11 Mbps
802.11a up to 54 Mbps
WiFi Operating Frequency 2.4 or 5 GHz
 FCC ID
Orange Pi 3 LTS2AQ9Y-OPI3LTS
Orange Pi Zero 2W (1.5G)2AQ9Y-OPI3LTS
 CPU1 brandRadio1 chip1 brandRadio1 chip2 brand
Orange Pi Zero 2W (1.5G)AllwinnerUnisoc
Orange Pi Zero 2W (4G)AllwinnerUnisoc

For a list of all currently documented Allwinner SoC's with specifications, see Allwinner.
For a list of all currently documented Unisoc SoC's with specifications, see Unisoc.

For a list of all currently documented Orange Pi devices with specifications, see Orange Pi.

433 Mbps - 1SS 5GHz 802.11ac (80MHz chan.),
150 Mbps - 1SS 2.4GHz 802.11n (40MHz chan.) = AC600 class

Overview

Hardware specification

Quad-core ARM (Cortex-A53)
  • GPU: Mali-G31 MP2
OpenGL ES 1.0/2.0/3.2
  • Memory: 4GB (LPDDR4) SDRAM
  • Onboard Storage: 16MB (SPI) Flash,
TF card (max.128GB)/MMC card slot
  • Wi-Fi: Unisoc UWE5622 (1T1R) SDIO 3.0,
802.11abgn/ac + BT 5.0, UART/PCM BT
  • USB: 1x USB 2.0, 1x USB 2.0 (OTG Type C) ports
2x USB 2.0 ports via optional expansion board
  • Power: 5V/2A via USB Type C

Links of Interest

Flashing

Flashing OpenWrt

On the OpenWrt ToH (techdata entry)
OpenWrt Target: sunxi
OpenWrt Subtarget: cortexa53
OpenWrt Package architecture: aarch64_cortex-a53
Support started version: unknown
Current supported version: snapshot
LAN Comment:
1x 100Mbit port available via optional expansion board
WLAN Comment:
No driver support for WiFi

Please insert instructions here
