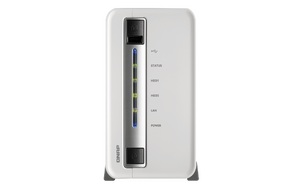

QNAP TS-212P

multiple revisions of this device, use caution

2-Bay Home & SOHO NAS
Homepage	Product page
Downloads	Download page
3rd Party Firmware
dd-wrt	Status Unknown
OpenWrt	Status Unknown
Tomato any flavor	Incompatible
Gargoyle	Status Unknown
Platform
Brand • Model • Rev	QNAP TS-212P
Model Part Number	QO41
Type	NAS enclosure
CPU1 Y	Marvell 88F6282
CPU1 Type	ARMv5
CPU1 Speed	1.6 GHz 32-bit
Flash1 Chip	Micron N25Q128A
Flash1 Size	16 MiB16,777,216 B <br />131,072 Kib <br />16,384 KiB <br />128 Mib <br />0.0156 GiB <br /> (SPI NOR)
RAM1 Size	512 MiB536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br /> (DDR3L)
RAM1 Chip	Micron MT41K256M8DA-125:K x 2
ETH chip1	Marvell 88F6282
ETH chip2	Marvell 88E1318
Ethernet Port Count	1-1GbE-LAN
Wired Standard	IEEE 802.3i/3u/3ab
Ethernet OUI: 00:08:9B (12 E, -)
Stock bootloader	U-Boot 1.1.4 Marvell 3.5.3
Stock FW OS	Linux 3.4.6 QTS 4.2.2
Expansion IF types	USB 2.0, USB 3.0, SATA II
USB ports	3
SATA Ports	2
USB Hub Compatible	Untested
Power	12 VDC, 5 A
Connector type	barrel 5.5 mm (OD) 2.5 mm (ID) 9.5 mm (LEN)
Serial Port (UART)	yes, 4-pin header, populated, CN5, 3.3V TTL, (115200 8N1)
Flags: RTC w/ battery, buzzer, power switch, heatsink, WoL, SNMP
Other
Default IP address: acquired via DHCP the IP acquired via DHCP is used by 256 additional devices of which 2 are QNAP devices
Manuf/OEM/ODM	Brand? QO41 (V2.1)
3rd Party Firmware Support	Debian
Retail
Availability	End of Life
End of Life date	31 December 2020
(Est.) release date	November 2013
(Est.) initial retail price (in USD):	$140
UPC	885022004829 (UPC DB, On eBay)
EAN	4712511124859 (UPC DB, On eBay)
Newegg	N82E16822107131
ASIN	B00G2HZNXO
Country of manuf	Taiwan
CPU1 brand FLA1 RAM1 QNAP TS-212-E Marvell 16 MiB16,777,216 B <br />131,072 Kib <br />16,384 KiB <br />128 Mib <br />0.0156 GiB <br /> 256 MiB268,435,456 B <br />2,097,152 Kib <br />262,144 KiB <br />2,048 Mib <br />0.25 GiB <br /> QNAP TS-212P Marvell 16 MiB16,777,216 B <br />131,072 Kib <br />16,384 KiB <br />128 Mib <br />0.0156 GiB <br /> 512 MiB536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br />

For a list of all currently documented Marvell chipsets with specifications, see Marvell.

For a list of all currently documented QNAP devices with specifications, see QNAP.

Overview

"QO41" and "V2.1" are silkscreened on the board.

See also: QNAP and List of NAS Devices

Hardware specification

• CPU: Marvell 88F6282 @1.6GHz

SoC: Armada 300 (ARMv5)

• Memory: 512MB (DDR3L) SDRAM
• Storage: 16MB (SPI NOR) Flash,

2x SATA II ports

• Network: 1x GbE port
• USB: 1x USB 2.0 (Type A),

2x USB 3.0 (Type A) ports

• Power: 12V, 5A via barrel

Pictures

User Images

•
  Board Top
•
  Board Bottom
