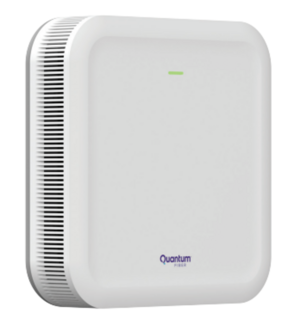

Quantum Fiber 360 Wi-Fi 7 Pods (W1700K)

From TechInfoDepot
Jump to navigationJump to search
multiple revisions of this device, use caution
abgn+ac+ax+be (BE19000)
BE19000 Tri-Band Wi-Fi 7 Router
Quantum Fiber 360 WiFi Pods (W1700K/W1701K)
Support Support page
WikiDevi.wi-cat.ru Quantum Fiber 360 Wi-Fi 7 Pods (W1700K)
3rd Party Firmware
dd-wrt Status Unknown
OpenWrt Status Unknown
Tomato any flavor Incompatible
Platform
BrandModelRev Quantum Fiber 360 Wi-Fi 7 Pods (W1700K)
FCC ID MXF-W1700K
Type wireless router
CPU1 checkY Airoha AN7581
CPU1 Type ARMv8 Cortex-A53
CPU1 Speed 1.3 GHz ( 4 cores )
Flash1 Chip Winbond W25N04KVZEIR
Flash1 Size 512 MiB536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br />
RAM1 Size 2 GiB 2,048 MiB <br />2,147,483,648 B <br />16,777,216 Kib <br />2,097,152 KiB <br />16,384 Mib <br />
RAM1 Chip Micron MT40A512M16TB x 2
ETH chip1 Airoha AN7581
ETH chip2 Realtek RTL8261N
ETH chip3 Realtek RTL8261N
Switch Airoha AN7581
Ethernet Port Count 2-10GbE-WAN
2-1GbE-LAN
Wired Standard IEEE 802.3i/3u/3ab/3bz/an

802dot11 OUI: none specified

Stock bootloader U-Boot
Stock FW OS OpenWrt
Expansion IF types none specified
Power 12 VDC, 5 A
Connector type barrel
Flags:
Wi-Fi 7, EHT320, Bluetooth 5.1, Mesh, WPA3, heatsink, fan

Additional chips
GNSS Chip;Airoha;AG3352Q;;1;
Bluetooth 5.1/Zigbee Chip;Silicon Labs;EFR32MG21;;1;

Other
Manuf/OEM/ODM Gemtek W1700K
Retail
FCC approval date 06 October 2023
Country of manuf Vietnam
Radio 1
Chip1 MediaTek MT7996AV
Chip2 MediaTek MT7976GN
Wireless interface OUI none specified
Antenna Connector Type MHF4
MIMO status 4x4:4
Wireless Standard IEEE 802.11b/g/n/ax/be
802.11be up to 1376 Mbps
802.11ax up to 1148 Mbps
802.11n up to 600 Mbps
802.11g up to 54 Mbps
802.11b up to 11 Mbps
WiFi Operating Frequency 2.4 GHz
Radio 2
Chip1 MediaTek MT7996AV
Chip2 MediaTek MT7977BN
Wireless interface OUI none specified
Antenna Connector Type MHF4
MIMO status 4x4:4
Wireless Standard IEEE 802.11a/n/ac/ax/be
802.11be up to 5765 Mbps
802.11ax up to 2402 Mbps
802.11ac up to 1733 Mbps
802.11n up to 600 Mbps
802.11a up to 54 Mbps
WiFi Operating Frequency 5 GHz
Radio 3
Chip1 MediaTek MT7996AV
Chip2 MediaTek MT7977AN
Wireless interface OUI none specified
Antenna Connector Type MHF4
MIMO status 4x4:4
Wireless Standard IEEE 802.11a/n/ac/ax/be
802.11be up to 11530 Mbps
AX-QAM up to 4804 Mbps
802.11ax up to 2404 Mbps
802.11ac up to 1733 Mbps
802.11n up to 600 Mbps
802.11a up to 54 Mbps
WiFi Operating Frequency 6 GHz
 CPU1 brandRadio1 chip1 brandRadio2 chip1 brand
Quantum Fiber 360 Wi-Fi 7 Pods (W1700K)AirohaMediaTekMediaTek
Quantum Fiber 360 Wi-Fi 7 Pods (W1701K)AirohaMediaTekMediaTek

For a list of all currently documented Airoha (EcoNet) chipsets with specifications, see Airoha.
For a list of all currently documented MediaTek chipsets with specifications, see MediaTek.
For a list of all currently documented Realtek chipsets with specifications, see Realtek.

For a list of all currently documented Quantum Fiber devices with specifications, see Quantum Fiber.

1376 Mbps - 4SS 2.4GHz 802.11be (40MHz chan., 1024-QAM),
5765 Mbps - 4SS 5GHz 802.11be (160MHz chan., 4K-QAM),
11530 Mbps - 4SS 6GHz 802.11be (320MHz chan., 4K-QAM) = BE19000 class

Overview

  • "WAPE-269BE-V01" and "ESX-X21-6401R" is silkscreened on the main board.

See also

Quantum Fiber 360 Wi-Fi 7 Pods (W1701K) • BE19000
W1700K 2x 10G ports • W1701K 2x 2.5G ports
