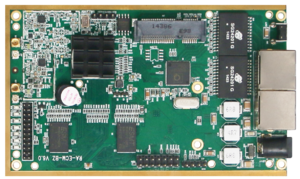

Qxwlan E750G v8 16M
From TechInfoDepot
Jump to navigationJump to search
| bgn (N300) | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wireless Access Point | |||||||||||||||||||||
|
| |||||||||||||||||||||
| 3rd Party Firmware | |||||||||||||||||||||
| dd-wrt | Status Unknown | ||||||||||||||||||||
| OpenWrt | Supported | ||||||||||||||||||||
| Tomato any flavor | Incompatible | ||||||||||||||||||||
| Gargoyle | Status Unknown | ||||||||||||||||||||
| Platform | |||||||||||||||||||||
| Brand • Model • Rev | Qxwlan E750G v8 16M | ||||||||||||||||||||
| FCC ID (fcc.io) | none specified | ||||||||||||||||||||
| FCC ID (fcc.report) | none specified | ||||||||||||||||||||
| Type | access point | ||||||||||||||||||||
| CPU1 | Atheros AR9344 | ||||||||||||||||||||
| CPU1 Type | MIPS 74Kc | ||||||||||||||||||||
| CPU1 Speed | 560 MHz 32-bit | ||||||||||||||||||||
| Flash1 Chip | Brand? Model? | ||||||||||||||||||||
| Flash1 Size | 16 MiB 16,777,216 B <br />131,072 Kib <br />16,384 KiB <br />128 Mib <br />0.0156 GiB <br /> (SPI NOR) | ||||||||||||||||||||
| RAM1 Size | 128 MiB 134,217,728 B <br />1,048,576 Kib <br />131,072 KiB <br />1,024 Mib <br />0.125 GiB <br /> (DDR2) | ||||||||||||||||||||
| RAM1 Chip | Brand? Model? | ||||||||||||||||||||
| ETH chip1 | Atheros AR9344 | ||||||||||||||||||||
| Switch | Atheros AR8327 | ||||||||||||||||||||
| Ethernet Port Count | 2-1GbE-LAN | ||||||||||||||||||||
| Wired Standard | IEEE 802.3i/3u/3ab | ||||||||||||||||||||
|
802dot11 OUI: none specified | |||||||||||||||||||||
| Stock bootloader | U-Boot | ||||||||||||||||||||
| Expansion IF types | Mini PCIe | ||||||||||||||||||||
| Mini PCIe slots | 1 | ||||||||||||||||||||
| Power | 9-48 VDC, ? A | ||||||||||||||||||||
| Serial Port (UART) | yes, 3.3V TTL, (115200 8N1) | ||||||||||||||||||||
| JTAG Port | no | ||||||||||||||||||||
|
| |||||||||||||||||||||
|
| |||||||||||||||||||||
| Other | |||||||||||||||||||||
|
| |||||||||||||||||||||
| 3rd Party Firmware Support |
OpenWrt • (List | Dev | DLs) | ||||||||||||||||||||
| Radio 1 | |||||||||||||||||||||
| Chip1 | Atheros AR9344 | ||||||||||||||||||||
| Wireless interface OUI | none specified | ||||||||||||||||||||
| Antenna Connector Type | none specified | ||||||||||||||||||||
| MIMO status | 2x2:2 | ||||||||||||||||||||
| Wireless Standard | IEEE 802.11b/g/n | ||||||||||||||||||||
| 802.11n | up to 300 Mbps | ||||||||||||||||||||
| 802.11g | up to 54 Mbps | ||||||||||||||||||||
| 802.11b | up to 11 Mbps | ||||||||||||||||||||
| WiFi Operating Frequency | 2.4 GHz | ||||||||||||||||||||
| |||||||||||||||||||||
For a list of all currently documented Atheros (QCA) chipsets with specifications, see Atheros.
- • 300 Mbps - 2SS 2.4GHz 802.11n (40MHz chan.) = N300 class
Flashing
| NOTE: During configuration or flashing a device, the only things that should be hooked to the device is the computer and power. |
Flashing OpenWrt
OpenWrt Target: ath79
OpenWrt Subtarget: generic
OpenWrt Package architecture: mips_24kc
Support started version: 18.06.0
Current supported version: 24.10.5
OpenWrt Subtarget: generic
OpenWrt Package architecture: mips_24kc
Support started version: 18.06.0
Current supported version: 24.10.5
LAN Hardware: Atheros AR8327
WLAN Hardware: Atheros AR9344
WLAN Hardware: Atheros AR9344
Please insert instructions here
