Radxa Cubie A5E

From TechInfoDepot
Jump to navigationJump to search
abgn+ac+ax (AX900)
8 Core Tiny AIoT SBC

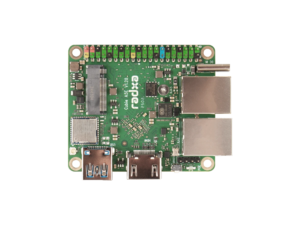

Cubie a5e.png
Homepage Product page
WikiDevi.wi-cat.ru Radxa Cubie A5E
3rd Party Firmware
dd-wrt Status Unknown
OpenWrt Status Unknown
Tomato any flavor Incompatible
Gargoyle Status Unknown
Platform
BrandModelRev Radxa Cubie A5E V1.20
Model Part Number RS500-D4E0J0R38S16
FCC ID (fcc.io) 2AL6KBL-M8800DS2-40
FCC ID (fcc.report) 2AL6KBL-M8800DS2-40
Type single-board computer
CPU1 ☒N Allwinner A527
CPU1 Type ARM Cortex-A55
CPU1 Type2 ARM Cortex-A55
CPU1 Speed 1.8 GHz ( 4 cores )
CPU1 Speed2 1.4 GHz ( 4 cores )
Flash1 Chip Winbond W25Q128JWPQ
Flash1 Size 16 MiB 16,777,216 B <br />131,072 Kib <br />16,384 KiB <br />128 Mib <br />0.0156 GiB <br />
RAM1 Size 4 GiB 4,096 MiB <br />4,294,967,296 B <br />33,554,432 Kib <br />4,194,304 KiB <br />32,768 Mib <br />
RAM1 Chip Micron MT53D1024M32D4DT-046 WT:D
ETH chip1 Allwinner A527
ETH chip2 Maxio MAE0621A
ETH chip3 Maxio MAE0621A
Ethernet Port Count 2-1GbE-LAN
Wired Standard IEEE 802.3i/3u/3ab

802dot11 OUI: none specified

Stock bootloader U-Boot 2018.07
Stock FW OS Linux 5.15.147 Debian 11
Expansion IF types Mini PCIe (NGFF M.2), USB 3.0, USB 2.0 (OTG), Micro SD Card slot, HDMI 2.0
Mini PCIe slots 1
USB ports 2
SD/MMC Slots 1
HDMI 1
USB Hub Compatible Untested
Power 5 VDC, 4 A
Connector type USB (Type C) Female
Serial Port (UART) yes, via GPIO header, 3.3V TTL, (115200 8N1)

Flags:
Micro SD Card slot, HDMI 2.0, MIPI DSI, MIPI CSI, WiFi 6, Bluetooth 5.4, PoE Expansion header, I2C, SPI, PWM, I2S, GPIO

Additional chips
PMIC for Multi-Core System;X-Powers;AXP223;;1;
Single Cell NVDC PMU w/E-gauge;X-Powers;AXP717;;1;
Low Capacitance TVS Diode Array;Leiditech;BTRD10A01;;2;
30V High Current Boost LED Driver;Silergy;SY7203;;1;
5V, 1A USB Power Distribution Switch;Silergy;SY6280AAC;;2;
2A, 1MHz Synchronous Step-Down Regulator;Silergy;SY8089A;;3;
3A, 500KHz Synchronous Step Down Regulator;Silergy;SY8113B;;1;
Over-Voltage Protection Load Switch w/ Surge Protection;Broadchip;BCT72901;;1;

Other

Default IP address: acquired via DHCP
the IP acquired via DHCP is used by 232 additional devices
of which 17 are Radxa devices
Default login user: root
Default login password: root
root:root credentials used by 27 additional devices
of which 0 are Radxa devices

3rd Party Firmware Support Android 13, Armbian
Retail
FCC approval date 14 August 2024
(Est.) release date January 2025
(Est.) initial retail price (in USD): $30
Country of manuf China
Radio 1
Radio1 module LB-LINK BL-M8800DS2
Radio1 module IF SDIO 3.0 (module)
Chip1 AIC AIC8800D80
Wireless interface OUI none specified
Antenna Connector Type U.FL
MIMO status 1x1:1
Wireless Standard IEEE 802.11a/b/g/n/ac/ax
802.11ax up to 287/600 Mbps
802.11ac up to 433 Mbps
802.11n up to 150/150 Mbps
802.11g up to 54 Mbps
802.11b up to 11 Mbps
802.11a up to 54 Mbps
WiFi Operating Frequency 2.4 or 5 GHz

For a list of all currently documented AIC chipsets with specifications, see AIC.
For a list of all currently documented Allwinner SoC's with specifications, see Allwinner.
Maxio not currently documented.

For a list of all currently documented Radxa devices with specifications, see Radxa.

287 Mbps - 1SS 2.4GHz 802.11ax (40MHz chan., 256-QAM),
600.5 Mbps - 1SS 5GHz 802.11ax (40MHz chan., 256-QAM) = AX900 class

Overview

"Cubie A5E V1.20", "radxa" and "2502" are on top of board.

See also: Radxa and List of SBCs

Hardware specification

Quad-core ARM (Cortex-A55) @1.8GHz +
Quad-core ARM (Cortex-A55) @1.4GHz +
XuanTie E906 RISC-V core @ 200MHz
• NPU: 2 TOPS @INT8
• Audio DSP: HIFI4 @ 600MHz
• GPU: Mali-G57 MC1 (OpenGL ES3.2, OpenCL 2.0);
• VPU (with 4K @60fps H265/H264 decoding)
  • Storage: 16MB (SPI) Flash
TF card (max.64GB)/MMC card slot
802.11abgn/ac/ax (1T1R) + BT 5.4 Combo SiP Module
  • Network: 2x GbE port
  • USB: 1x USB 3.0, 1x USB 2.0 (Type-C) OTG ports
  • PCI: 1x PCIe 2.0 M.2 (M-Key) slot
  • GPIO: 1x 40-pin headers
  • Power: 5V/4A via USB (Type-C)

Links of Interest

Pictures

User Images
