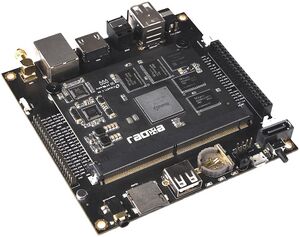

Radxa Rock2 Square
abgn+ac (AC600) | |
---|---|
Single Board Computer | |
Homepage | Product page |
3rd Party Firmware | |
dd-wrt | Status Unknown |
OpenWrt | Status Unknown |
Tomato any flavor | Incompatible |
Platform | |
Brand • Model • Rev | Radxa Rock2 Square Model A |
FCC ID | none specified |
Type | single-board computer |
CPU1 ![]() | Rockchip RK3288 |
CPU1 Type | ARM Cortex-A17 |
CPU1 Speed | 1.6 GHz ( 4 cores ) 32-bit |
Flash1 Chip | Toshiba THGBMBG7D2KBAIL |
Flash1 Size | 16 GiB 16,384 MiB <br />17,179,869,184 B <br />134,217,728 Kib <br />16,777,216 KiB <br />131,072 Mib <br /> |
RAM1 Size | 2 GiB 2,048 MiB <br />2,147,483,648 B <br />16,777,216 Kib <br />2,097,152 KiB <br />16,384 Mib <br /> |
RAM1 Chip | SK hynix H5TQ4G63AFR-PBC x 4 |
ETH chip1 | Rockchip RK3288 |
ETH chip2 | Realtek RTL8211E |
Ethernet Port Count | 1-1GbE-LAN |
Wired Standard | IEEE 802.3i/3u/3ab |
802dot11 OUI: none specified | |
Stock bootloader | U-Boot |
Stock FW OS | Linux 3.10.0 Debian 8 |
Expansion IF types | USB 2.0, USB 2.0 (OTG), SATA, Micro SD Card slot |
USB ports | 4 |
SD/MMC Slots | 1 |
SATA Ports | 1 |
USB Hub Compatible | Untested |
Power | 5 VDC, 3 A |
Connector type |
barrel 4 mm (OD) 1.7 mm (ID) 9.5 mm (LEN) |
Serial Port (UART) | yes, 4-pin header, populated, 3.3V TTL, (115200 8N1) |
Flags: | |
Additional chips | |
Other | |
Default IP address: acquired via DHCP | |
Retail | |
(Est.) release date | March 2015 |
(Est.) initial retail price (in USD): | $129 |
ASIN |
B00ZCDZYGA ![]() |
Country of manuf | China |
Radio 1 | |
Radio1 module | AMPAK AP6335 |
Radio1 module IF | SDIO 3.0 |
Chip1 | Broadcom BCM4339 |
Wireless interface OUI | none specified |
Antenna Connector Type | RP-SMA |
MIMO status | 1x1:1 |
Wireless Standard | IEEE 802.11a/b/g/n/ac |
802.11ac | up to 433 Mbps |
802.11n | up to 150 Mbps |
802.11g | up to 54 Mbps |
802.11b | up to 11 Mbps |
802.11a | up to 54 Mbps |
WiFi Operating Frequency | 2.4 or 5 GHz |
For a list of all currently documented Broadcom chipsets with specifications, see Broadcom.
For a list of all currently documented Realtek chipsets with specifications, see Realtek.
For a list of all currently documented Rockchip SoC's with specifications, see Rockchip.
For a list of all currently documented Radxa devices with specifications, see Radxa.
Overview
Hardware specification
- CPU: Rockchip RK3288 @1.6GHz
- Quad-core (ARM Cortex-A17)
- Memory: 2GB (SDRAM) DDR3
- Onboard Storage: 16GB (eMMC) flash
- TF card (max. 128GB)/MMC card slot
- SATA port
- Wi-Fi: AMPAK AP6335 (802.11abgn+ac)
- Network: 1x GbE ports
- USB: 3x USB 2.0, 1x USB 2.0 OTG
- GPIO: 1x 40-pin headers
- Power Source: 5V DC Jack
