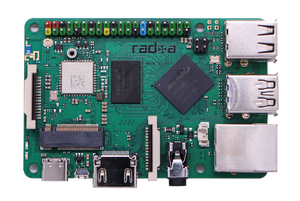

Radxa Rock 3C
From TechInfoDepot
Jump to navigationJump to search
| abgn+ac (AC600) | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single Board Computer | |||||||||||||||||||||
| Homepage | Product page | ||||||||||||||||||||
| 3rd Party Firmware | |||||||||||||||||||||
| dd-wrt | Status Unknown | ||||||||||||||||||||
| OpenWrt | Supported | ||||||||||||||||||||
| Tomato any flavor | Incompatible | ||||||||||||||||||||
| Gargoyle | Status Unknown | ||||||||||||||||||||
| Platform | |||||||||||||||||||||
| Brand • Model • Rev | Radxa Rock 3C | ||||||||||||||||||||
| FCC ID | none specified | ||||||||||||||||||||
| Type | single-board computer | ||||||||||||||||||||
| CPU1 | Rockchip RK3566 | ||||||||||||||||||||
| CPU1 Type | ARM Cortex-A55 | ||||||||||||||||||||
| CPU1 Speed | 1.6 GHz ( 4 cores ) 64-bit | ||||||||||||||||||||
| Flash1 Chip | Brand? Model? | ||||||||||||||||||||
| Flash1 Size | ? MiB (eMMC) | ||||||||||||||||||||
| RAM1 Size | 2 GiB 2,048 MiB <br />2,147,483,648 B <br />16,777,216 Kib <br />2,097,152 KiB <br />16,384 Mib <br /> (LPDDR4) | ||||||||||||||||||||
| RAM1 Chip | Brand? Model? | ||||||||||||||||||||
| ETH chip1 | Realtek RTL8211F | ||||||||||||||||||||
| Ethernet Port Count | 1-1GbE-LAN | ||||||||||||||||||||
| Wired Standard | IEEE 802.3i/3u/3ab | ||||||||||||||||||||
|
802dot11 OUI: none specified | |||||||||||||||||||||
| Stock bootloader | U-Boot | ||||||||||||||||||||
| Expansion IF types | eMMC, microSDXC, M.2 (M key), USB 2.0, USB 3.0, HDMI, BT 5 | ||||||||||||||||||||
| USB ports | 4 | ||||||||||||||||||||
| SD/MMC Slots | 1 | ||||||||||||||||||||
| M.2 Slots | 1 | ||||||||||||||||||||
| HDMI | 1 | ||||||||||||||||||||
| USB Hub Compatible | Untested | ||||||||||||||||||||
| Power | 5 VDC, ? A | ||||||||||||||||||||
| Connector type | USB (Type C) | ||||||||||||||||||||
|
Flags: | |||||||||||||||||||||
|
| |||||||||||||||||||||
| Other | |||||||||||||||||||||
|
| |||||||||||||||||||||
| 3rd Party Firmware Support |
OpenWrt • (List | Dev | DLs) | ||||||||||||||||||||
| Radio 1 | |||||||||||||||||||||
| Radio1 module | AzureWave AW-CM256SM | ||||||||||||||||||||
| Radio1 module IF | SDIO/UART | ||||||||||||||||||||
| Chip1 | Cypress CYW43455 | ||||||||||||||||||||
| Wireless interface OUI | none specified | ||||||||||||||||||||
| Antenna Connector Type | U.FL | ||||||||||||||||||||
| MIMO status | 1x1:1 | ||||||||||||||||||||
| Wireless Standard | IEEE 802.11a/b/g/n/ac | ||||||||||||||||||||
| 802.11ac | up to 433 Mbps | ||||||||||||||||||||
| 802.11n | up to 150/150 Mbps | ||||||||||||||||||||
| 802.11g | up to 54 Mbps | ||||||||||||||||||||
| 802.11b | up to 11 Mbps | ||||||||||||||||||||
| 802.11a | up to 54 Mbps | ||||||||||||||||||||
| WiFi Operating Frequency | 2.4 or 5 GHz | ||||||||||||||||||||
| |||||||||||||||||||||
For a list of all currently documented Cypress (Broadcom) chipsets with specifications, see Cypress.
For a list of all currently documented Realtek chipsets with specifications, see Realtek.
For a list of all currently documented Rockchip SoC's with specifications, see Rockchip.
For a list of all currently documented Radxa devices with specifications, see Radxa.
Flashing
| NOTE: During configuration or flashing a device, the only things that should be hooked to the device is the computer and power. |
Flashing OpenWrt
| Devices with Broadcom WiFi chipsets have limited OpenWrt supportability (due to limited FLOSS driver availability for Broadcom chips). Consider this when choosing a device to buy, or when deciding to flash OpenWrt on your device because it is listed as supported. See Broadcom WiFi for details. |
OpenWrt Target: rockchip
OpenWrt Subtarget: armv8
OpenWrt Package architecture: aarch64_generic
Support started version: 24.10.0
Current supported version: 24.10.2
OpenWrt Subtarget: armv8
OpenWrt Package architecture: aarch64_generic
Support started version: 24.10.0
Current supported version: 24.10.2
LAN Comment: Realtek RTL8211F Phy
WLAN Comment: WiFi not yet supported
Comment:
Versions with 1, 2 and 4GB RAM available
WLAN Comment: WiFi not yet supported
Comment:
Versions with 1, 2 and 4GB RAM available
Please insert instructions here
