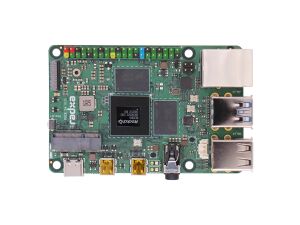

Radxa ROCK 5A
From TechInfoDepot
(Redirected from Radxa Rock 5A)
Jump to navigationJump to search
| Single Board Computer | |||||||||||||||||||||
|
| |||||||||||||||||||||
| Homepage | Product page | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3rd Party Firmware | |||||||||||||||||||||
| dd-wrt | Status Unknown | ||||||||||||||||||||
| OpenWrt | Supported | ||||||||||||||||||||
| Tomato any flavor | Incompatible | ||||||||||||||||||||
| Gargoyle | Status Unknown | ||||||||||||||||||||
| Platform | |||||||||||||||||||||
| Brand • Model • Rev | Radxa ROCK 5A | ||||||||||||||||||||
| Type | single-board computer | ||||||||||||||||||||
| CPU1 | Rockchip RK3588S | ||||||||||||||||||||
| CPU1 Type | ARM Cortex-A76 | ||||||||||||||||||||
| CPU1 Type2 | ARM Cortex-A55 | ||||||||||||||||||||
| CPU1 Speed | 2.2 GHz ( 4 cores ) | ||||||||||||||||||||
| CPU1 Speed2 | 1.8 GHz ( 4 cores ) | ||||||||||||||||||||
| Flash1 Chip | Brand? Model? | ||||||||||||||||||||
| Flash1 Size | ? MiB (SPI) | ||||||||||||||||||||
| RAM1 Size | 32 GiB 32,768 MiB <br />34,359,738,368 B <br />268,435,456 Kib <br />33,554,432 KiB <br />262,144 Mib <br /> (LPDDR4) | ||||||||||||||||||||
| RAM1 Chip | Brand? Model? | ||||||||||||||||||||
| ETH chip1 | Realtek RTL8211F | ||||||||||||||||||||
| Ethernet Port Count | 1-1GbE-LAN | ||||||||||||||||||||
| Wired Standard | IEEE 802.3i/3u/3ab | ||||||||||||||||||||
|
| |||||||||||||||||||||
| Stock bootloader | U-Boot | ||||||||||||||||||||
| Expansion IF types | M.2 (E key), USB 2.0, USB 3.0, HDMI, microSDXC, eMMC | ||||||||||||||||||||
| USB ports | 4 | ||||||||||||||||||||
| SD/MMC Slots | 1 | ||||||||||||||||||||
| M.2 Slots | 1 | ||||||||||||||||||||
| HDMI | 1 | ||||||||||||||||||||
| USB Hub Compatible | Untested | ||||||||||||||||||||
| Power | 20 VDC, 2 A | ||||||||||||||||||||
| Connector type | USB (Type C) | ||||||||||||||||||||
| Serial Port (UART) | yes, 3.3V TTL | ||||||||||||||||||||
|
| |||||||||||||||||||||
|
| |||||||||||||||||||||
| Other | |||||||||||||||||||||
|
| |||||||||||||||||||||
| 3rd Party Firmware Support |
OpenWrt • (List | Dev | DLs) | ||||||||||||||||||||
| |||||||||||||||||||||
For a list of all currently documented Realtek chipsets with specifications, see Realtek.
For a list of all currently documented Rockchip SoC's with specifications, see Rockchip.
For a list of all currently documented Radxa devices with specifications, see Radxa.
Flashing
| NOTE: During configuration or flashing a device, the only things that should be hooked to the device is the computer and power. |
Flashing OpenWrt
OpenWrt Target: rockchip
OpenWrt Subtarget: armv8
OpenWrt Package architecture: aarch64_generic
Support started version: 24.10.0
Current supported version: 24.10.5
OpenWrt Subtarget: armv8
OpenWrt Package architecture: aarch64_generic
Support started version: 24.10.0
Current supported version: 24.10.5
LAN Comment: Realtek RTL8211F Gbe Phy
WLAN Comment: WLAN dependent on M.2 installed
Comment:
Versions with 4, 8, 16 and 32GB RAM available
WLAN Comment: WLAN dependent on M.2 installed
Comment:
Versions with 4, 8, 16 and 32GB RAM available
Please insert instructions here
