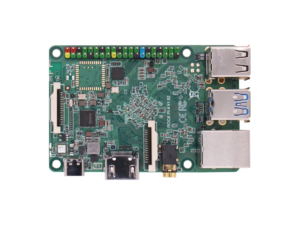

Radxa Rock Pi 4A (1GB)
| Single-board Computer | |||||||||||||||||
 | |||||||||||||||||
| Homepage | Product page | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Support | Support page | ||||||||||||||||
| 3rd Party Firmware | |||||||||||||||||
| dd-wrt | Incompatible | ||||||||||||||||
| OpenWrt | Partial Support | ||||||||||||||||
| Tomato any flavor | Incompatible | ||||||||||||||||
| Gargoyle | Status Unknown | ||||||||||||||||
| Platform | |||||||||||||||||
| Brand • Model • Rev | Radxa Rock Pi 4A (1GB) | ||||||||||||||||
| Type | single-board computer | ||||||||||||||||
CPU1  | Rockchip RK3399 | ||||||||||||||||
| CPU1 Type | ARM Cortex-A72 | ||||||||||||||||
| CPU1 Type2 | ARM Cortex-A53 | ||||||||||||||||
| CPU1 Speed | 1.8 GHz ( 2 cores ) | ||||||||||||||||
| CPU1 Speed2 | 1.4 GHz ( 4 cores ) | ||||||||||||||||
| Flash1 Chip | XTX Tech XT25F32BWOIG | ||||||||||||||||
| Flash1 Size | 4 MiB 4,194,304 B <br />32,768 Kib <br />4,096 KiB <br />32 Mib <br />0.00391 GiB <br /> (SPI) | ||||||||||||||||
| RAM1 Size | 1 GiB 1,024 MiB <br />1,073,741,824 B <br />8,388,608 Kib <br />1,048,576 KiB <br />8,192 Mib <br /> (LPDDR4 SDRAM) | ||||||||||||||||
| RAM1 Chip | SK hynix H9HCNNN4KUML-HRNME x 2 | ||||||||||||||||
| ETH chip1 | Rockchip RK3399 | ||||||||||||||||
| ETH chip2 | Realtek RTL8211E | ||||||||||||||||
| Ethernet Port Count | 1-1GbE-LAN | ||||||||||||||||
| Wired Standard | IEEE 802.3i/3u/3ab | ||||||||||||||||
|
| |||||||||||||||||
| Stock bootloader | U-Boot 2017.09 | ||||||||||||||||
| Stock FW OS | Linux 4.4.154 Ubuntu 20.04 | ||||||||||||||||
| Expansion IF types | USB 3.0, USB 2.0, Mini PCIe (NGFF M.2), Micro SD Card slot, eMMC module socket, HDMI 2.0 | ||||||||||||||||
| Mini PCIe slots | 1 | ||||||||||||||||
| USB ports | 4 | ||||||||||||||||
| SD/MMC Slots | 1 | ||||||||||||||||
| HDMI | 1 | ||||||||||||||||
| USB Hub Compatible | Untested | ||||||||||||||||
| Power | 9-20 VDC, 2 A | ||||||||||||||||
| Connector type | USB Female (Type-C) | ||||||||||||||||
| Serial Port (UART) | yes, 3.3V TTL, via GPIO header, (1500000 8N1) | ||||||||||||||||
|
Flags: | |||||||||||||||||
|
Additional chips | |||||||||||||||||
| Other | |||||||||||||||||
|
Default IP address: acquired via DHCP | |||||||||||||||||
| 3rd Party Firmware Support |
Android 9TV, Android 10, Armbian, LibreELEC, Manjaro ARM, DietPi, OpenWrt • (List | Dev | DLs) | ||||||||||||||||
| Retail | |||||||||||||||||
| (Est.) release date | November 2018 | ||||||||||||||||
| (Est.) initial retail price (in USD): | $39 | ||||||||||||||||
| UPC |
4038816107060 (UPC DB, On eBay) | ||||||||||||||||
| Country of manuf | China | ||||||||||||||||
| |||||||||||||||||
For a list of all currently documented Realtek chipsets with specifications, see Realtek.
For a list of all currently documented Rockchip SoC's with specifications, see Rockchip.
For a list of all currently documented Radxa devices with specifications, see Radxa.
Overview
Hardware specification
- CPU: Rockchip RK3399 Dual-Core ARM (Cortex-A72) @1.8GHz
- + Quad-Core ARM (Cortex-A53) @1.4GHz
- GPU: Mali-T864 (OpenGL ES3.1, OpenVG 1.1, OpenCL, DX11)
- VPU (with 4K VP9 and 4K 10-bit H265/H264 decoding)
- Memory: 1GB (SDRAM) LPDDR4
- Storage: 4MB SPI Flash, eMMC socket
- TF card (max.128GB)/MMC card
- Network: 1x Gigabit Ethernet port
- USB: 1x USB 3.0, 1x USB 3.0 (OTG), 2x USB 2.0 ports
- GPIO: 1x 40-pin headers
- Power Source: USB Type-C (supporting USB PD 2.0)
- and Qualcomm Quick Charge 3.0
Links of Interest
- RK3399 Raspberry Pi clone will launch at $39 on LinuxGizmos
- Rock Pi 4 Raspberry Pi Compatible RK3399 Board on CNX|Software
Flashing
 | NOTE: During configuration or flashing a device, the only things that should be hooked to the device is the computer and power. |
Flashing OpenWrt
 | This device is NOT RECOMMENDED for future use with OpenWrt due to low flash/ram. DO NOT BUY DEVICES WITH 4MB FLASH / 32MB RAM if you intend to flash an up-to-date and secure OpenWrt version onto it! See 4/32 warning for details. |
| This device does not have sufficient resources (flash and/or RAM) to provide secure and reliable operation. This means that even setting a password or changing simple network settings might not be possible any more, rendering the device effectively useless. See OpenWrt on 4/32 devices what you can do now. |
| OpenWrt support for this device has ended in 2022. 19.07.10 was the last official build for 4/32 devices. |
Subtarget: armv8
Package architecture: aarch64_generic
Supported Since Commit
Support started version: 21.02.0
Current supported version: 25.12.1
Wifi 5GHz, Bluetooth
WLAN Hardware: unknown
Installation method(s):
SD card, see git-commit
Recovery method(s):
SD card, unknown
Comment:
1, 2, 4, 8GB versions available. eMMC modules from 8-128GB
| git • >> |
|---|
rockchip: add support for Radxa Rock Pi 4
This adds basic support for Radxa Rock Pi 4
Specification:
- RAM: 1 GB/ 2 GB/4 GB LPDDR4
- SoC: Rockchip RK3399
- CPU: 64bit hexa core processor
Dual Cortex-A72, freqency 1.8Ghz
with quad Cortex-A53, frequency 1.4Ghz
- USB: USB 3.0 OTG x1
hardware switch for host/device switch, upper one
USB 3.0 HOST x1
dedicated USB3.0 channel, lower one
USB 2.0 HOST x2
- Ethernet: 1x GbE
- Storage: eMMC module
uSD card
M.2 SSD
- Wireless: 802.11 ac wifi
Bluetooth 5.0
currently not supported
firmware Installation
======================
gzip -d xxx.img.gz, then dd the .img to SD/eMMC
======================
Device Tested: ROCK PI 4 Model B v1.3
|
