Radxa Rock Pi CM3 (D4E32W2)
abgn+ac (N150) | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ROCK3 Compute Module | |||||||||||||||||
Homepage | Product page | ||||||||||||||||
3rd Party Firmware | |||||||||||||||||
dd-wrt | Status Unknown | ||||||||||||||||
OpenWrt | Status Unknown | ||||||||||||||||
Tomato any flavor | Incompatible | ||||||||||||||||
Platform | |||||||||||||||||
Brand • Model • Rev | Radxa Rock Pi CM3 RM116 V1.3 | ||||||||||||||||
Model Part Number | D4E32W2 | ||||||||||||||||
FCC ID | 2A3PA-RADXA-CM3 | ||||||||||||||||
Type | SoM | ||||||||||||||||
CPU1 ![]() | Rockchip RK3566 | ||||||||||||||||
CPU1 Type | ARM Cortex-A55 | ||||||||||||||||
CPU1 Speed | 1.8 GHz ( 4 cores ) 64-bit | ||||||||||||||||
GPU | Mali -G52 | ||||||||||||||||
GPU Type | ARM | ||||||||||||||||
Flash1 Chip | Foresee FSE1ASLD-32G | ||||||||||||||||
Flash1 Size | 32 GiB 32,768 MiB <br />34,359,738,368 B <br />268,435,456 Kib <br />33,554,432 KiB <br />262,144 Mib <br /> (eMMC 5.1) | ||||||||||||||||
RAM1 Size | 4 GiB 4,096 MiB <br />4,294,967,296 B <br />33,554,432 Kib <br />4,194,304 KiB <br />32,768 Mib <br /> (LPDDR4 SDRAM) | ||||||||||||||||
RAM1 Chip | SK hynix H9HCNNNCPMML-XRNEE | ||||||||||||||||
ETH chip1 | Rockchip RK3566 | ||||||||||||||||
ETH chip2 | Realtek RTL8211F | ||||||||||||||||
Ethernet Port Count | 1-1GbE-LAN | ||||||||||||||||
Wired Standard | IEEE 802.3i/3u/3ab | ||||||||||||||||
802dot11 OUI: none specified | |||||||||||||||||
Expansion IF types | none specified | ||||||||||||||||
Power | 5 VDC, ? A | ||||||||||||||||
Flags: | |||||||||||||||||
Additional chips | |||||||||||||||||
| |||||||||||||||||
Retail | |||||||||||||||||
FCC approval date | 09 December 2021 | ||||||||||||||||
(Est.) release date | November 2021 | ||||||||||||||||
(Est.) initial retail price (in USD): | $65 | ||||||||||||||||
Country of manuf | China | ||||||||||||||||
Radio 1 | |||||||||||||||||
Radio1 module | AzureWave AW-CM256SM | ||||||||||||||||
Radio1 module IF | SDIO 3.0 | ||||||||||||||||
Chip1 | Cypress CYW43455 | ||||||||||||||||
Wireless interface OUI | none specified | ||||||||||||||||
Antenna Connector Type | U.FL | ||||||||||||||||
MIMO status | 1x1:1 | ||||||||||||||||
Wireless Standard | IEEE 802.11a/b/g/n/ac | ||||||||||||||||
802.11ac | up to 433 Mbps | ||||||||||||||||
802.11n | up to 150 Mbps | ||||||||||||||||
802.11g | up to 54 Mbps | ||||||||||||||||
802.11b | up to 11 Mbps | ||||||||||||||||
802.11a | up to 54 Mbps | ||||||||||||||||
WiFi Operating Frequency | 2.4 or 5 GHz | ||||||||||||||||
| |||||||||||||||||
|
For a list of all currently documented Cypress (Broadcom) chipsets with specifications, see Cypress.
For a list of all currently documented Realtek chipsets with specifications, see Realtek.
For a list of all currently documented Rockchip SoC's with specifications, see Rockchip.
For a list of all currently documented Radxa devices with specifications, see Radxa.
- • 150 Mbps - 1SS 2.4GHz 802.11n (40MHz chan.) = N150 class
Overview

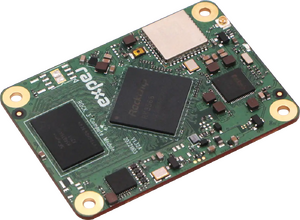

"ROCK 3 Compute Module V1.3" and "20220326"
- are silkscreened on board top.
Hardware specification
- CPU: Rockchip RK3566 Quad-Core @2.0GHz
- SoC: ARM (Cortex-A55); NPU: 0.8 TOPS
- GPU: Mali-G52 (OpenGL ES3.2, OpenCL 2.0)
- VPU (with 4K VP9 and 4K 10-bit H265/H264 decoding)
- Storage: 32GB (eMMC 5.1) Flash
- Memory: 4GB (LPDDR4) SDRAM
- Wi-Fi: Cypress CYW43455
- 802.11bgn+ac (1T1R), BT 4.2
- Network: 1x GbE port (via connectors)
- Power Source: 5V (via connectors)
Models
- Model: RM116-D1E0W, RM116-D2E8W, RM116-D4E16W, RM116-D8E16W, RM116-D8E32W
- Rock Pi Model Difference - EUT NAME: Radxa CM3 • FCC ID: 2A3PA-RADXA-CM3
- All the model are the same circuit and RF module, except model names.
Links of Interest
- Radxa CM3 – A drop-in Raspberry Pi CM4 alternative on CNX|Software
- Radxa CM3 is an RK3566-powered drop-in replacement for a Raspberry Pi CM4 on Liliputing
- Pine64 and Radxa's new Pi CM4-compatible boards on Jeff Geerling blog
