Radxa Wireless Module D8

From TechInfoDepot
Jump to navigationJump to search
abgn+ac+ax (AX900qam)
Wi-Fi 6 + BT 5.4 Combo Module
WikiDevi.wi-cat.ru Radxa Wireless Module D8
Platform
BrandModelRev Radxa Wireless Module D8 V2.0
Interface SDIO 3.0
Connector SD
Form factor module

ID:c8a1:0082 SS: c8a1:0182

FCCID none specified
Chip1 AIC AIC8800D80

OUI: none specified

Antenna Connection MHF4
MIMO status 1x1:1
Wireless Standards IEEE 802.11a/b/g/n/ac/ax
802.11ax up to 287/600 Mbps
802.11ac up to 433 Mbps
802.11n up to 150/150 Mbps
802.11g up to 54 Mbps
802.11b up to 11 Mbps
802.11a up to 54 Mbps
Operating Frequency 2.4 or 5 GHz
Other

Flags:
Wi-Fi 6, WPA3, HE80, Bluetooth 5.4 BLE

UART has accessible UART

Probable Linux driver
aic8800
(see also passys)

Retail
Country of manuf China

For a list of all currently documented AIC chipsets with specifications, see AIC.

For a list of all currently documented Radxa devices with specifications, see Radxa.

287 Mbps - 1SS 2.4GHz 802.11ax (40MHz chan., 256-QAM),
900 Mbps - 1SS 5GHz 802.11ax (40MHz chan., 256-QAM) = AX900 class

Overview

  • AIC AIC8800 D80 - SDIO 3.0: Wi-Fi, UART/PCM: BT 5.4
802.11ax 1T1R (1x1:1), Wi-Fi 6, MU-MIMO, BT 5.4 BLE

Models

Radxa
Wi-Fi 6 + BT 5.2 (M.2 Key A/E)

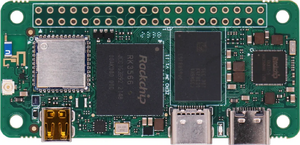

Radxa Zero 3W (D2E16H1W15)
