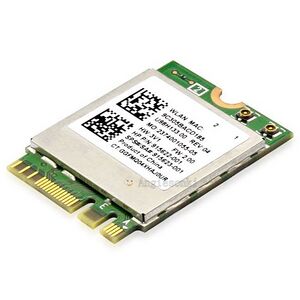

Realtek RTL8822BE Combo Module

multiple revisions of this device, use caution
abgn+ac (AC1200)
	802.11abgn/ac RTL8822BE Combo Module
Platform
Brand • Model • Rev	Realtek RTL8822BE Combo Module
Interface	USB 2.0
Connector	M.2 (Key A/E) v1.1
Form factor	2230
ID:10ec:b822 (3 addl. devices); Windows: USB\VID_10EC&PID_B822
FCCID	TX2-RTL8822BE
ICID	6317A-RTL8822BE
Chip1	Realtek RTL8822BE
	OUI: 90:32:4B (-, 1 W)
Antenna Connection	MHF4
MIMO status	2x2:2
Wireless Standards	IEEE 802.11a/b/g/n/ac
802.11ac	up to 867 Mbps
802.11n	up to 300/300 Mbps
802.11g	up to 54 Mbps
802.11b	up to 11 Mbps
802.11a	up to 54 Mbps
Operating Frequency	2.4 or 5 GHz
Other
Manuf/OEM/ODM	Foxconn U98H133 .00
	Flags:; Wave2, VHT80, MU-MIMO, Bluetooth 4.2
Probable Linux driver; rtw88 (in backports) (5.2+) ; or rtlwifi_new (4.2+); USB ID not yet observed in any mainline kernel /; this list (note: outdated); (see also passys)
Windows driver; see Realtek's website
Retail
Availability	reference design
FCC approval date	29 August 2016
Country of manuf	China
AzureWave AW-CB295NF	TX2-RTL8822BE
Unex DHYK-8822	TX2-RTL8822BE

For a list of all currently documented Realtek chipsets with specifications, see Realtek.

For a list of all currently documented Realtek device with specifications, see Realtek.

• 867 Mbps - 2SS 5GHz 802.11ac (80MHz chan.),

• 300 Mbps - 2SS 2.4GHz 802.11n (40MHz chan.) = AC1200 class

Overview

OEM: Foxconn (Hon Hai) U98H133.00

802.11abgn+ac 2T2R (2x2:2), Wave2, MU-MIMO, BT 4.2

802.11abgn/ac RTL8822BE Combo Module

FCC ID: TX2-RTL8822BE (2016-08-29)

IC: 6317A-RTL8822BE; 3.3V/0.5A

Lenovo IdeaPad S540-14IWL Touch (81QX),

S540-14IWL (81ND), S540-14API (81NH),

C340-15IWL (81N5), FLEX-15IWL (81SR)

HP TPN-Q217, HP HSN-I25C, HP HSN-Q17C-4

 Network controller [0280]: Realtek Semiconductor Co., Ltd.
 Device [10ec:b822] Subsystem: AzureWave Device [1a3b:2950]
 Kernel modules: r8822be

802.11ac WLAN/BT 4.2 Combo NGFF (M.2) Module

802.11ac 2T2R, Wave2, MU-MIMO, VHT80, BT 4.2

M.2 2230 (Key A/E), MHF4, PCIe (WiFi)/USB (BT)

Bluetooth 2.1/3.0 (EDR)/4.2 LE (MCU) (13d3:3531)

#ifdef CONFIG_RTL8822B
 {PCI_DEVICE(PCI_VENDER_ID_REALTEK, 0xB822), .driver_data = RTL8822B}

It includes the following drivers: rtl8188ee, r8822be,
