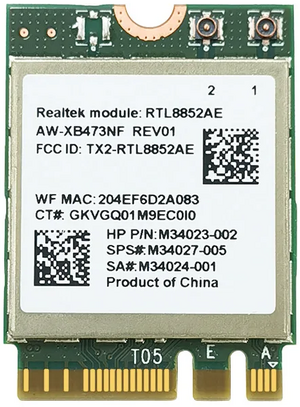

Realtek RTL8852AE Combo Module
From TechInfoDepot
Jump to navigationJump to searchabgn+ac+ax (AX1800) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| 802.11ax RTL8852AE Combo Module | |||||||||
| Platform | |||||||||
| Brand • Model • Rev |
Realtek RTL8852AE Combo Module | ||||||||
| Interface |
USB 2.0 | ||||||||
| Connector |
M.2 2.0 (Key A/E) | ||||||||
| Form factor |
2230 | ||||||||
| FCCID | |||||||||
| ICID | |||||||||
| Chip1 |
Realtek RTL8852AE | ||||||||
|
OUI: none specified | |||||||||
| Antenna Connection |
MHF4 | ||||||||
| MIMO status |
2x2:2 | ||||||||
| Wireless Standards |
IEEE 802.11a/b/g/n/ac/ax | ||||||||
| 802.11ax |
up to 574/1148 Mbps | ||||||||
| 802.11ac |
up to 867 Mbps | ||||||||
| 802.11n |
up to 300/300 Mbps | ||||||||
| 802.11g |
up to 54 Mbps | ||||||||
| 802.11b |
up to 11 Mbps | ||||||||
| 802.11a |
up to 54 Mbps | ||||||||
| Operating Frequency |
2.4 or 5 GHz | ||||||||
| Other | |||||||||
|
Flags: Wi-Fi 6, WPA3, MU-MIMO, HE80, Bluetooth 5.0 | |||||||||
| UART |
has accessible UART | ||||||||
Windows driver | |||||||||
| Retail | |||||||||
| Availability | reference design | ||||||||
| FCC approval date | 16 October 2020 | ||||||||
| Country of manuf | China | ||||||||
| |||||||||
For a list of all currently documented Realtek chipsets with specifications, see Realtek.
For a list of all currently documented Realtek device with specifications, see Realtek.
Overview
- Realtek#ax RTL8852AE - PCIe 2.0 (WLAN)/USB 2.0 (BT)/UART
- 802.11abgn+ac+ax 2T2R (2x2:2), Wi-Fi 6, MU-MIMO, BT 5.0
- Realtek RTL8852AE Combo Module (Wi-Fi 6, AX1800, 2T2R 2.4/5GHz, BT)
- 802.11ax RTL8852AE Combo Module (NGFF 2230, PCIe/USB, MHF4)
- FCC ID: TX2-RTL8852AE (2020-10-16) • IC ID: 6317A-RTL8852AE
- Wi-Fi Certified : WFA111371 (Download) (as of 04/19/2021)
