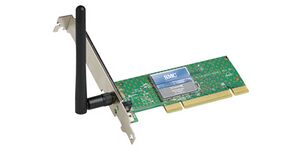

SMC SMCWPCI-G2

From TechInfoDepot
Jump to navigationJump to search
multiple revisions of this device, use caution
bg (G54)
EZ Connect g
802.11g Wireless PCI Adapter
Platform
BrandModelRev SMC SMCWPCI-G2
Interface PCI
Connector PCI
ID:168c:001d (5 addl. devices) SS: 1113:b203
Windows: PCI\VEN_168C&DEV_001D&SUBSYS_B2031113
FCCID RAXWN4201E
Chipset Atheros AR5007G
Chip1 Atheros AR2417

OUI: 00:22:2D (3 E, 5 W)

Antenna Connection RP-SMA
Wireless Standards IEEE 802.11b/g
802.11g up to 54 Mbps
802.11b up to 11 Mbps
Operating Frequency 2.4 GHz
Other
Manuf/OEM/ODM Arcadyan WN4201E

Windows driver
see ath-drivers.eu

Retail
FCC approval date 24 January 2008
UPC 662698707472
(UPC DB, On eBay)
ASIN B001AYGD0Q Flag of the United States.svg
Country of manuf China
 Chip1 brandChip2 brand
SMC SMCWPCI-G2Atheros
SMC SMCWPCI-GMRalinkRalink
SMC SMCWPCI-N2RalinkRalink
SMC SMCWPCI-N3Atheros
SMC SMCWPCI-N5Atheros
SMC SMCWPCIT-GAtheros

For a list of all currently documented Atheros (QCA) chipsets with specifications, see Atheros.

For a list of all currently documented SMC devices with specifications, see SMC.

54 Mbps - 2.4GHz 802.11g = G54 class

Overview

SMC Supplier Part No. 98-012084-689NA

"P/N: 141420110008J REV: 0C" is silkscreened on the board in the FCC photos.

"P/N: 141420110008J REV: 01A" is silkscreened on a production unit's board.

lspci -nnv dump

03:06.0 Ethernet controller [0200]: Atheros Communications Inc. AR2417 Wireless Network Adapter [AR5007G 802.11bg] [168c:001d] (rev 01)
        Subsystem: Accton Technology Corporation Device [1113:b203]
        Flags: bus master, medium devsel, latency 168, IRQ 22
        Memory at f9bf0000 (32-bit, non-prefetchable) [size=64K]
        Capabilities: [44] Power Management version 2
        Kernel driver in use: ath5k
        Kernel modules: ath5k

ath5k chipset info dump

ath5k: phy0: Atheros AR2417 chip found (MAC: 0xf0, PHY: 0x70)
