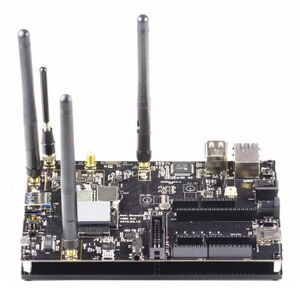

Samsung ARTIK™ 1020

multiple revisions of this device, use caution

abgn+ac (AC1200)
IoT board
Support	Support page
3rd Party Firmware
dd-wrt	Status Unknown
OpenWrt	Status Unknown
Tomato any flavor	Incompatible
Platform
Brand • Model • Rev	Samsung ARTIK 1020
FCC ID	A3LATKM102000
IC ID	649E-ATKM102000
Type	IoT board
CPU1	Samsung Exynos 5422
CPU1 Type	ARMv7 Cortex-A15
CPU1 Type2	ARMv7 Cortex-A7
CPU1 Speed	1.5 GHz ( 4 cores )
CPU1 Speed2	1.4 GHz ( 4 cores )
Flash1 Chip	Samsung KLMAG2GEAC-B002
Flash1 Size	16 GiB 16,384 MiB <br />17,179,869,184 B <br />134,217,728 Kib <br />16,777,216 KiB <br />131,072 Mib <br />
Flash2 Chip	STMicro S25PE10VP
Flash2 Size	128 KiB 0.125 MiB <br />131,072 B <br />1,024 Kib <br />1 Mib <br />1.220703e-4 GiB <br />
RAM1 Size	2 GiB 2,048 MiB <br />2,147,483,648 B <br />16,777,216 Kib <br />2,097,152 KiB <br />16,384 Mib <br />
RAM1 Chip	Samsung Model?
ETH chip1	Samsung Exynos 5422
ETH chip2	ASIX AX88760
Ethernet Port Count	1-100MbE-LAN
Wired Standard	IEEE 802.3i/3u
802dot11 OUI: EC:9B:F3 Ethernet OUI: 8E:4C:2E
Stock bootloader	U-Boot 2012.07
Stock FW OS	Linux 3.10.93 Fedora 22
Expansion IF types	USB 3.0, USB 2.0, Micro SD Card slot
USB ports	3
SD/MMC Slots	1
USB Hub Compatible	Untested
Power	5 VDC, 5 A
Connector type	barrel 5.5 mm (OD) 2.1 mm (ID)
Serial Port (UART)	yes, USB Female Micro-B, (115200 8N1)
JTAG Port	yes, 20-pin header, populated, J12
Flags: Bluetooth 4.1 LE, ZigBee, Z-Wave, MIPI DSI, I2C, GPIO, Micro HDMI 1.4, Audio 3.5mm out
Additional chips ZigBee SoC (32-bit ARM Cortex-M3);Silicon Labs;EM3587;;1; 2.4GHz ZigBee/Smart Energy FEM;SiGe (Skyworks);SE2432L;;1; Z-Wave SoC (ZM5304-U Module);Sigma Designs;SD3503A-CNE3;;1; Single-Chip SIGFOX RF Transceiver;Atmel;ATA8520D;;1; IoT Secure Element;Samsung;S3FV5RP;;1; USB to Serial UART;FTDI;FT232R;;1; Power Management IC;Samsung;S2MPS11B02;;1; 8-bit Bi-directional Voltage Translator;TI;TXS0108E;;3; I2C Controlled 3A Single Cell USB Charger;TI;BQ24296;;1; Dual P-Channel 30V MOSFET;Vishay Siliconix;Si4953ADY;;1; HDMI Companion Chip with I2C Level Shifting Buffer;TI;TPD12S016;;1;
Other
Default IP address: acquired via DHCP the IP acquired via DHCP is used by 213 additional devices of which 2 are Samsung devices Default login user: root Default login password: root root:root credentials used by 26 additional devices of which 2 are Samsung devices
Retail
FCC approval date	21 June 2016
(Est.) release date	February 2016
Country of manuf	Korea
Radio 1
Radio1 module	Samsung SWB-B80
Radio1 module IF	SDIO
Chip1	Broadcom BCM4354
Wireless interface OUI	EC:9B:F3
Antenna Connector Type	SMA
MIMO status	2x2:2
Wireless Standard	IEEE 802.11a/b/g/n/ac
802.11ac	up to 867 Mbps
802.11n	up to 300 Mbps
802.11g	up to 54 Mbps
802.11b	up to 11 Mbps
802.11a	up to 54 Mbps
WiFi Operating Frequency	2.4 or 5 GHz
CPU1 brand Radio1 chip1 brand Radio1 chip2 brand Samsung ARTIK™ 1020 Samsung Broadcom Samsung ARTIK™ 5 Samsung Broadcom Samsung ARTIK™ 710 Samsung Broadcom

ASIX not currently documented.
For a list of all currently documented Broadcom chipsets with specifications, see Broadcom.
For a list of all currently documented Samsung chipsets with specifications, see Samsung.

For a list of all currently documented Samsung device with specifications, see Samsung.

• 867 Mbps - 2SS 5GHz 802.11ac (80MHz chan.),

• 300 Mbps - 2SS 2.4GHz 802.11n (40MHz chan.) = AC1200 class

Overview

• On CNX-software
• On Linux Gizmos

• brcmfmac4354-sdio on GitHub

BCM4354WLCSP_A1 with iPA/eLNA

SEMCO SWB-B80 M3 module

SEMCO Wireless Combo Modules

SEMCO - SAMSUNG ELECTRO-MECHANICS COMPANY

• SWB-A05, SWB-A07, SWB-A21, SWB-A22, SWB-A31
• SWB-B10, SWB-B12, SWB-B14, SWB-B22, SWB-B23,

SWB-B30, SWB-B42, SWB-B80, SWB-B85, SWB-B85B

• SWB-M12, SWB-M14, SWB-M20, SWB-QC30H (QCA)
