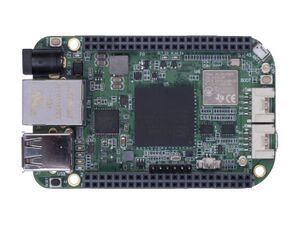

SeeedStudio BeagleBone Green Gateway
| bgn (N300) | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seeed Studio BeagleBone® Green Gateway Development Board | |||||||||||||||||
|
| |||||||||||||||||
| Homepage | Product page | ||||||||||||||||
| WikiDevi.wi-cat.ru | SeeedStudio BeagleBone Green Gateway | ||||||||||||||||
| 3rd Party Firmware | |||||||||||||||||
| dd-wrt | Status Unknown | ||||||||||||||||
| OpenWrt | Status Unknown | ||||||||||||||||
| Tomato any flavor | Incompatible | ||||||||||||||||
| Platform | |||||||||||||||||
| Brand • Model • Rev | SeeedStudio BeagleBone Green Gateway | ||||||||||||||||
| FCC ID | Z64-WL18SBMOD | ||||||||||||||||
| IC ID | 451I-WL18SBMOD | ||||||||||||||||
| Type | single-board computer | ||||||||||||||||
| CPU1 | Octavo Systems OSD3358 | ||||||||||||||||
| CPU1 Type | ARM Cortex-A8 | ||||||||||||||||
| CPU1 Speed | 1.0 GHz | ||||||||||||||||
| Flash1 Chip | Kingston EMMC04G-M627 | ||||||||||||||||
| Flash1 Size | 4 GiB 4,096 MiB <br />4,294,967,296 B <br />33,554,432 Kib <br />4,194,304 KiB <br />32,768 Mib <br /> | ||||||||||||||||
| RAM1 Size | 512 MiB 536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br /> | ||||||||||||||||
| RAM1 Chip | Octavo Systems OSD3358 | ||||||||||||||||
| ETH chip1 | SMSC LAN9512 | ||||||||||||||||
| Ethernet Port Count | 1-100MbE-LAN | ||||||||||||||||
| Wired Standard | IEEE 802.3i/3u | ||||||||||||||||
| Stock bootloader | U-Boot 2019.04 | ||||||||||||||||
| Stock FW OS | Linux 4.19.94 Debian 10 | ||||||||||||||||
| Expansion IF types | Micro SD Card slot | ||||||||||||||||
| SD/MMC Slots | 1 | ||||||||||||||||
| Power | 12 VDC, 1 A | ||||||||||||||||
| Connector type |
barrel 5.5 mm (OD) 2.5 mm (ID) 9.5 mm (LEN) | ||||||||||||||||
| Serial Port (UART) | yes, 6-pin header, populated, 3.3V TTL, (115200 8N1), | ||||||||||||||||
| JTAG Port | yes, 20-pad header, J14 | ||||||||||||||||
|
Flags: | |||||||||||||||||
|
Additional chips | |||||||||||||||||
| Other | |||||||||||||||||
|
Default IP address: acquired via DHCP | |||||||||||||||||
| Retail | |||||||||||||||||
| FCC approval date | 05 June 2019 | ||||||||||||||||
| (Est.) initial retail price (in USD): | $60 | ||||||||||||||||
| Country of manuf | China | ||||||||||||||||
| Radio 1 | |||||||||||||||||
| Radio1 module | Texas Instruments WL18MODGB | ||||||||||||||||
| Radio1 module IF | SDIO | ||||||||||||||||
| Chip1 | Texas Instruments WL1835MOD | ||||||||||||||||
| Wireless interface OUI | E0:62:34 | ||||||||||||||||
| Antenna Connector Type | U.FL | ||||||||||||||||
| MIMO status | 2x2:2 | ||||||||||||||||
| Wireless Standard | IEEE 802.11b/g/n | ||||||||||||||||
| 802.11n | up to 300 Mbps | ||||||||||||||||
| 802.11g | up to 54 Mbps | ||||||||||||||||
| 802.11b | up to 11 Mbps | ||||||||||||||||
| WiFi Operating Frequency | 2.4 GHz | ||||||||||||||||
| |||||||||||||||||
| |||||||||||||||||
For a list of all currently documented Octavo Systems SoC's with specifications, see Octavo Systems.
For a list of all currently documented Microchip (SMSC) chipsets with specifications, see Microchip.
For a list of all currently documented Texas Instruments (TI) chipsets with specifications, see Texas Instruments.
For a list of all currently documented SeeedStudio devices with specifications, see SeeedStudio.
- • 300 Mbps - 2SS 2.4GHz 802.11n (40MHz chan.) = N300 class
Overview
Specification
- CPU: Octavo Systems OSD3358 (ARM Cortex-A8) SiP
- Processor: TI Sitara AM3358 @1GHz (ARM Cortex-A8)
- FPU: NEON floating-point accelerator (ARM Cortex-M3)
- PRU: 2× 32-bit @200MHz programmable real-time units
- RAM: 512MB (DDR3), Flash: 4GB (8-bit eMMC) on-board
- USB: 2x USB 2.0 Type-A, 1x Micro USB 2.0 (OTG)
- Grove Connectors: 2x (One I2C and One UART)
- GPIO: 2x 46-pin headers
- Ethernet: 1x FE ports
- Power Source: 12V/1A DC via power jack or Micro-USB
Links of Interest
- Seeed Studio BeagleBone® Green Gateway on SeeedStudio Wiki
- BeagleBone Green Gateway SBC offers LAN and WiFi too on LinuxGizmos
- BeagleBone Green Gateway SBC on CNX|Software
