SeeedStudio BeagleBone Green Wireless
| bgn (N300) | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

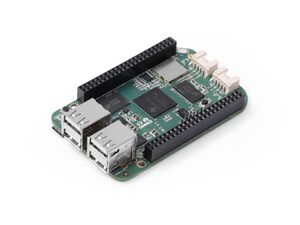

| Seeed Studio BeagleBone® Green Wireless Development Board | |||||||||||||||||
|  | |||||||||||||||||
| Homepage | Product page | ||||||||||||||||
| WikiDevi.wi-cat.ru | SeeedStudio BeagleBone Green Wireless | ||||||||||||||||
| 3rd Party Firmware | |||||||||||||||||
| dd-wrt | Status Unknown | ||||||||||||||||
| OpenWrt | Status Unknown | ||||||||||||||||
| Tomato any flavor | Incompatible | ||||||||||||||||
| Platform | |||||||||||||||||
| Brand • Model • Rev | SeeedStudio BeagleBoneGreen Wireless | ||||||||||||||||
| FCC ID | WS2-WG78SBV0 | ||||||||||||||||
| IC ID | 10462A-WG78SBV0 | ||||||||||||||||
| Type | single-board computer | ||||||||||||||||
| CPU1  | Texas Instruments Sitara AM3358 | ||||||||||||||||
| CPU1 Type | ARM Cortex-A8 | ||||||||||||||||
| CPU1 Speed | 1.0 GHz | ||||||||||||||||
| Flash1 Chip | Micron MTFC4GACAAAM-1MWT | ||||||||||||||||
| Flash1 Size | 4 GiB 4,096 MiB <br />4,294,967,296 B <br />33,554,432 Kib <br />4,194,304 KiB <br />32,768 Mib <br /> (eMMC) | ||||||||||||||||
| RAM1 Size | 512 MiB 536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br /> (DDR3L) | ||||||||||||||||
| RAM1 Chip | Micron MT41K256M16TW-107 | ||||||||||||||||
| Stock bootloader | U-Boot 2016.03 | ||||||||||||||||
| Stock FW OS | Linux 4.4.9-ti-r25 Debian 8 (Jessie) | ||||||||||||||||
| Expansion IF types | USB 2.0, MicroSD Card slot, Grove, GPIO | ||||||||||||||||
| USB ports | 4 | ||||||||||||||||
| SD/MMC Slots | 1 | ||||||||||||||||
| USB Hub Compatible | Untested | ||||||||||||||||
| Power | 5 VDC, 1 A | ||||||||||||||||
| Connector type | USB Female (Micro-B) | ||||||||||||||||
| Serial Port (UART) | yes, 6-pin header, 3.3V TTL, (115200 8N1) | ||||||||||||||||
| JTAG Port | yes, 20-pin header, unpopulated | ||||||||||||||||
| Flags: | |||||||||||||||||
| Additional chips | |||||||||||||||||
| Other | |||||||||||||||||
| Default SSID: BeagleBoneXXXXXX (1 addl. devices) | |||||||||||||||||
| Manuf/OEM/ODM | SeeedStudio | ||||||||||||||||
| Retail | |||||||||||||||||
| FCC approval date | 22 February 2016 | ||||||||||||||||
| (Est.) release date | May 2016 | ||||||||||||||||
| (Est.) initial retail price (in USD): | $45 | ||||||||||||||||
| ASIN | B01GFSDOTY  | ||||||||||||||||
| Country of manuf | China | ||||||||||||||||
| Radio 1 | |||||||||||||||||
| Radio1 module | Jorjin WG78V0 | ||||||||||||||||
| Radio1 module IF | SDIO (module) | ||||||||||||||||
| Chip1 | Texas Instruments WiLink 8 | ||||||||||||||||
| Wireless interface OUI | 2C:F7:F1 | ||||||||||||||||
| Antenna Connector Type | U.FL | ||||||||||||||||
| MIMO status | 2x2:2 | ||||||||||||||||
| Wireless Standard | IEEE 802.11b/g/n | ||||||||||||||||
| 802.11n | up to 300 Mbps | ||||||||||||||||
| 802.11g | up to 54 Mbps | ||||||||||||||||
| 802.11b | up to 11 Mbps | ||||||||||||||||
| WiFi Operating Frequency | 2.4 GHz | ||||||||||||||||
|
 | |||||||||||||||||
For a list of all currently documented Texas Instruments (TI) chipsets with specifications, see Texas Instruments.
For a list of all currently documented SeeedStudio devices with specifications, see SeeedStudio.
- • 300 Mbps - 2SS 2.4GHz 802.11n (40MHz chan.) = N300 class
Overview
Specification
- Processor: TI Sitara AM3358BZCZ100 @1GHz (ARM Cortex-A8)
- CPU Supports: NEON floating-point & 3D graphics accelerator
- RAM: Micron 512MB DDR3L, Flash Storage: Micron 4GB eMMC
- USB Host: 1x Micro USB, Supports powering & communications
- Grove Connectors: 2x (One I2C and One UART)
- GPIO: 2x 46-pin headers
- WiFi: 802.11 b/g/n & Bluetooth 4.1 LE
