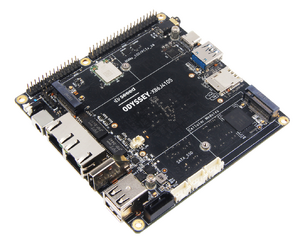

SeeedStudio Odyssey X86J4105

abgn+ac (AC1200)
Mini PC with Arduino Compatible MCU
3rd Party Firmware
dd-wrt	Status Unknown
OpenWrt	Status Unknown
Tomato any flavor	Incompatible
Platform
Brand • Model • Rev	SeeedStudio Odyssey X86J4105 864
FCC ID	none specified
Type	single-board computer
CPU1	Intel Celeron J4105
CPU1 Speed	1.5 GHz ( 4 cores )
CPU2	Microchip ATSAMD21G18
CPU2 Speed	48 MHz
Flash1 Chip	SanDisk SDINBDA4-64G
Flash1 Size	64 GiB 65,536 MiB <br />68,719,476,736 B <br />536,870,912 Kib <br />67,108,864 KiB <br />524,288 Mib <br />
Flash2 Chip	Microchip ATSAMD21G18
Flash2 Size	256 KiB 0.25 MiB <br />262,144 B <br />2,048 Kib <br />2 Mib <br />2.441406e-4 GiB <br />
RAM1 Size	8 GiB 8,192 MiB <br />8,589,934,592 B <br />67,108,864 Kib <br />8,388,608 KiB <br />65,536 Mib <br />
RAM1 Chip	Brand? Model?
RAM2 Size	32 KiB 0.0313 MiB <br />32,768 B <br />256 Kib <br />0.25 Mib <br />3.051758e-5 GiB <br />
RAM2 Chip	Microchip ATSAMD21G18
ETH chip1	Intel i211-AT
ETH chip2	Intel i211-AT
Ethernet Port Count	2-1GbE-LAN
Wired Standard	IEEE 802.3i/3u/3ab
802dot11 OUI: 34:7D:F6 Ethernet OUI: 00:E0:4C (11 E, 22 W)
Expansion IF types	SATA 3.0, Mini PCIe (M.2), USB 3.1, USB 2.0, Micro SD Card slot, SIM Card slot
SIM Card slot	1
Mini PCIe slots	2
USB ports	4
SD/MMC Slots	1
SATA Ports	1
USB Hub Compatible	Untested
Power	12-19 VDC, 2 A
Connector type	barrel 5.5 mm (OD) 2.1 mm (ID) 9.5 mm (LEN)
Flags: HDMI 2.0a, DisplayPort, RTC w/ battery, Micro SD Card slot, SIM Card slot, Audio in/out (3.5mm), Bluetooth 5.0, TPM, Arduino expansion, GPIO
Retail
(Est.) release date	February 2020
(Est.) initial retail price (in USD):	$218
ASIN	B089QLQXJM
Country of manuf	China
Radio 1
Radio1 module	Intel Dual Band Wireless-AC 9560 (9560D2W)
Radio1 module IF	NGFF (module)
Chip1	Intel L716NA02
Wireless interface OUI	34:7D:F6
Antenna Connector Type	MHF4
MIMO status	2x2:2
Wireless Standard	IEEE 802.11a/b/g/n/ac
802.11ac	up to 867 Mbps
802.11n	up to 300 Mbps
802.11g	up to 54 Mbps
802.11b	up to 11 Mbps
802.11a	up to 54 Mbps
WiFi Operating Frequency	2.4 or 5 GHz

For a list of all currently documented Intel chipsets with specifications, see Intel.
For a list of all currently documented Intel Celeron SoC's with specifications, see Intel Celeron.
For a list of all currently documented Microchip (SMSC) chipsets with specifications, see Microchip.

For a list of all currently documented SeeedStudio device with specifications, see SeeedStudio.

• 867 Mbps - 2SS 5GHz 802.11ac (80MHz chan.),

• 300 Mbps - 2SS 2.4GHz 802.11n (40MHz chan.) = AC1200 class

Overview

See also: SeeedStudio and List of SBCs

Hardware specification

• CPU: Intel Celeron J4105

Quad-core @1.5GHz (Turbo @2.5GHz)

GPU: Intel UHD Graphics 600 (4K UHD, Full HD)

• Coprocessor: Microchip ATSAMD21G18 (ARM Cortex M0+)
• Memory: 8GB SDRAM (LPDDR4)
• Onboard Storage: 64 GiB eMMC flash,

TF card (max.128GB)/MMC card slot

• Wi-Fi: Intel 802.11abgn/ac, Bluetooth 5.0
• Network: 2x GbE LAN ports
• USB: 1x USB 3.1 Type-A, 1x USB 3.1 Type-C, 2x USB 2.0 ports
• PCI: 1x M.2 (Key B), 1x M.2 (Key M)
• GPIO: 1x 40-pin headers, 1x 28-pin Arduino headers
• Power Source: DC Jack 12-19V

or USB Type-C 5-12V
