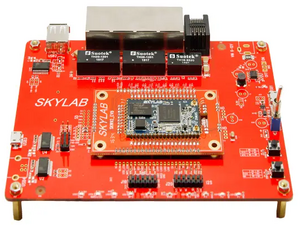

Skylab SKW92A EVB E16
From TechInfoDepot
Jump to navigationJump to search
| bgn (N300) | |
|---|---|
| Single Board Computer | |
 | |
| Homepage | Product page |
| 3rd Party Firmware | |
| dd-wrt | Status Unknown |
| OpenWrt | Supported |
| Tomato any flavor | Incompatible |
| Gargoyle | Status Unknown |
| Platform | |
| Brand • Model • Rev | Skylab KW92A EVB E16 |
| FCC ID | none specified |
| Type | single-board computer |
CPU1  | MediaTek MT7628NN |
| CPU1 Type | MIPS 24KEc |
| CPU1 Speed | 580 MHz |
| Flash1 Chip | Brand? Model? |
| Flash1 Size | 16 MiB 16,777,216 B <br />131,072 Kib <br />16,384 KiB <br />128 Mib <br />0.0156 GiB <br /> |
| RAM1 Size | 64 MiB 67,108,864 B <br />524,288 Kib <br />65,536 KiB <br />512 Mib <br />0.0625 GiB <br /> |
| RAM1 Chip | Brand? Model? |
| ETH chip1 | MediaTek MT7628NN |
| Switch | MediaTek MT7628NN |
| Ethernet Port Count |
1-100MbE-WAN 4-100MbE-LAN |
| Wired Standard | IEEE 802.3i/3u |
|
802dot11 OUI: none specified | |
| Stock bootloader | U-Boot |
| Expansion IF types | USB 2.0 |
| USB ports | 2 |
| USB Hub Compatible | Untested |
| Power | 3.3 VDC, 0.85 A |
| Connector type | µUSB (power) |
| Serial Port (UART) | yes, (57600 8N1) |
|
| |
|
| |
| Other | |
|
| |
| 3rd Party Firmware Support |
OpenWrt • (List | Dev | DLs) |
| Radio 1 | |
| Chip1 | MediaTek MT7628NN |
| Wireless interface OUI | none specified |
| Antenna Connector Type | none specified |
| MIMO status | 2x2:2 |
| Wireless Standard | IEEE 802.11b/g/n |
| 802.11n | up to 300 Mbps |
| 802.11g | up to 54 Mbps |
| 802.11b | up to 11 Mbps |
| WiFi Operating Frequency | 2.4 GHz |
For a list of all currently documented MediaTek chipsets with specifications, see MediaTek.
For a list of all currently documented Skylab devices with specifications, see Skylab.
- • 300 Mbps - 2SS 2.4GHz 802.11n (40MHz chan.) = N300 class
Flashing
 | NOTE: During configuration or flashing a device, the only things that should be hooked to the device is the computer and power. |
Flashing OpenWrt
 | This device is NOT RECOMMENDED for future use with OpenWrt due to low flash/ram.
DO NOT BUY DEVICES WITH 8MB FLASH / 64MB RAM if you intend to flash an up-to-date and secure OpenWrt version onto it! See 8/64 warning for details. This device does not have sufficient resources (flash and/or RAM) to provide secure and reliable operation. This means that you will not be able to install many packages, and that you might experience crashes due to OOM situations more or less often. See OpenWrt on 8/64 devices what you can do now. |
Target: ramips
Subtarget: mt76x8
Package architecture: mipsel_24kc
Supported Since Commit
Support started version: 19.07.0
Current supported version: 25.12.2
Subtarget: mt76x8
Package architecture: mipsel_24kc
Supported Since Commit
Support started version: 19.07.0
Current supported version: 25.12.2
LAN Hardware: MediaTek MT7628NN
WLAN Hardware: MediaTek MT7628NN
WLAN Comment: 2x2:2 MIMO
Installation method(s):
U-Boot TFTP + serial recovery, see git-commit
Recovery method(s):
U-Boot TFTP + serial recovery, see git-commit
WLAN Hardware: MediaTek MT7628NN
WLAN Comment: 2x2:2 MIMO
Installation method(s):
U-Boot TFTP + serial recovery, see git-commit
Recovery method(s):
U-Boot TFTP + serial recovery, see git-commit
| git • >> |
|---|
ramips: add support for Skylab SKW92A in EVB Specifically, SKW92A_E16, described here: http://www.skylabmodule.com/wp-content/uploads/SkyLab_SKW92A_V1.04_datasheet.pdf Specification: - MediaTek MT7628N/N (580 Mhz) - 64 MB of RAM - 16 MB of FLASH - 2T2R 2.4 GHz - 5x 10/100 Mbps Ethernet - 2x u.FL - Power by micro-USB connector at USB1 on EVB - UART via micro-USB connector at USB3 on EVB (57600 8n1) - 5x Ethernet LEDs - 1x WLAN LEDs - 1x WPS LED connected by jumper wire from I2S_CK on J20 to WPS_LED pin hole next to daughter board on EVB - WPS/Reset button (S2 on EVB) - RESET button (S1 on EVB) is *not* connected to RST hole next to daughter board Flash instruction: >From Skylab firmware: 1. Associate with SKYLAP_AP 2. In a browser, load: http://10.10.10.254/ 3. Username/password: admin/admin 4. In web admin interface: Administration / Upload Firmware, browse to sysupgrade image, apply, flash will fail with a message: Not a valid firmware. *** Warning: "/var/tmpFW" has corrupted data! 5. Telnet to 10.10.10.254, drops you into a root shell with no credentials 6. # cd /var 7. # mtd_write -r write tmpFW mtd4 Unlocking mtd4 ... Writing from tmpFW to mtd4 ... [e] 8. When flash has completed, you will have booted into your firmware. >From U-boot via TFTP and initramfs: 1. Place openwrt-ramips-mt76x8-skw92a-initramfs-kernel.bin on a TFTP server 2. Connect to serial console at USB3 on EVB 3. Connect ethernet between port 1 (not WAN) and your TFTP server (e.g. 192.168.11.20) 4. Start terminal software (e.g. screen /dev/ttyUSB0 57600) on PC 5. Apply power to EVB 6. Interrupt u-boot with keypress of "1" 7. At u-boot prompts: Input device IP (10.10.10.123) ==:192.168.11.21 Input server IP (10.10.10.3) ==:192.168.11.20 Input Linux Kernel filename (root_uImage) ==:openwrt-ramips-mt76x8-skw92a-initramfs-kernel.bin 8. Move ethernet to port 0 (WAN) on EVB 9. At new OpenWrt console shell, fetch squashfs-sysupgrade image and flash with sysupgrade. >From U-boot via TFTP direct flash: 1. Place openwrt-ramips-mt76x8-skw92a-squashfs-sysupgrade.bin on a TFTP server 2. Connect to serial console at USB3 on EVB (57600 8N1) 3. Connect ethernet between port 1 (not WAN) an your TFTP server (e.g. 192.168.11.20) 4. Start terminal software (e.g. screen /dev/ttyUSB0 57600) on PC 5. Apply power to EVB 6. Interrupt u-boot with keypress of "2" 7. At u-boot prompts: Warning!! Erase Linux in Flash then burn new one. Are you sure?(Y/N) Y Input device IP (10.10.10.123) ==:192.168.11.21 Input server IP (10.10.10.3) ==:192.168.11.20 Input Linux Kernel filename (root_uImage) ==:openwrt-ramips-mt76x8-skw92a-squashfs-sysupgrade.bin 8. When transfer is complete or as OpenWrt begins booting, move ethernet to port 0 (WAN). |
