Sophos SG 135w rev 2

From TechInfoDepot
Jump to navigationJump to search
abgn+ac (AC1750)
Sophos SG 135w UTM Firewall

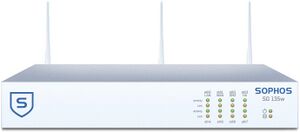

Sophos SG 135w rev 2 01.jpg
Support Support page
WikiDevi.wi-cat.ru Sophos SG 135w rev 2
3rd Party Firmware
dd-wrt Status Unknown
OpenWrt Supported
Tomato any flavor Incompatible
Gargoyle Status Unknown
Platform
BrandModelRev Sophos SG 135w rev 2
FCC ID RYK-WPEA352ACN
Board ID 4BL01150B2X10
Type security appliance
CPU1 ☒N Intel Atom C2538
CPU1 Type x86-64
CPU1 Speed 2.4 GHz ( 4 cores )
Flash1 Chip Macronix MX25L6406EM2I-12G
Flash1 Size 8 MiB8,388,608 B <br />65,536 Kib <br />8,192 KiB <br />64 Mib <br />0.00781 GiB <br />
RAM1 Size 4 GiB 4,096 MiB <br />4,294,967,296 B <br />33,554,432 Kib <br />4,194,304 KiB <br />32,768 Mib <br /> (DDR3 DIMM)
RAM1 Chip Apacer Model?
RAM2 Size 2 GiB 2,048 MiB <br />2,147,483,648 B <br />16,777,216 Kib <br />2,097,152 KiB <br />16,384 Mib <br /> (DDR3 DIMM)
RAM2 Chip Apacer
ETH chip1 Intel Atom C2538
ETH chip2 Marvell 88E1543
ETH chip3 Intel WGI211AT
ETH chip4 Intel WGI211AT
ETH chip5 Intel WGI211AT
ETH chip6 Intel WGI211AT
Ethernet Port Count 1-1GbE-WAN7-1GbE-LAN
Wired Standard IEEE 802.3i/3u/3ab

802dot11 OUI: none specified
Ethernet OUI: 00:1A:8C (15 E, 5 W)

Stock bootloader Bios American Megatrends 5.6.5
Stock FW OS Linux 3.12.74 Sophos UTM 9.5
Expansion IF types Mini PCIe, USB 2.0, SATA 3.0
Mini PCIe slots 1
USB ports 2
SATA Ports 1
USB Hub Compatible Untested
Power 12 VDC, 3.33 A
Connector type barrel
5.5 mm (OD)
2.5 mm (ID)
Serial Port (UART) yes, console port, RJ45, (38400 8N1)
Flags:
RTC w/ battery, VGA out, power switch, metal case, heat sink, fan

Additional chips
PC I/O Controller;Nuvoton;NCT6776F;;1;
PCIe 2D VGA Chip;ASPEED Tech;AST1300;;1;
128Kbit SPI Serial EEPROM;Atmel;AT25128B;;1;
RS-232 Transceiver;Analog Devices;ADM213;;1;
FPGA;Lattice Semiconductor;LCMX02-1200UHC;;1;
2Kbit I2C 2-wire Serial EEPROM;Atmel;AT24C02D;;1;
128MB DDR3 SDRAM;Samsung;K4B1G1646G-BCK0;;1;
30V N-Channel NexFET Power MOSFET;TI;CSD17304Q3;;2;
30V N-Channel NexFET Power MOSFET;TI;CSD17505Q5A;;3;
Synchronous Buck NexFET Power Block;TI;CSD87330Q3D;;2;
Synchronous Buck NexFET Power Block;TI;CSD87350Q5D;;1;
4-lane 4-port PCIe Gen2 Switch;PLX Technology;PEX8605;;2;
3V-28V D-CAP Synchronous Buck Controller;TI;TPS53219A;;3;
4.5-18V 3A Synchronous Step-Down Converter;TI;TPS54326;;3;
Four Output Differential Buffer for PCIe;Renesas;ICS9DB403D;;1;
30V 18A P-Channel MOSFET;Exelliance MOS Corp;EMB20P03V;;1;
50A Synchronous Buck Gate Driver;International Rectifier;IR3551;;2;
40A Synchronous Buck Gate Driver;International Rectifier;IR3553;;1;
2A Linear Power Low Dropout Regulator;uPI Semiconductor;uP0105;;5;
Dual Output 3+2 Phase PWM Controller;International Rectifier;IR3570B;;2;

Other

Default IP address: 192.168.0.1
the IP 192.168.0.1 is used by 817 additional devices
of which 2 are Sophos devices

Manuf/OEM/ODM Nexcom DNB1150-PEX VER:B
3rd Party Firmware Support pfSense, OpenWrt • (List | Dev | DLs)
Retail
Availability End of Life
End of Life date 2020
(Est.) release date 07 July 2015
EAN 5054074000669
(UPC DB, On eBay)
ASIN B06X6JYYW2 Flag of US.svg
Country of manuf Taiwan
Radio 1
Radio1 module SparkLAN WPEA-352ACN
Radio1 module IF Mini PCIe
Chip1 Qualcomm Atheros QCA9880
Wireless interface OUI none specified
Antenna Connector Type U.FL, RP-SMA
MIMO status 3x3:3
Wireless Standard IEEE 802.11a/b/g/n/ac
802.11ac up to 1300 Mbps
802.11n up to 450/450 Mbps
802.11g up to 54 Mbps
802.11b up to 11 Mbps
802.11a up to 54 Mbps
WiFi Operating Frequency 2.4 or 5 GHz
 FCC ID
Sophos XG 125w rev 2RYK-WPEA352ACN
SparkLAN WPEA-352ACNRYK-WPEA352ACN

For a list of all currently documented Intel chipsets with specifications, see Intel.
For a list of all currently documented Intel Atom SoC's with specifications, see Intel Atom.
For a list of all currently documented Marvell chipsets with specifications, see Marvell.
For a list of all currently documented Qualcomm Atheros (QCA) chipsets with specifications, see Qualcomm Atheros.

For a list of all currently documented Sophos devices with specifications, see Sophos.

1300 Mbps - 3SS 5GHz 802.11ac (80MHz chan.),
450 Mbps - 3SS 2.4GHz 802.11n (40MHz chan.) = AC1750 class

Overview

Hardware specification

  • CPU: Intel Atom Quad-Core (@2.4GHz) x86-64
  • Memory: 6GB DDR3 (DIMM) RAM
  • Storage: 8MB CMOS Serial Flash,
64GB Transcend SSD
  • Network: 8x Gigabit Ethernet ports
  • WiFi: Qualcomm Atheros QCA9880 (802.11abgn/ac)
  • USB: 2x USB 2.0 ports
  • Power: 12V, 3.33A via barrel

Flashing

Flashing OpenWrt

On the OpenWrt ToH (techdata entry)
OpenWrt Target: x86
OpenWrt Subtarget: 64
OpenWrt Package architecture: x86_64
Support started version: 22.03.0
Current supported version: 24.10.0
LAN Comment:
4 x Intel WGI211AT. Marvell 88E1543
WLAN Comment:
Dual band WiFi 5 3T3R
Comment:
Memory can be upgraded to 16GB by adding/replacing DIMMs

Please insert instructions here

Pictures

Retail Images
User Images
