SparkLAN WNFQ-255ACN(BT)

abgn+ac (AC1200)
802.11ac Wi-Fi + Bluetooth M.2 Module
Homepage	Product page
Platform
Brand • Model • Rev	SparkLAN WNFQ-255ACN(BT)
Interface	M.2
Connector	M.2
Form factor	1630
ID:168c:003e (17 addl. devices) SS: 1dac:0255 Windows: PCI\VEN_168C&DEV_003E&SUBSYS_02551DAC
FCCID	RYK-WNFQ255ACNBT, PPD-QCNFA34AC
Chip1	Qualcomm Atheros QCA6174
OUI: 00:0E:8E (4 E, 38 W)
Antenna Connection	MHF4
MIMO status	2x2:2
Wireless Standards	IEEE 802.11a/b/g/n/ac
802.11ac	up to 867 Mbps
802.11n	up to 300/300 Mbps
802.11g	up to 54 Mbps
802.11b	up to 11 Mbps
802.11a	up to 54 Mbps
Operating Frequency	2.4 or 5 GHz
Other
Manuf/OEM/ODM	Lite-On WCBN804A
Flags: bluetooth 4.1
Probable Linux driver ath10k PCI ID first seen in kernel v4.0 (2015-04-12) (see also passys)
Windows driver possibly see ath-drivers.eu
Retail
FCC approval date	27 April 2016
Country of manuf	China
FCC ID Fenvi FV-K1200AC PPD-QCNFA34AC Foxconn T77H558.00 PPD-QCNFA34AC Qualcomm Atheros QCNFA34AC PPD-QCNFA34AC Rivet Networks Killer Wireless-AC 1525 PPD-QCNFA34AC

For a list of all currently documented Qualcomm Atheros (QCA) chipsets with specifications, see Qualcomm Atheros.

For a list of all currently documented SparkLAN device with specifications, see SparkLAN.

• 867 Mbps - 2SS 5GHz 802.11ac (80MHz chan.),

• 300 Mbps - 2SS 2.4GHz 802.11n (40MHz chan.) = AC1200 class

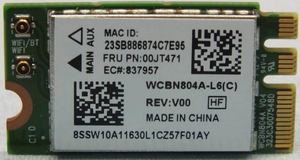

Overview

• FCC ID: RYK-WNFQ255ACNBT (2016-04-27)

802.11a/b/g/n/ac + BT 4.1 M.2 Type Card

• QCA Model: QCNFA34AC (NGFF M.2 1630 Key A/E)

FCC ID: PPD-QCNFA34AC (06/06/2014)

• Lenovo Yoga 3-1470 Laptop (Manual)

802.11a/b/g/n/ac + BT4.2 M.2 Type Card :

Qualcomm Atheros, Inc. Model: QCNFA34AC

Lite-On Model: WCBN804A-L6, WCBN805A-L6

OEM: Lite-On WCBN804A, Lite-On WCBN805A

Specifications

‧ Chipset: Qualcomm Atheros QCA6174 (MAC/BB/RF)

‧ Standard: 802.11abgn/ac 2T2R (867Mbps) MU-MIMO

‧ Interface: M.2 Card (PCIe: WLAN; USB 2.0: Bluetooth)

‧ Bluetooth: V 4.1, V 4.0 LE, V 3.0 + HS, V 2.1 + EDR

‧ Antenna: 2x IPEX MHF4 connector, 2T2R 867Mbps (MCS9)

‧ Enhanced wireless security: WEP, WPA, WPA2, 802.1x

‧ Concurrent Wi-Fi and BT co-existence, support Windows

See also

• SparkLAN WNFQ-158ACN(BT) - 802.11ac WiFi + BT M.2 Module

Qualcomm Atheros QCA9377, 1T1R; OEM: Lite-On WCBN806A

Lite-On WCBN604BH-L6, WCBN806A-S6 (FCC Label Sample)

• SparkLAN WNFQ-255ACN(BT) - 802.11ac WiFi + BT M.2 Module

Qualcomm Atheros QCA6174, 2T2R; OEM: Lite-On WCBN804A

• SparkLAN WNFQ-258ACN(BT) - 802.11ac WiFi + BT M.2 Module

Qualcomm Atheros QCA6174A-5, 2T2R; OEM: Lite-On WCBN807A
