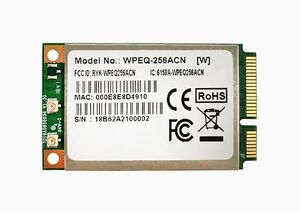

SparkLAN WPEQ-256ACN

From TechInfoDepot
Jump to navigationJump to search
multiple revisions of this device, use caution
abgn+ac (AC1200)
802.11ac/b/g/n Mini PCIe Module
Generic mini-pcie card icon.png
WikiDevi.wi-cat.ru SparkLAN WPEQ-256ACN
Platform
BrandModelRev SparkLAN WPEQ-256ACN
Interface Mini PCIe
Connector Mini PCIe
Form factor full-size
FCCID RYK-WPEQ256ACN
Chip1 Qualcomm Atheros QCA9892

OUI: none specified

Antenna Connection U.FL
MIMO status 2x2:2
Wireless Standards IEEE 802.11a/b/g/n/ac
802.11ac up to 867 Mbps
802.11n up to 300 Mbps
802.11g up to 54 Mbps
802.11b up to 11 Mbps
802.11a up to 54 Mbps
Operating Frequency 2.4 or 5 GHz
Other

Flags:
DFS (slave)

Additional chips
2.4/5GHz Front End Module;Skyworks;SE5516;SE5516, 4650499.1, 1811 MX;2;

Probable Linux driver
ath10k
(see also passys)

Windows driver
possibly see ath-drivers.eu

Retail
FCC approval date 26 February 2019
 Chip1 brandChip2 brand
SparkLAN WPEQ-256ACNQualcomm Atheros
SparkLAN WPEQ-256ACNIQualcomm Atheros

For a list of all currently documented Qualcomm Atheros (QCA) chipsets with specifications, see Qualcomm Atheros.

For a list of all currently documented SparkLAN devices with specifications, see SparkLAN.

867 Mbps - 2SS 5GHz 802.11ac (80MHz chan.),
300 Mbps - 2SS 2.4GHz 802.11n (40MHz chan.) = AC1200 class

Overview

"7016A0856034 V1.30" is silkscreened on the board in the FCC photos.

This FCC entry also covers the SparkLAN WPEQ-256ACNRBI
